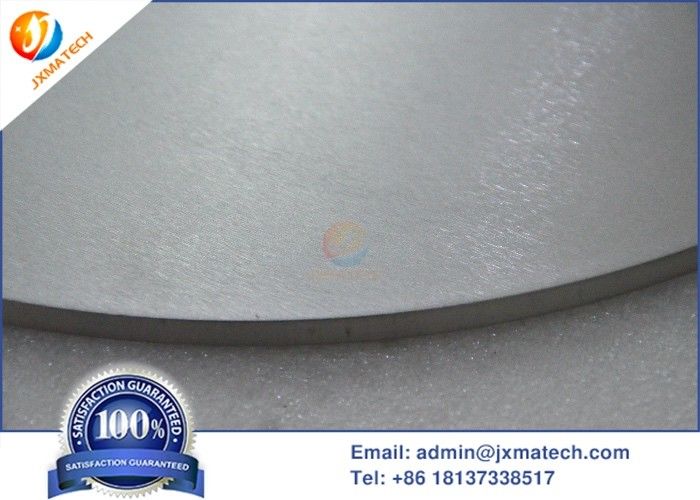

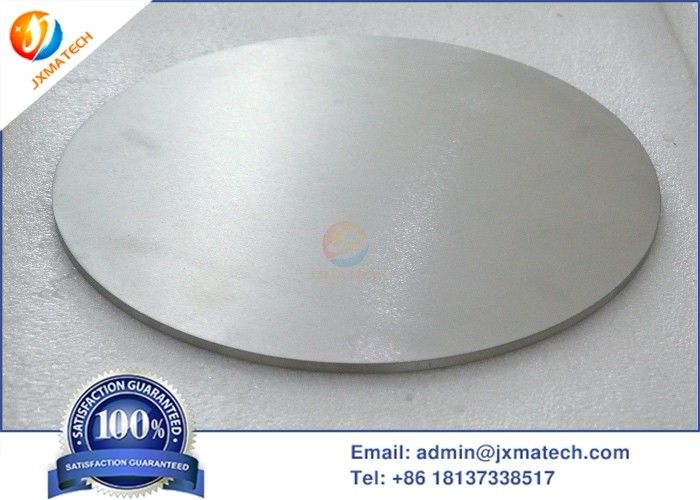

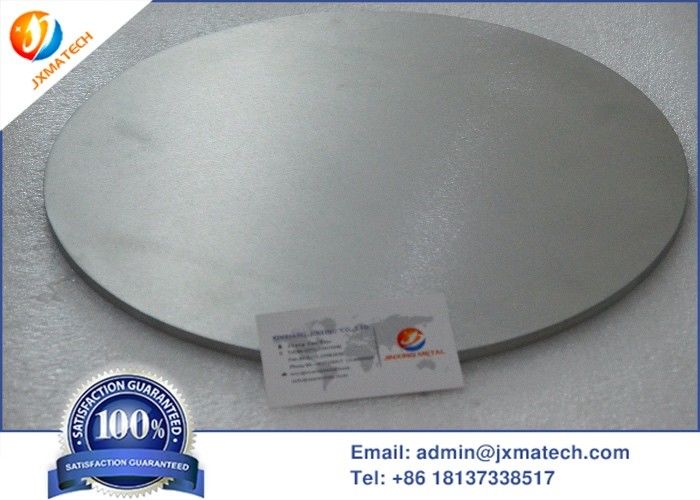

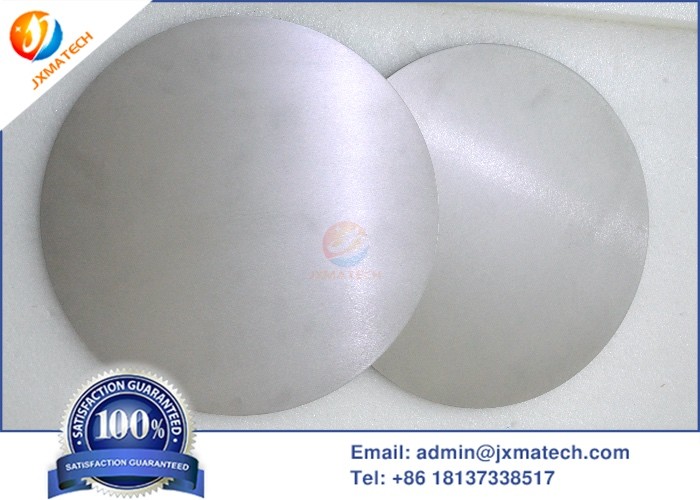

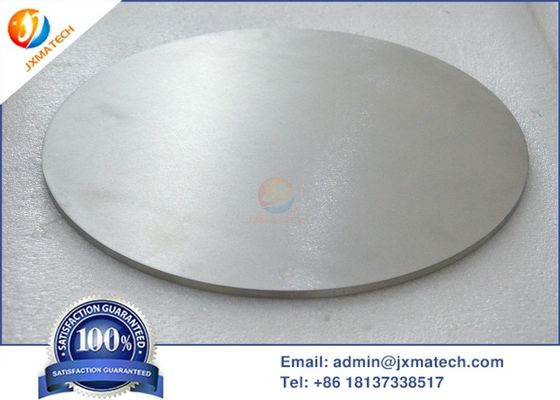

UNS R05400 Tantalum Disc 99.95%/99.99% With Excellent Corrosion Resistance
UNS R05400 Tantalum Disc 99.95%/99.99% With Excellent Corrosion Resistance UNS R05400 Tantalum Disc 99.95%/99.99% With Excellent Corrosion Resistance UNS R05400 Tantalum Disc 99.95%/99.99% With Excellent Corrosion Resistance UNS R05400 Tantalum Disc 99.95%/99.99% With Excellent Corrosion Resistance

UNS R05400 Tantalum Disc 99.95%/99.99% With Excellent Corrosion Resistance

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Tantalum Disc
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: 350~1000USD/kg
Packaging Details: Plywood case
Delivery Time: 10~25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000kg/M
Contact Now

Detail Information
Material: Tantalum, Ta2.5W, Ta10W Purity: 99.95% , 99.99%
Status: Annealed Or Annealed Process: Forged, Rolling
Density: 16.65g/cm3 Melt Range: 2996C
Electric Conductivity: 106/cm: 0.0761 CAS #: 7440-25-7
High Light:

non ferrous metal alloys

,

tungsten alloy wire

Product Description

Tantalum Disc UNS R05400 Purity 99.95%/99.99% high corrosion resistance

Description

UNS R05200 Tantalum Discs, Tantalum Alloy Disc, UNS R05400 Tantalum (Ta) Discs, Ta Alloy Tantalum Discs, AMS 5544 Tantalum Discs Exporters, AMS 5828 Ta Alloy Discs Manufactures, Tantalum (Ta) Discs . AMS 5708 Tantalum UNS R05255 Discs Stockists, Tantalum Alloy Cold Rolled Discs, Ta Alloy Hot Rolled Discs Distributors in China.

Product name Tantalum disc
dimension 8~500mm, thickness 0.5~20mm
Material TaW10 and Pure Ta
Tolerance According to GB standard or ASTM standard
Features Excellent corrosion resistance,good strength, impact toughness, plasticity, thermal conductivity and processing properties, so it is ideal chemical equipment structural material
Application Sputtering targets and Cathod



Tantalum is a sensible choice whenever high corrosion resistance is required. Even though tantalum is not one of the noble metals, it is comparable to them in terms of chemical resistance. In addition, tantalum is very easy to work at well below room temperature despite its bodycentered cubic crystal structure.

  • Tantalum Rod
  • Tantalum Sheet
  • Tantalum Tube
  • Tantalum Wire
  • Tantalum bolt and nut
  • Tantalum Crucible
  • Tantalum Foil
  • Tantalum Ring
  • Tantalum Sputtering target

Chemical Compositions

Chemistry ppm
Designation Main Contents Impurities maximum
Ta Nb Fe Si Ni W Mo Ti O C H N
Ta1 Remainder 300 40 30 20 40 40 20 150 40 15 20
Ta2 Remainder 800 100 100 50 200 200 50 200 100 15 100
TaNb3 Remainder <35000 100 100 50 200 200 50 200 100 15 100
TaNb20 Remainder

170000-

230000

 100 100 50 200 200 50 200 100 15 100
Ta2.5W Remainder 400 50 30 20 30000 60 20 150 50 15 60
Ta10W Remainder 400 50 30 20 110000 60 20 150 50 15 60



UNS R05400 Tantalum Disc 99.95%/99.99% With Excellent Corrosion Resistance 0
