Copper Molybdenum Products Heat Sink Excellent Hermeticity For Electronic Sealing

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Molybdenum Copper Alloy
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: 30~150USD/kg
Packaging Details: Plywood Case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: MoCu15~MoCu50 Standard: ASTM, AMS
Density: 9.54~10g/cm3 Other Name: Copper Molybdenum Heat Sinks
Application: Electronic Sealing Surface: Mirror Bright, Polished
High Light:

Copper Molybdenum Products Heat Sink

,

Molybdenum Heat Sink Excellent Hermeticity

,

Molybdenum Heat Sink For Electronic Sealing

Product Description

Molybdenum Copper Heat sink in electronic sealing 25.4mm, MoCu70/30 , MoCu85/15

  • Description

Product introduction:
- Molybdenum-copper alloy heat sink used in electronic sealing , similar to tungsten-copper alloy, also has compositional adjustability to have adjustable thermal conductivity and thermal expansion coefficient.
- Molybdenum-copper alloys have a lower density than tungsten-copper alloys but a higher coefficient of thermal expansion.



Type Mo Wt% Cu Wt% g/cm3 W/(M.K)
(10-6/K)
Mo85Cu15 85± 1 Balance 10 160 - 180 6.8
Mo80Cu20 801 Balance 9.9 170 - 190 7.7
Mo70Cu30 701 Balance 9.8 180 - 200 9.1
Mo60Cu40 601 Balance 9.66 210 - 250 10.3
Mo50Cu50 50 ±0.2 Balance 9.54 230 - 270 11.5



Advantages

  • High thermal conductivity
  • Excellent hermeticity
  • Excellent flatness, surface finish, and size control
  • Semi-finished or finished (Ni/Au plated) products available

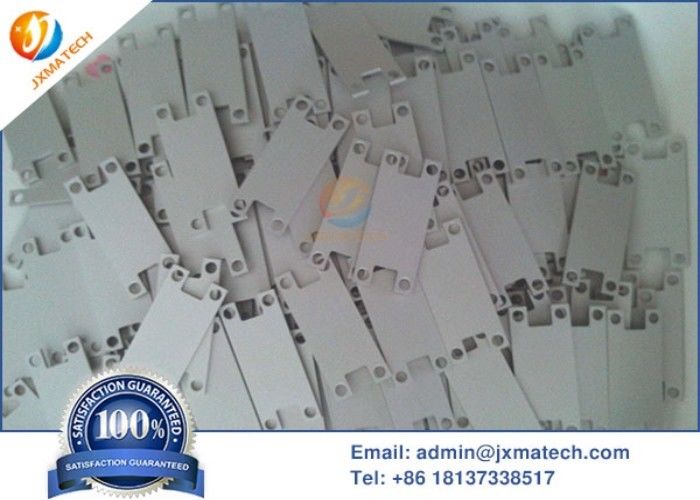

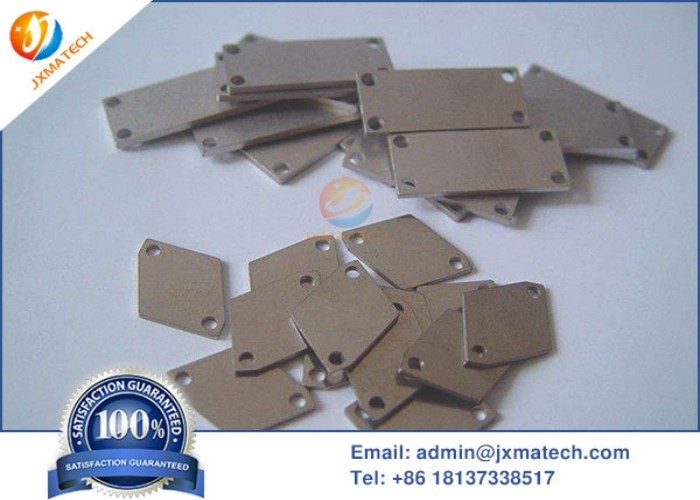

Copper Molybdenum Products Heat Sink Excellent Hermeticity For Electronic Sealing 0Copper Molybdenum Products Heat Sink Excellent Hermeticity For Electronic Sealing 1
