Hastelloy G30 Nickel Based Alloys Rod For Wet H3po4 Production And Processing
Hastelloy G30 Nickel Based Alloys Rod For Wet H3po4 Production And Processing Hastelloy G30 Nickel Based Alloys Rod For Wet H3po4 Production And Processing Hastelloy G30 Nickel Based Alloys Rod For Wet H3po4 Production And Processing

Hastelloy G30 Nickel Based Alloys Rod For Wet H3po4 Production And Processing

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Hastelloy Alloy G30
Payment & Shipping Terms:
Minimum Order Quantity: 50KGS
Price: 15~100USD/kg
Packaging Details: Plywood Case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000kgs/M
Contact Now

Detail Information
Material: UNS N06030 , DIN W. Nr. 2.4603 Surface: Pickled , Polished
Density: 8.22g/cm3 Melting Point: 1371ºC
Heat Treatment: Solution Annealed, Aged Size: Customized
Process: Forge Standard: ASTM, AMS
High Light:

ni based alloys

,

nickel based superalloys

Product Description

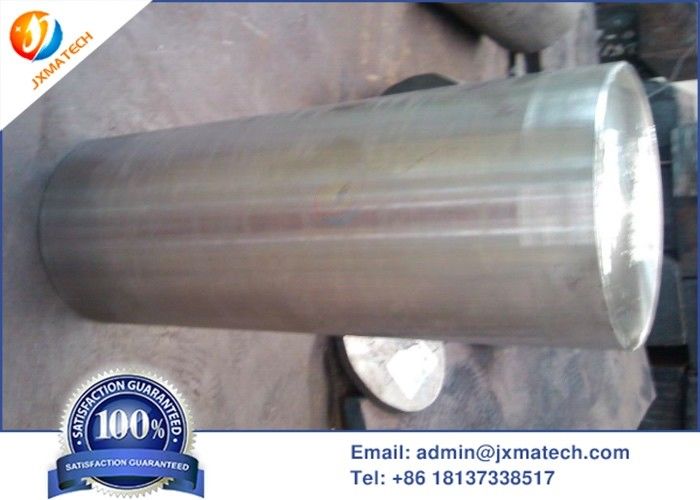

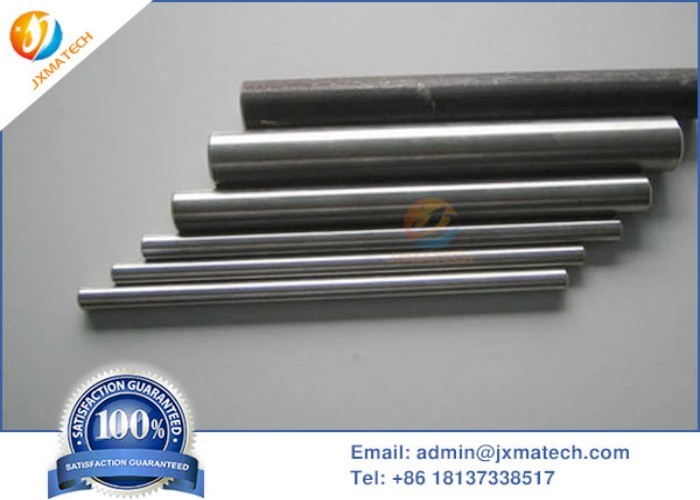

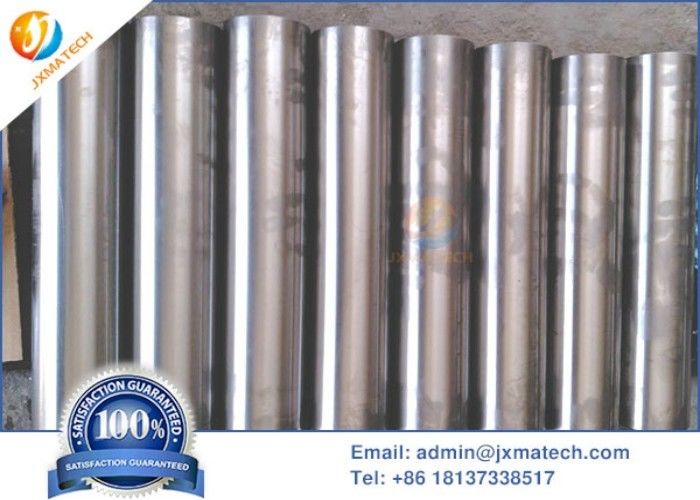

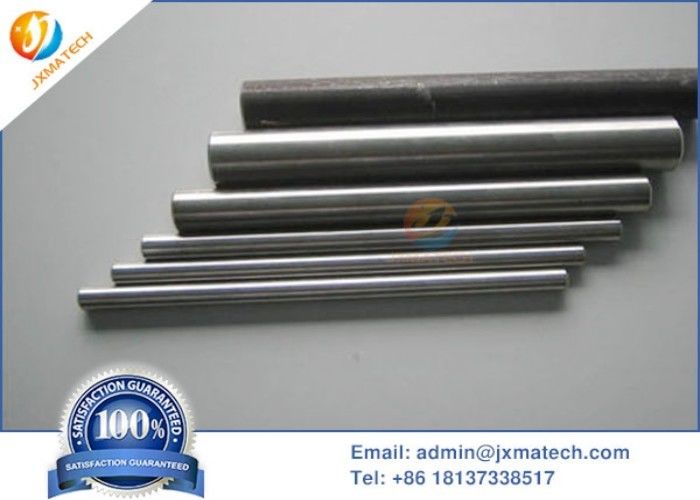

Hastelloy Alloy G30 Rod / UNS N06030 / DIN W. Nr. 2.4603 ASTM B581

Hastelloy Alloy G30 Rod / UNS N06030 / DIN W. Nr. 2.4603 ASTM B581 . Hastelloy G30 is a high chromium content nickel-based alloy. It has superior corrosion resistance to commercial phosphoric acid and many highly oxidizing acid media in mixed environments such as nitric acid/hydrochloric acid, nitric acid/hydrofluoric acid and sulfuric acid, compared to most other bases and iron-based alloys.



Hastelloy G30 alloy is mainly used for wet H3PO4 production and processing and HNO3 plus HF pickling equipment and parts. The alloy has good corrosion resistance, processing performance and high strength, so it is also an alternative structural steel for sour oil and gas wells.





Hastelloy G-30 sheet performs ASME SB 582/ASTM B 582 standard;

Bar performs ASME SB 581/ASTM B 581 standard.


Matching welding consumables: Hastelloy G-30/ERNiCrMo-11


The main applications of Hastelloy (R) G30 (R) alloy are as follows:



  • Chemical processing equipment
  • Reheater pipe
  • Pump assembly
  • Agitator blade
  • boiler in nuclear waste reprocessing.



Form ASTM
Rod ASTM B581
Plate, sheet and strip ASTM B582
Seamless pipe and tube ASTM B622
Welded pipe ASTM B619, ASTM B775
Welded tube ASTM B626, ASTM B751
Welding fitting ASTM B366
Forged or rolled pipe flange and forged fitting ASTM B462
Billet and bar for reforging ASTM B472



Chemical composition :

% Ni Cr Fe Mo W Co C Mn Si P S Cu Nb+Ta
min balance 28 13 4 1.5 　 　 　 　 　 　 1 0.3
max 31.5 17 6 4 5 0.03 1.5 0.8 0.04 0.02 2.4 1.5





Density 8.22 g/cm3
Melting range 1370-1400℃



Application:



Phosphoric acid equipment, Pickling operation
Sulfuric acid equipment, Petrochemical products
Nitric acid equipment Fertilizer production
Nuclear disintegration reprocessing Insecticide production
Nuclear waste treatment Gold extraction

HASTELLOY® G-30® alloy is available in the form of plates, sheets, strips, billets, bars, wires, pipes, tubes, and covered electrodes. Applications include P2 O5 evaporator tubes and nitric acid-based, metal pickling hardware.
