Inconel Flange Flange And Pipe Fittings With Excellent Oxidation Resistance

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Inconel Flange
Payment & Shipping Terms:
Minimum Order Quantity: 30kgs
Price: 30~150USD/kg
Packaging Details: Plywood case
Delivery Time: 25~60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Inconel Flange Standard: ASME B16.5, B 16.47 EN-1092-1
Surface: Pickled , Polished Process: Forge, Drawing
Density: 8.4 G/cm3 Melting Range: 1290-1350℃
High Light:

reducing tee pipe fitting

,

hastelloy c22 pipe fittings

Product Description

Inconel Flange ASME B16.5, ASME B16.47 EN-1092-1

Material : Inconel 600, Inconel 601,Inconel 625,Inconel 686,Inconel 690,Inconel 718, Inconel X-750,Inconel 740,Inconel 617

Inconel Alloy Flange , Inconel Socket Weld Flange, Inconel Weld Neck Flange , Inconel Slip on Flanges , Inconel Threaded Flange, Inconel Spectacle Blind Flanges , Inconel Lap Joint Flanges , Inconel Ring Type Joint Flange



Hastelloy flanges that are provided in ANSI, DIN, JIS, BS and ASME standards

Specifications : ASTM B564 / ASME SB564

Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092-1, DIN, etc.

Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size : 1/2NB TO 60NB

Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Grades : Hastelloy C276, C22, C4, C2000, B2, B3, X Flanges



Form ASTM
Rod ASTM B574
Plate, sheet and strip ASTM B575
Seamless pipe and tube ASTM B622
Welded pipe ASTM B619, ASTM B775
Welded tube ASTM B626, ASTM B751
Welding fitting ASTM B366
Forged or rolled pipe flange and forged fitting ASTM B462
Billet and bar for reforging ASTM B472
Forging ASTM B564



Inconel alloy is a kind of chromium iron nickel base alloy, which has excellent high-temperature oxidation resistance and no embrittlement after repeated heating and cooling. It can be strengthened by heat treatment with high temperature and can be used to make working elements used at high temperature. Nickel base superalloy, nickel base corrosion resistant alloy and shape memory alloy, etc. Inconel alloy is widely used in energy development, chemical industry, electronics, navigation, aviation and aerospace.



Features of Inconel


Inconel has similar characteristics with Hastelloy, or this is the reason why super alloy is called "super": it is more resistant to oxidation and corrosion than other metal materials.


As long as the common engineering metal materials (such as steel, aluminum, etc.) encounter high temperature, they often start to produce lattice cavity defects inside the crystal, which leads to serious creep phenomenon. Generally speaking, it means that the structural strength will decrease under high temperature, making the manufactured products lose their original functions. Features of Inconel


Inconel has similar characteristics with Hastelloy, or this is the reason why super alloy is called "super": it is more resistant to oxidation and corrosion than other metal materials.


As long as the common engineering metal materials (such as steel, aluminum, etc.) meet the high temperature, the crystal often begins to produce lattice hole defects, which leads to serious creep phenomenon. Generally speaking, it means that the structural strength will decrease under high temperature, making the manufactured products lose their original functions.

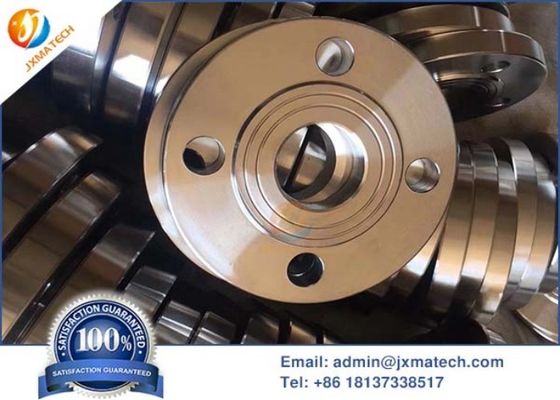

Inconel Flange Flange And Pipe Fittings With Excellent Oxidation Resistance 0
