Stellite 20 API Cobalt Based Non Ferrous Alloys
Stellite 20 API Cobalt Based Non Ferrous Alloys
Stellite 20 API Cobalt Based Non Ferrous Alloys Stellite 20 API Cobalt Based Non Ferrous Alloys Stellite 20 API Cobalt Based Non Ferrous Alloys Stellite 20 API Cobalt Based Non Ferrous Alloys Stellite 20 API Cobalt Based Non Ferrous Alloys

Stellite 20 API Cobalt Based Non Ferrous Alloys

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Cobalt-chromium Alloy
Payment & Shipping Terms:
Minimum Order Quantity: 5KGS
Packaging Details: Plywood Case
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M
Contact Now

Detail Information
Product Name: Stellite 20 Valve Balls Material Grade:: Cobalt-chromium Alloy –Grade 3 And 20
Properties: Wear And Corrosion Resistance, High Temperature Resistance Process: Powder Metallurgy , It Is Short For PM
Application: Oil Well Pump Components , Wear And Corrosion Resistance Parts Tolerance Control: Turning Or Grinding Surface , Tolerance Upon Drawing
Length: As Customer′s Request Certification: ISO9001:2018
High Light:

API Non Ferrous Alloys

,

Cobalt Based Non Ferrous Alloys

Product Description

API Cobalt Based Alloy Cobalt Valve Ball

Description:

API Cobalt Based Alloy Cobalt Valve Ball is made from is a hard alloy that can withstand various types of abrasion and

corrosion as well as high temperature oxidation.

1. High strength, high wear resistance, high precision, good temperature resistance and good corrosion resistance.
2. Mainly used for the sealing of valves of oil pumps in petroleum industry's containing wells, viscous oil wells, sea oil wells and high pressure sulfur resistant oil wells, etc.

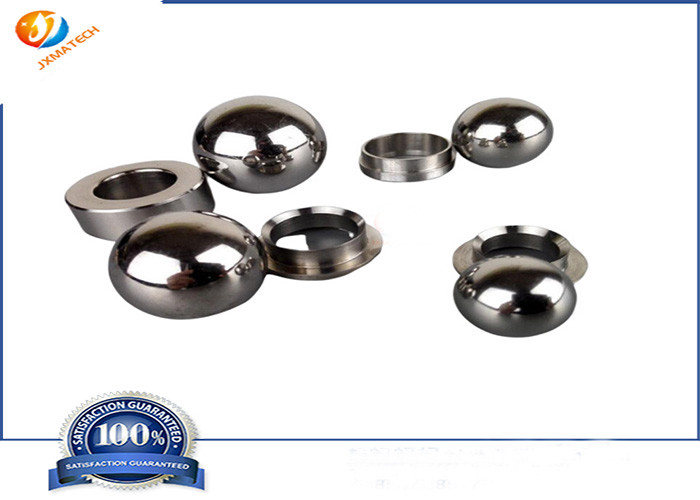

3. Balls and seats are used with compatible cemented carbide valve seats,The valve balls and valve seats are main components and parts of the sucker rod pump.

1. Product Name:



2. Material Grade:Stellite 20 Valve Balls



3. Size:Customer's Drawings



4. Hardness:HRC37-55



5. Production process:Investment Casting



6. Related industry:Oil&gas Industry



7. Features:High Wear and Corrosion Resistance



API Cobalt Based Alloy Cobalt Valve Ball Chemical Composition:



Composition (%) C Si Mn Cr Ni S P Mo W Fe Co

Stellite 20

(Balls)

 2.30-2.65 ≤1.0 ≤1.0 31.0-34.0 ≤2.5 ≤0.04 ≤0.04 ≤1.0 16.0-18.0 ≤2.5 Bal.

CoCr Alloy

(Seats)

 2.20-2.50 ≤1.0 ≤1.0 29.0-34.0 ≤3.0 ≤0.04 ≤0.04 ≤1.0 11.0-14.0 ≤2.5 Bal.


.Stellite 20 API Cobalt Based Non Ferrous Alloys 0

Stellite 20 API Cobalt Based Non Ferrous Alloys 1



For sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells,high pressure sulfur resistant oil wells, compatible Cemented Carbide valve seats, etc.Various grades for cemented carbide balls/pellets can be supplied according to customer's drawings.The surface finish, tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry.
