379MPa Pickled Grade R60702 Seamless Zirconium Tube
379MPa Pickled Grade R60702 Seamless Zirconium Tube
379MPa Pickled Grade R60702 Seamless Zirconium Tube 379MPa Pickled Grade R60702 Seamless Zirconium Tube 379MPa Pickled Grade R60702 Seamless Zirconium Tube

379MPa Pickled Grade R60702 Seamless Zirconium Tube

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zirconium Pipe Seamless Zr702
Payment & Shipping Terms:
Minimum Order Quantity: 50kgs
Packaging Details: Plywood case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000kgs/M
Contact Now

Detail Information
Material: Grade R60702 , R60704, R60705 Surface: Pickled Or Polished Surface
Shape:: Tube Pipe Application: Aerospace, Chemical And Heatexchanger
Finishes Designate:: Seamless, Welded,Annealed Melting Point: 1852℃
Inspection: Eddy-Current And Ultrasonic Testing Size: Customized
High Light:

R60702 Seamless Zirconium Tube

,

Pickled Seamless Zirconium Tube

,

379MPa Seamless Zirconium Tube

Product Description

Seamless Zirconium pipe

Name:

high quality r60705 zirconium alloy tubes zirconium alloy pipe

2. Brand name: R60702, Zr1

3. Surface: bright

4. Purity: ≥99.6%

5. Density: 6.51g /cm3

6. Melting point: 1852℃

7. specifications: according to customer requirements customized production.

8. Production process: forging, rolling



Seamless  Zirconium pipe

We can produce high-quality zirconium (Zr702, Zr704, Zr705) and its alloy (Zr2, Zr4) zirconium sheet/plate, zirconium foil, zirconium rod/bar, zirconium wire, Zirconium Pipe (Zirconium Tube) etc, according to ASTM specifications. JINXING Metal supplies the highest quality Zirconium Pipe (Zirconium Tube) for many years with competitive prices and unrivaled customer service. All the Zirconium Pipe and Zirconium Tube offered by us will pass strict test process. Custom-designed shapes can be supplied with very short lead times.

Features:

· nuclear energy property,excellent corrosion resistance,high melting point,high strength and hardness, super conducts at low temperatures

  • Mechanical Properties

Material State Rm(≥)/MPa 3.Rp0.2(Pa 4.A50mm(≥)/%

Zirconium 702

(UNS R60702)

 annealed 379 207 16

Zirconium 704

(UNS R60704)

 annealed 413 241 14

Zirconium 705

(UNS R60705)

 annealed 552 379 16

·

· Zirconium Sheet And Plate : ASME SB 551- R60702 R60705

· Zirconium Tubing - Seamless: ASME SB 523 - R60702 R60705

· Zirconium Forgings: ASME SB 493 - R60702 R60705

· Zirconium Bar: ASME SB 550 - R 60702 R60705

· Zirconium Products

· Grade 702 : R60702

· Grade 704 : R60704

· Grade 705 : R60705

· Grade 706 : R60706

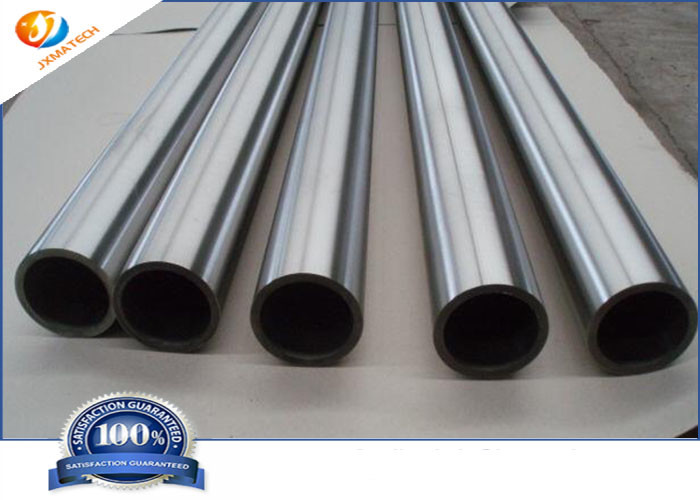

379MPa Pickled Grade R60702 Seamless Zirconium Tube 0

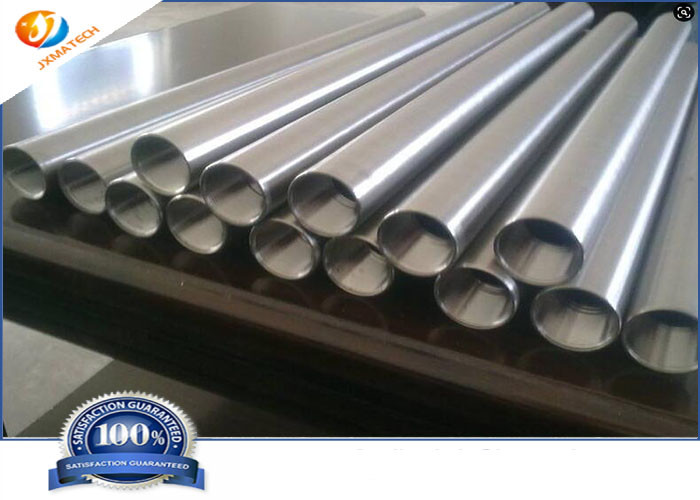

379MPa Pickled Grade R60702 Seamless Zirconium Tube 1
