HIP Sintering Tungsten Heavy Alloy For Counterweights

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Tungsten Heavy Alloy
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Packaging Details: Plywood Case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Tungsten HD Alloy WNiFe / WNiCu Surface: Bright Ground Finished
Standard: ASTM B777 , AMS-T-21014 Density: 17~18.5 G/cm3
Dimensions: Customized Application: Aerospace, Military, Medical
High Light:

Sintering Tungsten Heavy Alloy

,

Counterweights Tungsten Heavy Alloy

,

ASTM B777 Tungsten Heavy Alloy

Product Description

HIP sinteringTungsten Heavy Alloy Cubes/Block for Counterweights



Tungsten heavy alloy cubes can be small in volume while very massive because of tungsten heavy alloy cubes high density. Tungsten heavy alloys usually consist of W-Ni- Fe or W-Ni- Cu or W-Ni-Cu-Fe, tungsten heavy alloy is created with addition of: Co,Mo,Cr, etc. When tiny, yet heavy parts are needed, such as counterweights in golf clubs, fishing weights, and penetrating projectiles.

Tungsten cube/1kg tungsten cube/Tungsten cube weight

Tungsten cube is pure tungsten cube(density:19.3g/cc)and tungsten alloy cube(density:18.1g/cc)





AMS-T-21014 Class 1 Class 1 Class 2 Class 2 Class 3 Class 3 Class 4
Composition(%) 90W7Ni3Fe 91W6Ni3Fe 92W5Ni3Fe 93W4Ni3Fe 95W3Ni2Fe 96W3Ni1Fe 97W2Ni1Fe
Density(g/cm3) 17.1+/-0.15 17.25+/-0.15 17.5+/-0.15 17.6+/-0.15 18.1+/-0.15 18.3+/-0.15 18.5+/-0.15
Tensile Strength(MPa) 900~1000 900~1000 900~1100 900~1100 920~1100 920~1100 920~1100
Elongation (%) 18~29 17~27 16~26 16~24 10~22 8~20 6~13
Hardness(HRC) 24~28 25~29 25~29 26~30 27~32 28~34 28~36



Features:of pure Tungsten Heavy Alloy Cubes/Block

· The highest melting point of all metals , relatively stable chemical properties

· Excellent resistance to electrochemical corrosion , not easily corroded by air .

· High wearability ,High hardness, high density.

· Good high temperature strength.

· Good electron emission properties .

· Mechanical properties mainly determined by the pressure processing and heat treatment process status.



Applications

Tungsten heavy alloy cube is completely non-toxic and environmentally friendly so tungsten heavy alloy cube is often used in weighting applications,especially used in pine wood derby cube to offer a pinewood derby kits.where lead is not appropriate.

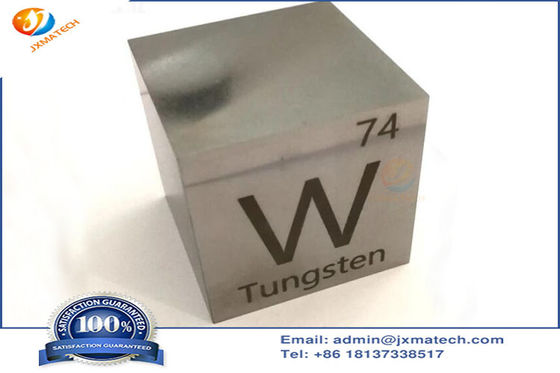

Tungsten Heavy Alloy Cubes/Block Picture:

HIP Sintering Tungsten Heavy Alloy For Counterweights 0

HIP Sintering Tungsten Heavy Alloy For Counterweights 1
