Solution Annealed Swage Forge Zr702 Zirconium Bar

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zirconium
Payment & Shipping Terms:
Minimum Order Quantity: 5kgs
Packaging Details: Plywood case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Zr 700 , Zr 702 , Zr 704 , Zr 705 Standard: ASTM B550
Process: Swage Forge, Forge, Hot Rolling Heat Treatment: Solution Annealed
Surface: Polished Surface Density: 6.51g/cm3
Shape: Square Bar, Round Bar, Hexagonal Bar, Size: Dia.: 3mm - 400mm
High Light:

Swage Forge Zr702 Zirconium Bar

,

Solution Annealed Zirconium Bar

,

Hot Rolling Zirconium Bar

Product Description

High Purity Polishing Zirconium Bar/Rod Zirconium 705 Metal Rod/Bar Zr702 Best Price for Zirconium Bar Stick



Zirconium Bar is a metal with physical and chemical properties similar to those of titanium. It is strong, ductile and malleable. It effectively combats corrosion and heat. It is insoluble in acids and alkalis. Zirconium oxide is the most usable form of Zirconium. It has a high melting point and low thermal conductivity. Zirconium is a highly corrosion resistant metal that is us used for many products. Some include pumps, valves, nuclear applications, chemical processing, reactor vessels, heat exchangers and more. The nuclear power industry uses nearly 90% of the zirconium produced each year.

Size Dia.: 5 mm - 400 mm
Material R60702, R60704, R60705
Standard ASTM B550, ASTM B351
Surface Black, pickling, sand-blasting, polished
Condition Cold rolled(Y), hot rolled(R), annealed (M), quenching (C)
Shape Square bar, round bar, hexagonal bar, etc.

Product Test of Zirconium Bar

Visual inspection, check the surface quality, ensuring products are without a single flaw

Ultrasonic flaw detection, making sure zirconium rods have no defects inside

Chemical composition detection

Mechanical features testing

.Related Zr Products :

zirconium
Grade Zr2 Zr4 Zr60702 Zr60705
Production Standard Size
Zirconium bar GB8769-88 ASTMB550 dia(6-120mm)*(50-2500mm)
Zirconium wire ASTMB550 dia(0.5-6mm)*L
Zirconium plate ASTMB551 (thkness1.0-35mm)*(W50-500mm)*(L10-2000mm)
Zirconium tube ASTMB523 OD(6-100mm)*(L50-3000mm)
Zirconium foil ASTMB628 thkness0.05-6mm*W20-150mm*L

Premium Quality
All the products are mill certified and 100% traceable from mill processing through melt source to maintain quality control requirements. Third Party Inspectation.

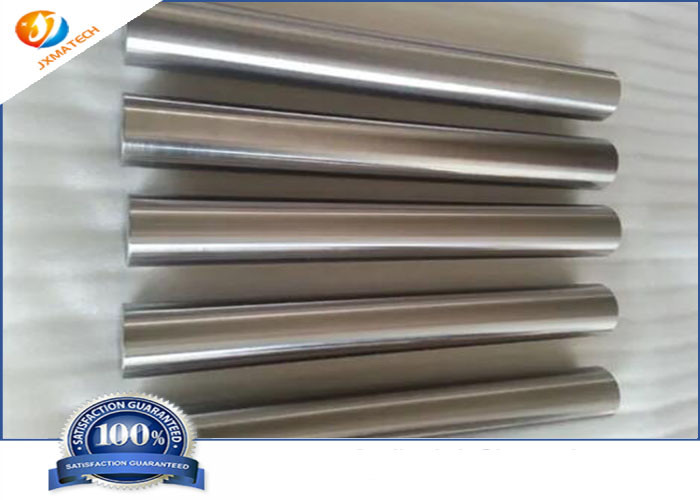

Zirconium Bar Picture:

Solution Annealed Swage Forge Zr702 Zirconium Bar 0



Solution Annealed Swage Forge Zr702 Zirconium Bar 1
