30cm 0.02mm Platinum Iridium PT IR Wire For Thermocouple

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Iridium Rod
Payment & Shipping Terms:
Minimum Order Quantity: 5grams
Price: 40~150USD/grams
Packaging Details: Carton case
Delivery Time: 5~15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000kgs/M

Detail Information

Material: Pure Iridium Surface: Drawing Surface Or Polished
Density: 22.56g/cm3 CAS #: 7439-88-5
Color: Available In Colors Purity: 99.95% Min
High Light:

Platinum Iridium PT IR Wire

,

Thermocouple PT IR Wire

,

30cm PT IR Wire

Product Description

Pt/Ir Wire, 0.25mm/30cm 0.02mm Platinum Iridium Wire PT -IR Wire for Thermocouple



Pt/Ir Wire Features:

good thermoelectric properties;

thermoelectric power and temperature rendering line relationship;

thermoelectric thermal stability, high accuracy.

Platinum Wire, Pure Platinum iridium wire

We can supply platinum wire, Platinum iridium wire, Platinum Rhodium Thermocouple Wires.

Platinum is a member of the platinum group metals and is lustrous, malleable and ductile; it has an abundance of

approximately 0.001 ppm in the earth's crust. Of the group of six metals (Pt, Pd, Os, Ir, Rh and Ru), it is the most

important. It is unaffected by oxygen and water and is only soluble in aqua regia or fused alkalis.

Comparison Property

Material Melting point °C Density g/cm
Pure Pt --- Pt(99.99%) 1772 21.45
Pure Rh--- Rh(99.99%) 1963 12.44
Pt-Rh5% 1830 20.70
Pt-Rh10% 1860 19.80
Pt-Rh20% 1905 18.80
Pure Ir --- Ir(99.99%) 2410 22.42
Pt-Ir5% 1790 21.49
Pt-Ir10% 1800 21.53
Pt-Ir20% 1840 21.81
Pt-Ir25% 1840 21.70
Pt-Ir30% 1850 22.15

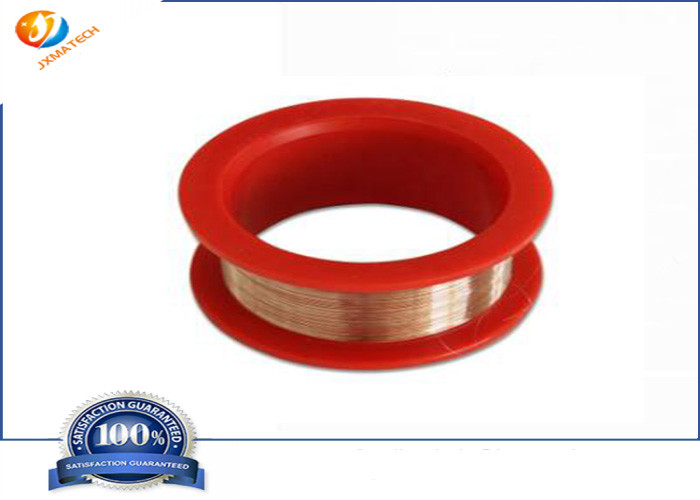

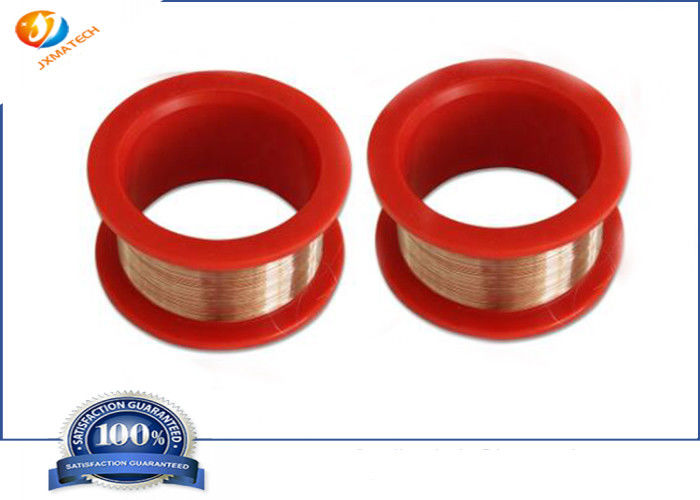

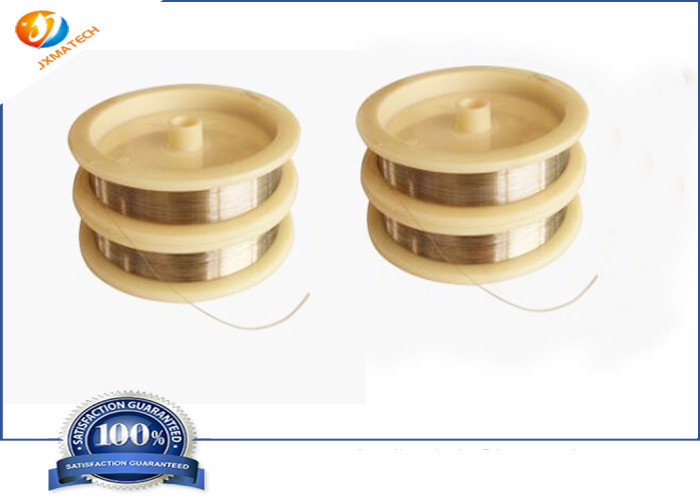

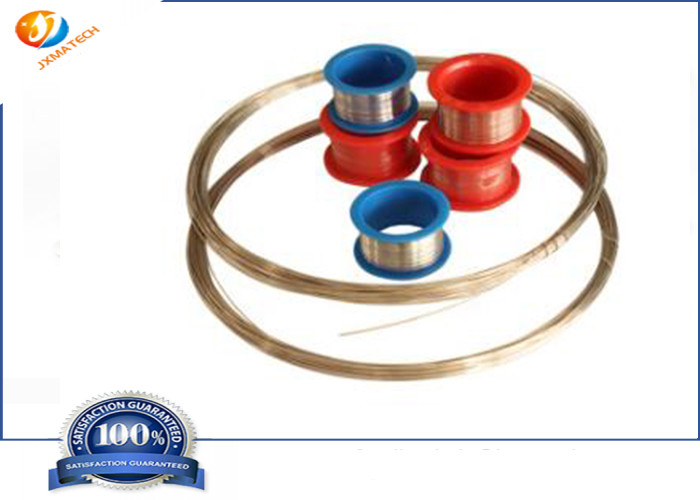

Pt/Ir Wire Picture:

30cm 0.02mm Platinum Iridium PT IR Wire For Thermocouple 0

30cm 0.02mm Platinum Iridium PT IR Wire For Thermocouple 1

30cm 0.02mm Platinum Iridium PT IR Wire For Thermocouple 2
