Product Description
R60702 Zirconium Plate Zr Sheet ASTM B551
Zr Sheet and other grades: R60702, r60704, r60705, ZR1, Zr2
Zirconium plate standard; ASTM B550 ASTM B550-07 GB/8769-88
The density of zirconium plate is 6.51kg/m2, melting point 1855 ℃, boiling point 4409 ℃
Specification of zirconium plate; δ 0.5-8.0mm * width 100-980mm * length 2000mm
Application of zirconium plate: zirconium plate is mainly used in chemical industry and electronic industry, mainly used for corrosion resistance and conductivity of zirconium plate.
Zr Sheet Process: hot rolling, cold rolling, pickling, shearing. Features: zirconium plate is a kind of rare metal, which has amazing corrosion resistance, high melting point, ultra-high hardness and strength, and is widely used in zirconium plate reaction and atomic energy field. The corrosion resistance and high temperature resistance of titanium products used in Shenzhou VI project are far less than that of zirconium. Its melting point is about 1600 degrees, while the melting point of zirconium is more than 1800 degrees. The melting point of zirconium dioxide on zirconium plate is more than 2700 degrees. Therefore, as an aerospace material, zirconium is superior to titanium in all aspects.
Specifications Of Zr Sheet
| Material |
Zr702, Zr704, Zr705 |
| Thickness |
0.5~50mm, or 0.02"~2" |
| Width |
<1000mm> |
| Length |
<2000mm> |
Composition of our Zirconium materials
| |
Zr 702 |
Zr 704 |
Zr 705 |
Zircaloy-2 |
Zircaloy-4 |
| Sn |
/ |
1~2% |
1~2% |
1.2~1.7% |
1.2~1.7% |
| Fe |
<0> |
0.1~0.2% |
<0> |
0.07~0.2% |
0.07~0.2% |
| Cr |
<0> |
0.1~0.2% |
<0> |
0.05~0.15% |
0.05~0.15% |
| Ni |
/ |
/ |
/ |
0.03~0.08% |
<0> |
| Hf |
1~2.5% |
<4> |
<4> |
|
|
| Nb |
/ |
/ |
2~3% |
|
|
| Zn+Hf |
~99.5% |
~97.5% |
~95.5% |
~98% |
~98% |
Zr Sheet Physical Properties
| Material |
State |
Rm(≥)/MPa |
Rp0.2(Pa |
A50mm(≥)/% |
|
Zirconium 702
(UNS R60702)
|
annealed |
379 |
207 |
16 |
|
Zirconium 704
(UNS R60704)
|
annealed |
413 |
241 |
14 |
|
Zirconium 705
(UNS R60705)
|
annealed |
552 |
379 |
16 |

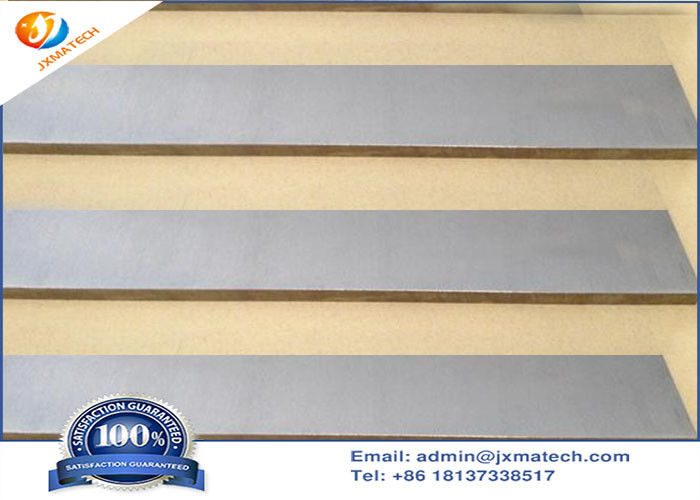

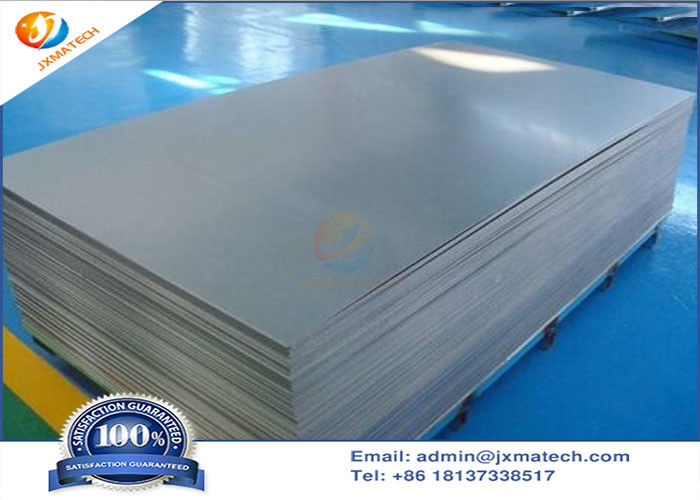

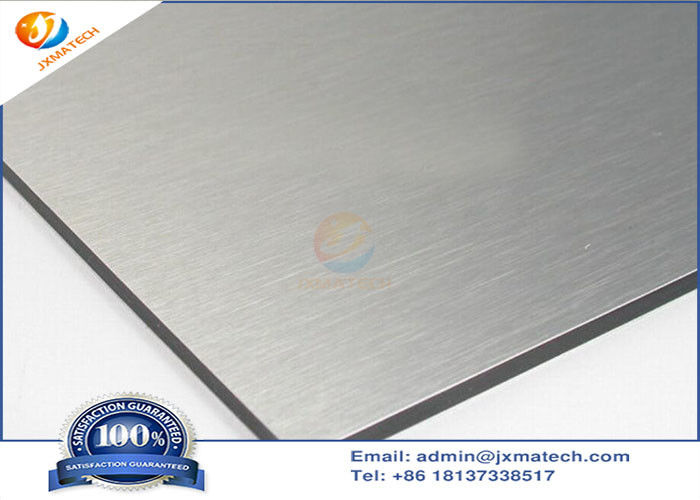

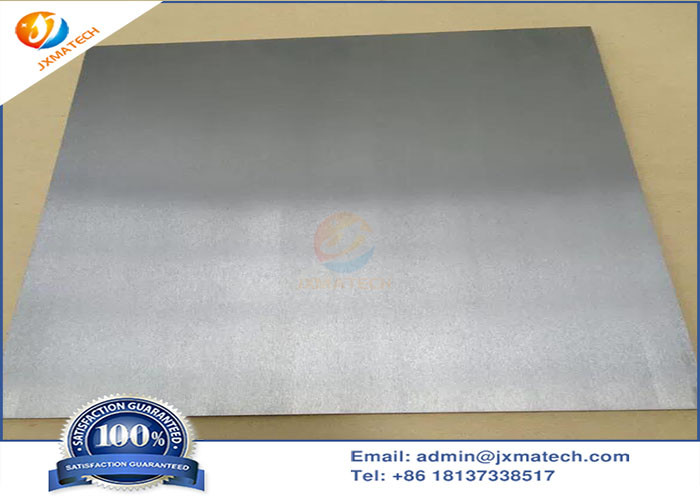

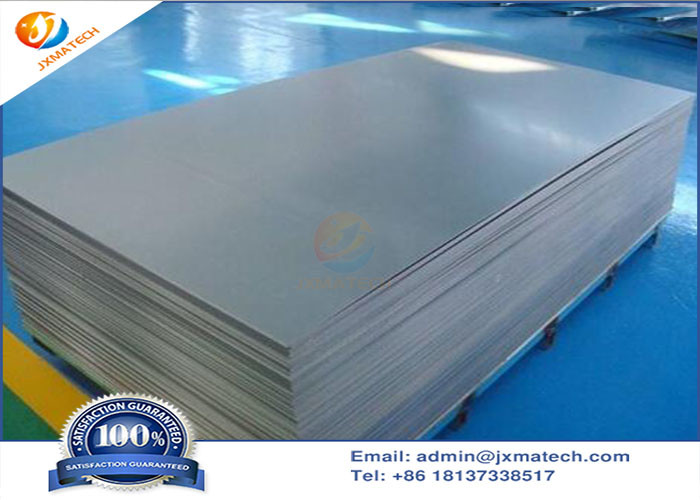

Zr Sheet picture:
Our company's Zr Sheet and strip production line: has large-scale zirconium and zirconium alloy plate rolling technology, plate shape and size precision control technology, plate heat treatment technology, plate surface quality control technology. The cold and hot rolling mills adopt advanced technologies such as hydraulic AGC and positive and negative roll bending, which have the advantages of high rigidity, large rolling force and large torque; With advanced automatic control system, matching thickness gauge, pressure gauge, roll gap gauge, etc., the online high-precision control of plate and strip production can be realized.
We have rolling technology, shape and dimension precision control technology, plate heat treatment technology and plate surface quality control technology for large size titanium and titanium alloy, zirconium and zirconium alloy rare metal plate and strip. The cold and hot rolling mills adopt advanced technologies such as hydraulic AGC and positive and negative roll bending, which have the advantages of high rigidity, large rolling force and large torque; With advanced automatic control system, matching thickness gauge, pressure gauge, roll gap gauge, etc., the online high-precision control of plate and strip production can be realized.
The Zr Sheet and strip production line includes a hot rolling production line and a cold rolling production line, mainly producing rare and refractory metals, non-ferrous metals, carbon steel, stainless steel and clad plates. It has an annual production capacity of 10000 tons of titanium and titanium alloy plate and strip, 20000 tons of composite plate and 200000 tons of steel plate. The product has high dimensional accuracy, good shape and surface quality, stable organization and performance, and can be produced according to customer requirements.
