ASTM B523 Welded Zirconium Tube UNS R60702 For Heat Exchanger Applications

Product Details:
Place of Origin: CHINA
Brand Name: JINXING Zirconium Welded Tubing
Certification: ISO 9001
Model Number: Zr702
Payment & Shipping Terms:
Minimum Order Quantity: 20 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product: Zirconium Welded Tubing Type: Zr702
Standard: ASME B523 / B658 Density: 6.51 G/cc
Tensile Strength: >215 MPa Elongation: >17%
Purity: >99.2% Applications: Corrosive Fluid
High Light:

ASTM B523 Welded Zirconium Tube

,

UNS R60702 Welded Zirconium Tube

,

Heat Exchanger Welded Zirconium Tube

Product Description

ASTM B523 Zirconium Welded Tubing UNS R60702 For Heat Exchanger Applications

Zirconium Welded Tubing is made of zirconium and Zr alloys. Due to the excellent performance and corrosion resistance of zirconium, zirconium alloy tubes are often used in manufacturing various corrosive fluid transmission pipeline systems. It is widely used in heat exchange equipment, such as tubular heat exchanger, coil heat exchanger, serpentine heat exchanger, condenser, evaporator and pipeline



CHEMICAL COMPOSITIONS (NOMINAL)

Type Zr+Hf Hf Fe+Cr H N C O Nb
Zr702 >99.2 <4.5 <0.2 <0.005 <0.025 <0.05 <0.16 /
Zr705 95.5 <4.5 <0.2 <0.005 <0.025 <0.05 <0.18 2.0-3.0





PARAMETERS

  • Zirconium tube outer diameter: 6.0-114mm
  • Zirconium tube wall thickness: 0.3-8.0 mm
  • Zirconium tube length: ≤ 18000mm



APPLICATIONS

Zirconium Welded Tubing is an alloy tube material made of zirconium and other metals. Due to the excellent nuclear and corrosion resistance of zirconium, zirconium alloy tubes are often used in the nuclear fuel assemblies and in core structures of water-cooled reactors. Pure zirconium tube is mainly used to manufacture chemical equipment.

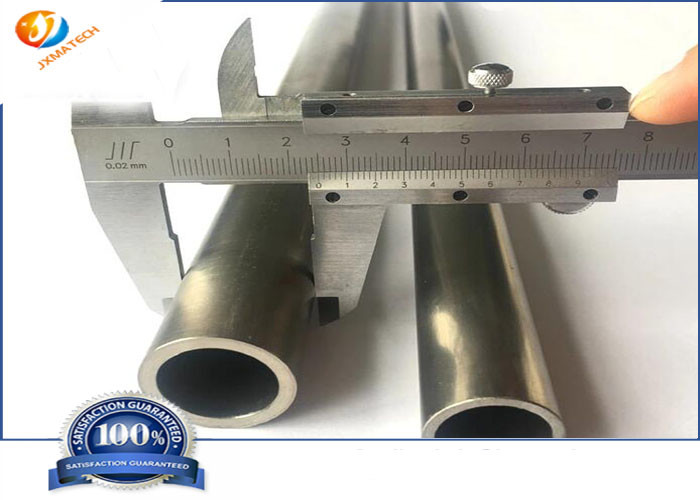

Zirconium Welded Tubing Picture:

ASTM B523 Welded Zirconium Tube UNS R60702 For Heat Exchanger Applications 0ASTM B523 Welded Zirconium Tube UNS R60702 For Heat Exchanger Applications 1ASTM B523 Welded Zirconium Tube UNS R60702 For Heat Exchanger Applications 2



Zirconium Corrosion Resistance

Zirconium Welded Tube is usually used in highly corrosive industrial applications, and is often used in chloride based processes. These and other highly corrosive chemicals can cause damage to smaller materials.
