K10 Cemented Tungsten Carbide Sheets With High Wear Resistance And Hardness
K10 Cemented Tungsten Carbide Sheets With High Wear Resistance And Hardness K10 Cemented Tungsten Carbide Sheets With High Wear Resistance And Hardness K10 Cemented Tungsten Carbide Sheets With High Wear Resistance And Hardness K10 Cemented Tungsten Carbide Sheets With High Wear Resistance And Hardness

K10 Cemented Tungsten Carbide Sheets With High Wear Resistance And Hardness

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: K30 Tungsten Carbide Sheets
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Product Name: Tungsten Carbide Sheets Type: K10
Density: 14.4 G/cc Standard: ASTM B578-2010
Hardness: 95 HAR Elastic Modulus: 463 GPa
Packaging: Export Plywood Cases Application: Wear-resistantance Parts
High Light:

K10 Cemented Tungsten Carbide Sheets

,

Wear Resistance Tungsten Carbide Sheets

,

K10 tungsten sheet metal

Product Description

K10 Cemented Tungsten Carbide Sheets With High Wear Resistance And Hardness

The tungsten carbide sheets are mainly made by mixing tungsten carbide and cobalt powder, and is made by metallurgical methods such as crushing, pressing and sintering. The main alloy components are WC and Co. The content of WC and Co in tungsten carbide sheets for different purposes is different, and they are widely used. It is named after a rectangular sheet (or square), also known as a tungsten carbide plate.



Application of tungsten carbide sheets

  • It is widely used for high-speed cutting turning tools, kiln structural materials, jet engine parts, cermet materials, resistance heating elements, etc.
  • It is used for manufacturing cutting tools, wear-resistant parts, melting crucibles of copper, cobalt, bismuth and other metals, and wear-resistant semiconductor films.
  • It is used as superhard tool material and wear-resistant material. It can form solid solution with many carbides. WC tic co cemented carbide tools have been widely used.

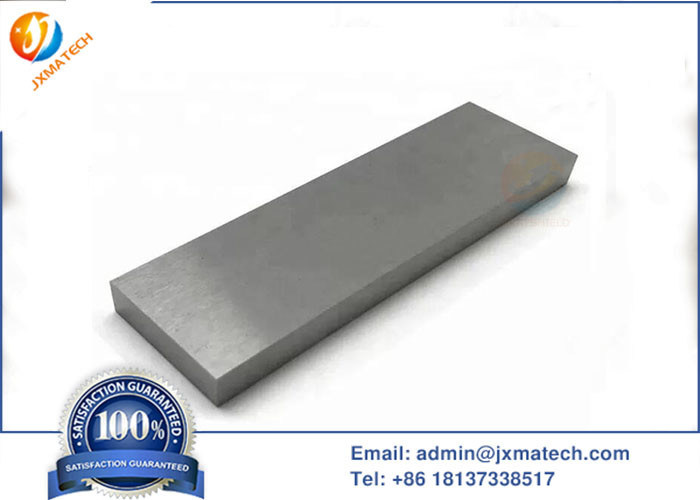

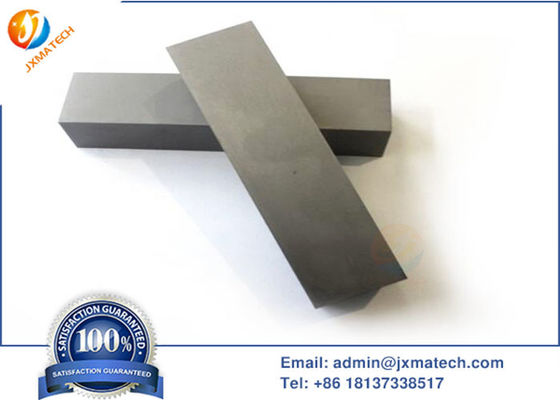

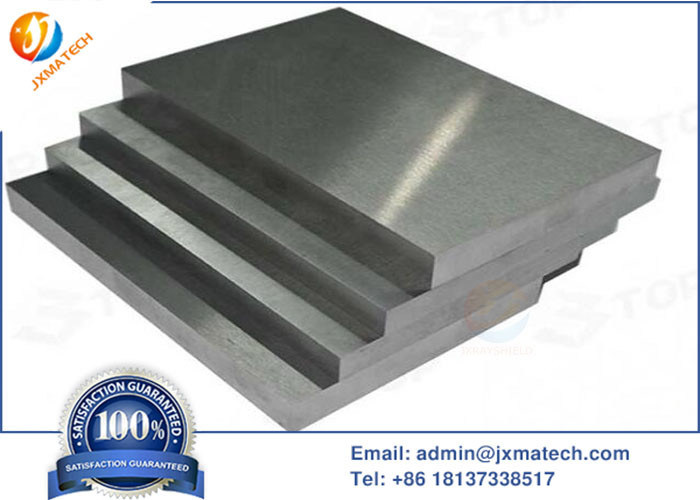

Tungsten Carbide Sheets Picture:

K10 Cemented Tungsten Carbide Sheets With High Wear Resistance And Hardness 0K10 Cemented Tungsten Carbide Sheets With High Wear Resistance And Hardness 1

Tungsten Carbide Sheets Garde & Technical Parameters

Grade Co% Hardness
HAR		 Density
g/cm		 Flexural strength
MPa		 Elastic modulus
GPa		 Thermal expansion coefficient
10/C		 Application
JX10 10 91.7 14.4 4300 490 5.4 Copper, aluminum and other thin sheets with thickness less than 0.2mm
JX15 12 92.5 14.1 4500 460 5.8 Copper, aluminum, stainless steel, etc
JX20 13 90.6 14.1 4100 460 5.8 Strong applicability, copper, aluminum and other thin sheets
JX35A 12 89.8 14.2 3400 470 5.7 Q195, SPCC and other cold rolled sheets
JX36 15 89.4 13.8 3900 430 6.3 EI, SPCC and other cold rolled sheets
JX40A 12 88.9 14.2 3300 470 5.7 Q195, SPCC and other cold rolled plates, high-speed stamping dies and multi station progressive dies
JX45A 15 87.9 13.9 3200 440 6.1 Die for silicon steel sheet, cold rolled sheet, hardware and standard parts
JX55 20 86.4 13.5 3100 390 6.8 Silicon steel sheet, upper and lower punches





Performance characteristics of tungsten carbide sheets

Tungsten carbide sheet has good hardness, wear resistance, elastic modulus, high compressive strength, and chemical stability (acid resistance, alkali resistance, high temperature and oxidation resistance). At the same time, it has the characteristics of low impact toughness and low expansion coefficient, and its thermal conductivity and electrical conductivity are similar to those of iron and its alloys.
