WNiFe WNiCu Grounded Tungsten Heavy Alloy Bar ASTM B777
WNiFe WNiCu Grounded Tungsten Heavy Alloy Bar ASTM B777 WNiFe WNiCu Grounded Tungsten Heavy Alloy Bar ASTM B777 WNiFe WNiCu Grounded Tungsten Heavy Alloy Bar ASTM B777 WNiFe WNiCu Grounded Tungsten Heavy Alloy Bar ASTM B777

WNiFe WNiCu Grounded Tungsten Heavy Alloy Bar ASTM B777

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: WNiFe WNiCu Heavy Tungsten Alloy Bar
Payment & Shipping Terms:
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Product Name: WNiFe WNiCu Grounded Heavy Tungsten Alloy Bar Type: WNiFe
Density: 16-18.5 G/cc Purity: >95% W
Tensile Strength: 700-1400 MPa Elongation: <10%
Standard: ASTM B777-2009 Applications: Armour-piercing Ammunition
High Light:

WNiFe Tungsten Heavy Alloy

,

WNiCu Tungsten Heavy Alloy

,

ASTM B777 Tungsten Heavy Alloy bar

Product Description

WNiFe WNiCu Grounded Heavy Tungsten Alloy Bar ASTM B777

WNiCu Heavy Tungsten Alloy Bar is an alloy material based on tungsten (tungsten content is generally 80% ~ 98%) and composed of a small amount of Ni, Fe, Cu, Co, Mo, Cr and other elements. The density of high specific gravity tungsten alloy is as high as 15.20 ~ 18.70g/cm3, which is also known as high specific gravity tungsten alloy or high-density alloy material. Because the weight of tungsten alloy is more than twice that of iron or steel.



SPECIFICATION & CHEMICAL COMPOSITIONS  (NOMINALS)

Chemical Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter Vacuum
Density
(g/cc)		 16.85-17.25 17.15-17.85 17.75-18.35 18.25- 18.85
Hardness
(HRC)		 32 Max 30 Max 40 Min 33 Max 31 Max 40 Min 34 Max 32 Max 35 Max 33 Max
Tensile Strength (Max) 770 Min 900 Min 1400
Max		 770 Min 910 Min 1440 Max 735 Min 920 Min 700 Min 850 Min
Yield Strength
(Mpa)		 620 Min 620 Min 1280 Max 650 Min 650 Min 1340 Max 650 Min 650 Min - -
Elongation
(%)		 5 Min 15 Min 5 Min 5 Min 12 Min 3 Min 3 Min 12 Min 2 Min 6 Min

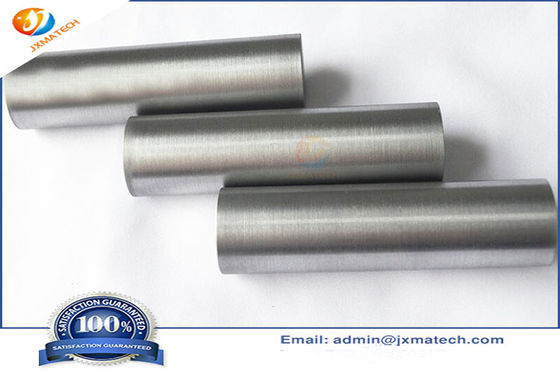

WNiCu Heavy Tungsten Alloy Bar Picture:
WNiFe WNiCu Grounded Tungsten Heavy Alloy Bar ASTM B777 0WNiFe WNiCu Grounded Tungsten Heavy Alloy Bar ASTM B777 1

Introduction and characteristics of Heavy Tungsten Alloy Bar

Heavy Tungsten Alloy Bar is mainly divided into two series: W-Ni-Fe, W-Ni-Cu and even w-ni-fe-cu. In comparison, W-Ni-Fe alloy has better mechanical properties and plays a great role in national defense industry and various fields of national economy. It is a very important new military material in national defense industry and has been gradually popularized to various civil industries.



Common processes for preparing tungsten heavy alloys include mixing the required amount of tungsten, iron, nickel or copper powder, and then cold pressing and liquid phase sintering to almost full density. During the liquid phase treatment, the base tungsten alloy melts and some tungsten is brought into the solution to form a microstructure through which large tungsten particles (20 – 60 µ m) are dispersed in the base alloy.



Application of Heavy Tungsten Alloy Bar

In view of the above excellent functions of high specific gravity alloy, it is widely used in aerospace, aviation, military, oil drilling, electrical instruments, medicine and other industries.
