Product Description
Zirconium Alloy Rod/Bar Zirconium Niobium Alloy Rod
The Zirconium Alloy Rod/bar for Sale R60705 is composed of various kind of metals, which have the advantages of high hardness, good wear resistance and explosion resistance, and high softening temperature. Due to the high performance, our Zr 705 Zirconium Alloy Rod/bar for Sale R60705 can be an ideal parts and consumables used for chrome-zirconium copper electrodes, resistance welding equipment parts, electrode grips, shafts and gasket materials, or large molds and fixtures for projection welding machines, spot welding electrodes and so on.
Zirconium can withstand the boiling point of sulfuric acid and is higher than the boiling point, and the concentration can reach 70%. Zirconium can resist certain highly corrosive environments including various inorganic acids (hydrochloric acid, sulfuric acid, nitric acid, etc.), alkalis, and most organic acids (such as hydrochloric acid) , Formic acid, etc.) various salt solutions and molten alkali. The corrosion resistance in sodium hydroxide medium is the same as that of nickel.
Zirconium Alloy Rod/Bar Application
• Used to make high temperature superconductive materials.
• Used to make electrodes components, foils, flanges bolts, tubes and rods for special applications.
• Used for applications in medical equipment, such as zirconium implants.
• Used as raw material for reactors and crucibles.
Chemical Composition:
| Grade |
Zr+Hf |
Hf |
Fe+Cr |
Sn |
H |
N |
C |
O |
Nb |
| R60702 |
99.2% |
<4.5% |
<0.20% |
- |
<0.005% |
<0.015% |
<0.030% |
<0.15% |
- |
| R60704 |
97.5% |
<4.5% |
0.2-0.4% |
1.0-2.0% |
<0.005% |
<0.015% |
<0.030% |
<0.16% |
- |
| R60705 |
95.5% |
<4.5% |
<0.2% |
- |
<0.005% |
<0.015% |
<0.050% |
<0.16% |
2.0-3.0% |

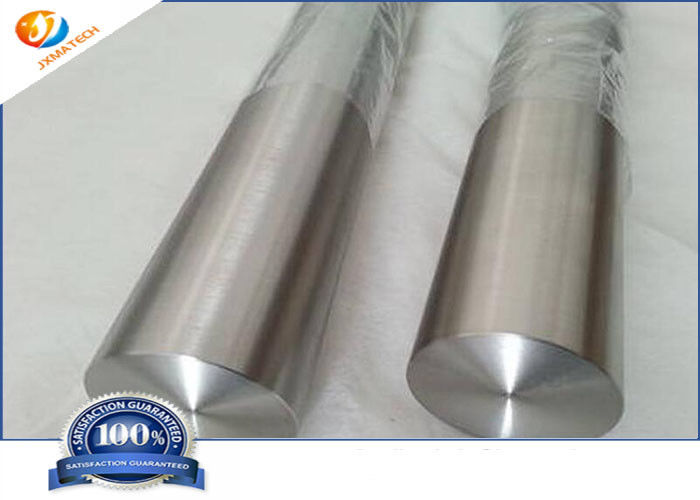

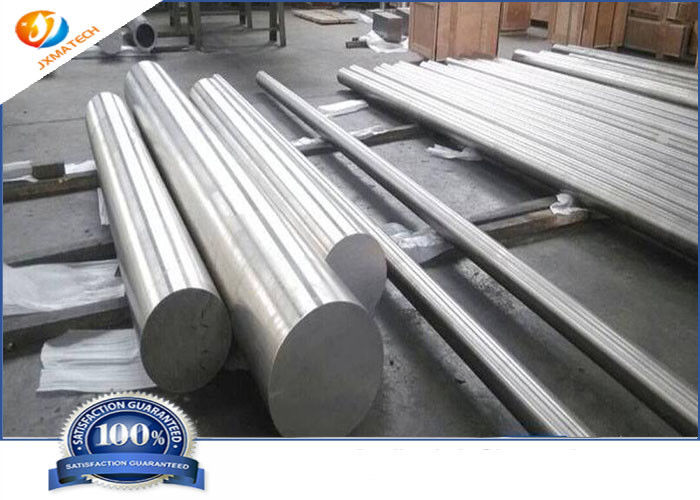

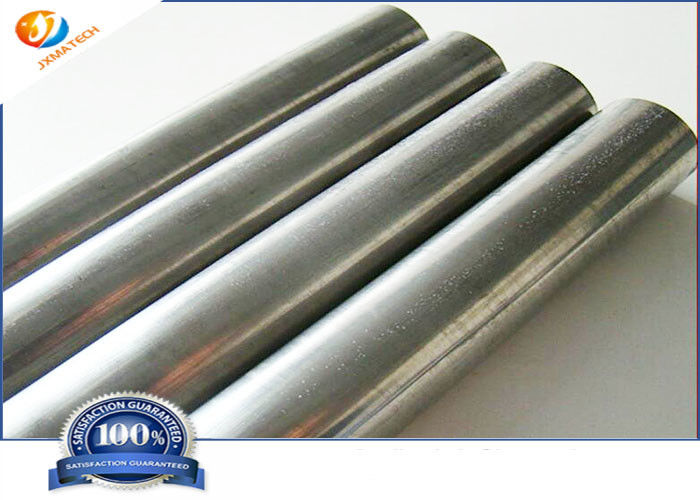

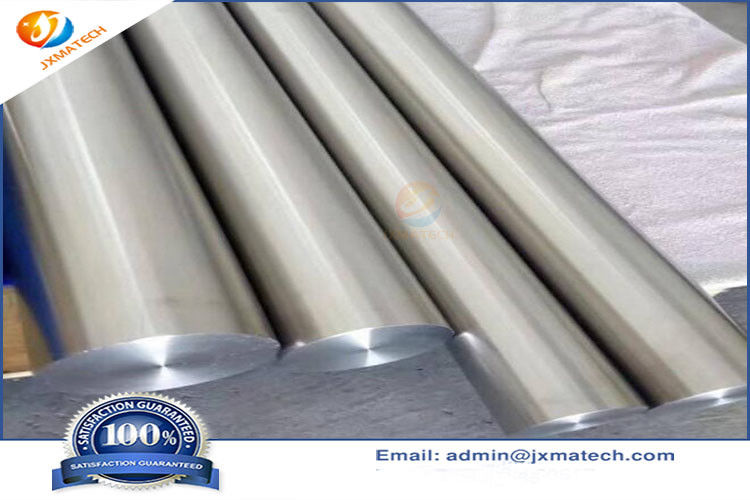

Zirconium Alloy Rod/Bar Picture:
Our supply the major industrial grades of zirconium, including Zr702 (R60702), Zr704 (R60704) and Zr705 (R60705). In the meantime, we can guarantee a much lower content of Hafnium (around or less than 2%) than ASTM B550/550M (4.5%). For high-end special demand, Hf content less than 1% or even lower is also available at us.
