UNS R60705 Zr Alloy Pipe For Industrial Corrosive Pipeline Systems ASME SB523 Standard

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zr Alloy Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 30-50 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 kg per month

Detail Information

Product Name: Zr Alloy Pipe Grade: Zr705
Standard: ASME SB523 Density: 6.51 G/cc
Tensile Strength: >215 MPa Elongation: >16%
Material: Zirconium Applications: Corrosive Pipeline Systems
High Light:

UNS R60705 Zr Alloy Pipe

,

Corrosive Pipeline Zr Alloy Pipe

,

SB523 Zr Alloy Pipe

Product Description

UNS R60705 Zr Alloy Pipe For Industrial Corrosive Pipeline Systems ASME SB523 Standard

Zr Alloy Pipe is solid solutions of zirconium or other metals, a common subgroup having the trade mark Zircaloy. Zirconium has very low absorption cross-section of thermal neutrons, high hardness, ductility and corrosion resistance. One of the main uses of zirconium alloys is in nuclear technology, as cladding of fuel rods in nuclear reactors, especially water reactors. A typical composition of nuclear-grade zirconium alloys is more than 95 weight percent zirconium and less than 2% of tin, niobium, iron, chromium, nickel and other metals, which are added to improve mechanical properties and corrosion resistance.





CHEMICAL COMPOSITIONS (NOMINAL)



Type Zr+Hf Hf Fe+Cr H N C O Nb
Zr702 >99.2 <4.5 <0.2 <0.005 <0.025 <0.05 <0.16 /
Zr705 95.5 <4.5 <0.2 <0.005 <0.025 <0.05 <0.18 2.0-3.0

PHYSICAL PROPERTIES (Standard)

Density: 6.51g/cc
Melting Point: 1852°C
Thermal Conductivity: 22W/(m °C)
Elastic bend modulus: 99.3GPa
Thermal Expansions: 5.4x10 /°C



PARAMETERS (STANDARD)

  • Executive standard: ASME SB-658 / ASTM B658-07

  • Zr alloy pipe outer diameter 6.0-114mm

  • Zr alloy pipe wall thickness 0.3-8.0 mm

  • Zr alloy pipe length ≤ 18000mm

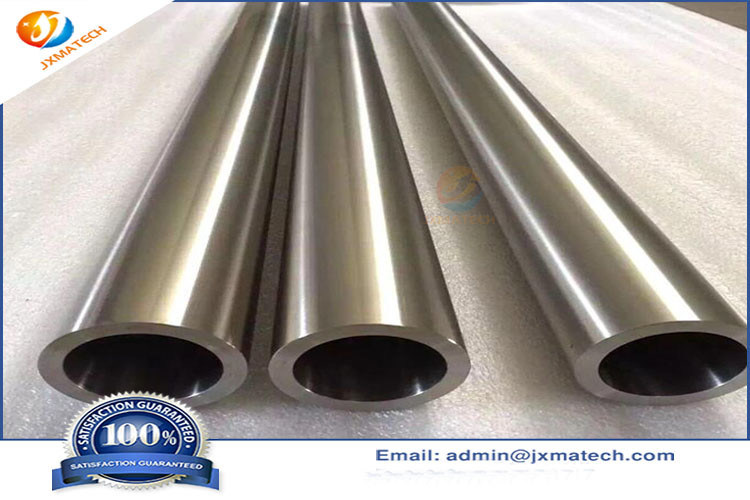

Zr Alloy Pipe Picture:

UNS R60705 Zr Alloy Pipe For Industrial Corrosive Pipeline Systems ASME SB523 Standard 0UNS R60705 Zr Alloy Pipe For Industrial Corrosive Pipeline Systems ASME SB523 Standard 1UNS R60705 Zr Alloy Pipe For Industrial Corrosive Pipeline Systems ASME SB523 Standard 2

APPLICATIONS



Zirconium alloys are corrosion resistant and biocompatible, and therefore can be used for body implants. In one particular application, a Zr-2.5Nb alloy is formed into a knee or hip implant and then oxidized to produce a hard ceramic surface for use in bearing against a polyethylene component. This oxidized zirconium alloy material provides the beneficial surface properties of a ceramic (reduced friction and increased abrasion resistance), while retaining the beneficial bulk properties of the underlying metal (manufacturability, fracture toughness, and ductility), providing a good solution for these medical implant applications.



Zr705 vs Zr702


Zr702 and zr705 should be ASTM numbers. The only difference in composition is that the oxygen content of zr705 is a little higher, Zr702 is less than 0.16, and zr705 is less than 0.18. However, the mechanical properties of zr705 are better than that of Zr702. There is not much difference in corrosion resistance
