UNS R60702 Zr702 Annealed Zirconium Sheet Corrosion Resistance

Product Details:
Place of Origin: China
Brand Name: Fanmetal
Certification: ASTMB551
Model Number: Zirconium Sheet With High Quality And Good Price
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: 10-100USD/kg
Packaging Details: plywood cases
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 10ton month

Detail Information

Material: Zirconium Sheet With High Quality And Good Price Size: As Per Request
Surface: Polished MOQ: As Per Request
High Light:

Annealed Zirconium Sheet

,

Zr702 Zirconium Sheet

,

UNS R60702 Zirconium Sheet

Product Description

Zirconium Sheet With High Quality And Good Price

Zirconium Sheets from XINXIANG FANMETAL have a number of advantages over sheets of other metals. For starters, zirconium is quite soft and malleable at room temperature and pressure, making our zirconium sheet easy to work with. Pure elemental zirconium also has a very high melting point, making it ideal for use in high-temperature applications like refractories, furnaces and as cladding on jet engines and nuclear reactors.

Resistant to corrosion by acids, alkalis and solvents, and even able to resist the corrosion caused by seawater, zirconium sheet is the ideal choice for ladding when caustic environments and high temperatures must be contended with.

Zirconium has a small thermal neutron capture cross-section and outstanding nuclear performance. It is an indispensable material for the development of the atomic energy industry and can be used as a reactor core structural material. Zirconium powder is easy to burn in the air and can be used as a detonator and smokeless powder. Zirconium can be used as an additive for high-quality steel to deoxidize and desulfurize, and is also a component of armored steel, artillery steel, stainless steel and heat-resistant steel. Zirconium is an important alloying element of magnesium alloys, which can improve the tensile strength and processing performance of magnesium alloys.

Zirconium is a rare metal with amazing corrosion resistance, extremely high melting point, ultra-high hardness and strength, etc. It is widely used in the fields of aerospace, military industry, nuclear reaction, and atomic energy. The corrosion-resistant and high-resistant titanium products used on "Shenzhou VI" are far less corrosion-resistant than zirconium. Its melting point is about 1600 degrees, while the melting point of zirconium is above 1800 degrees, and the melting point of zirconium dioxide is as high as 2700. Therefore, as an aerospace material, zirconium has much better performance in all aspects than titanium.

Zirconium Sheet Physical Properties

Material State Rm(≥)/MPa Rp0.2(Pa A50mm(≥)/%

Zirconium 702

(UNS R60702)

annealed 379 207 16

Zirconium 704

(UNS R60704)

annealed 413 241 14

Zirconium 705

(UNS R60705)

annealed 552 379 16

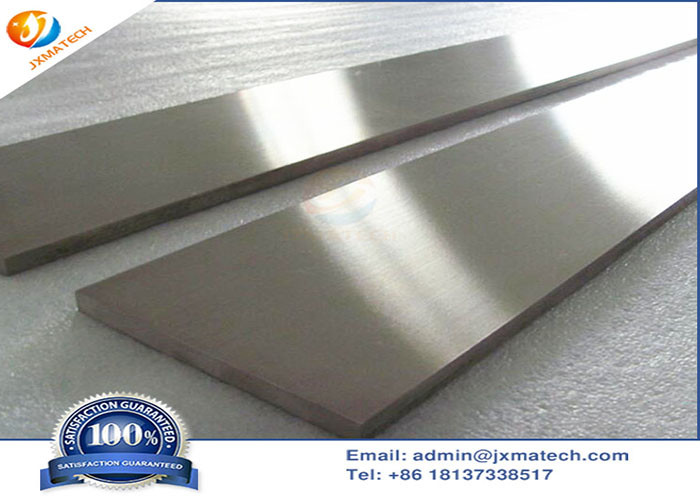

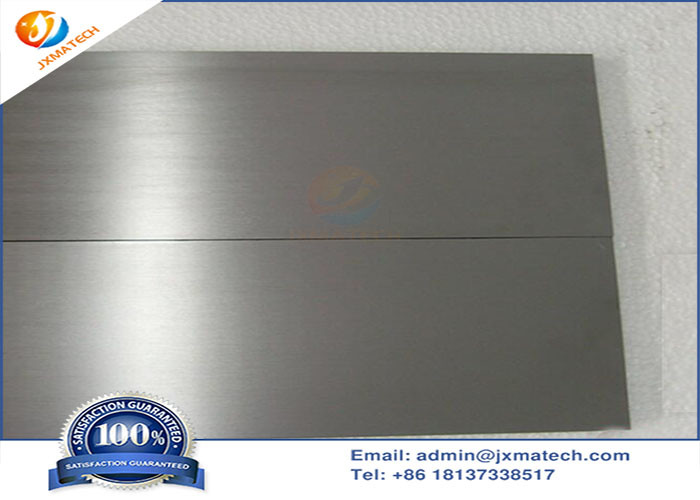

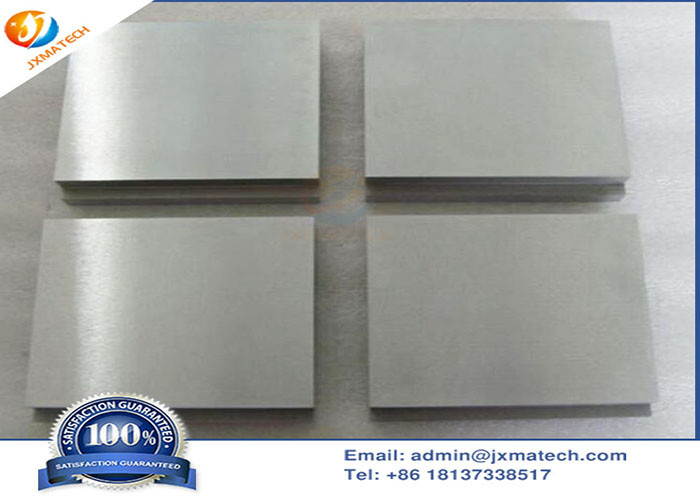

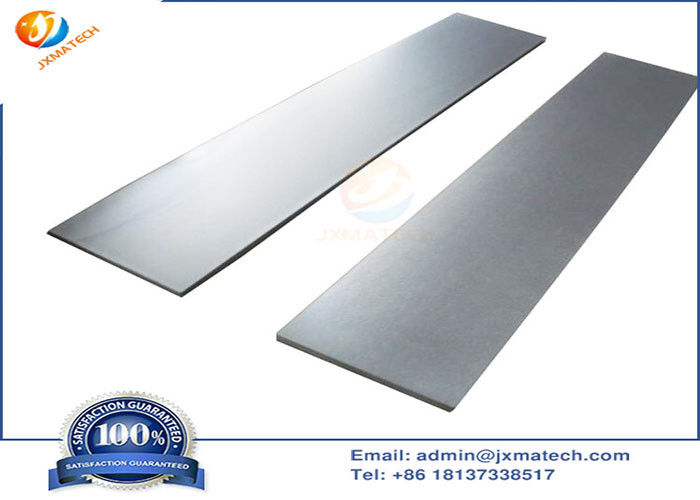

Zirconium Sheet Picture:

UNS R60702 Zr702 Annealed Zirconium Sheet Corrosion Resistance 0UNS R60702 Zr702 Annealed Zirconium Sheet Corrosion Resistance 1
