Home ProductsZirconium PlateIndustry 702 Zirconium Products Plate 95%~99.5% Purity
Industry 702 Zirconium Products Plate 95%~99.5% Purity
Industry 702 Zirconium Products Plate 95%~99.5% Purity
Industry 702 Zirconium Products Plate 95%~99.5% Purity Industry 702 Zirconium Products Plate 95%~99.5% Purity Industry 702 Zirconium Products Plate 95%~99.5% Purity Industry 702 Zirconium Products Plate 95%~99.5% Purity Industry 702 Zirconium Products Plate 95%~99.5% Purity

Industry 702 Zirconium Products Plate 95%~99.5% Purity

Product Details:
Place of Origin: China
Brand Name: jx
Certification: ASTMB551
Model Number: Buy Premium 702 Zirconium Plate For Industry
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: 10-100USD/kg
Packaging Details: plywood cases
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 10ton month
Contact Now

Detail Information
Name: Buy Premium 702 Zirconium Plate For Industry Application:: Power Plants, Subsea Environments
Purity:: 95%~99.5% Standard:: ASTM B550, R60702, R60704 And R60705
High Light:

702 Zirconium Products Plate

,

99.5% Zirconium Plates

,

95% Zirconium Plates

Product Description

Buy Premium 702 Zirconium Plate for Industry

Buy Premium 702 zirconium plate for Industry (Zr) is a silver metal with a density of 6.52 g/cm3. Zr has a very small neutron absorption cross section and a relatively high melting point (1855°C or 3371°F), making zirconium a great material for nuclear power rods. Zirconium (Zr) is a silver metal with a density of 6.52 g/cm3. Zr has a very small neutron absorption cross section and a relatively high melting point (1855°C or 3371°F), making zirconium a great material for nuclear power rods

Used to make high-temperature superconducting materials such as heat exchangers.

• Electrode assemblies, foils, flanges, bolts, tubes and rods for special applications.

•Widely used in medical equipment, such as zirconium implants.

Zirconium Plate Properties

Standard ASTM B551
Grade R60702, R60704, R60705
Thickness 0.5mm - 50 mm
Width 10mm - 2500mm
Technology Hot-rolled, cold-rolled, hot forging, machining
Condition Annealed (M),cold rolled(Y), hot rolled(R) , quenching(C)
Surface Chemically cleaning or machined to be bright. Dependent on different thicknesses.



Mechanical Properties of Zr & Zr Alloy Strip, Sheet & Plate

ASTM B551 Tensile Strength Yield Strength Elongation Bend Test
Grade ksi MPa ksi MPa min. % *T
R60700 ≤55 ≤380 ≤44 ≤305 20 5T
R60702 ≥55 ≥380 ≥30 ≥205 16 5T
R60704 ≥60 ≥415 ≥35 ≥240 14 5T
R60705 ≥80 ≥550 ≥55 ≥380 16 3T
R60706 ≥74 ≥510 ≥50 ≥345 14 2.5T

Our also provides other zirconium and zirconium alloy products, such as Zirconium tube, Zirconium foil, Zirconium rod, Zirconium wire, Zirconium flange, zirconium Pellets, Zirconium Ring, Zirconium Spring, Zirconium plate, Zirconium bar, Zirconium Crucible, Zirconium Flange, Zirconium sputtering targets, Zirconium pipe fittings, other machined and tailor-made zirconium parts, etc

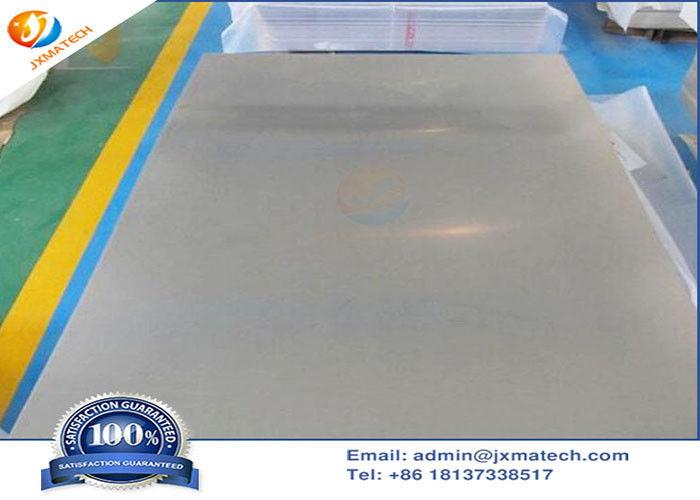

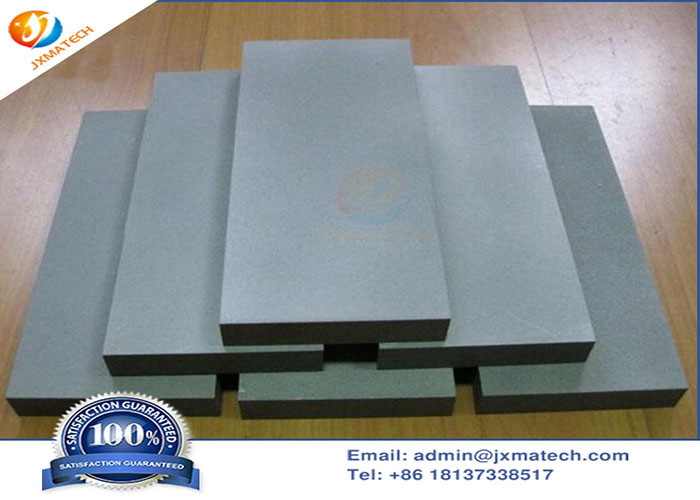

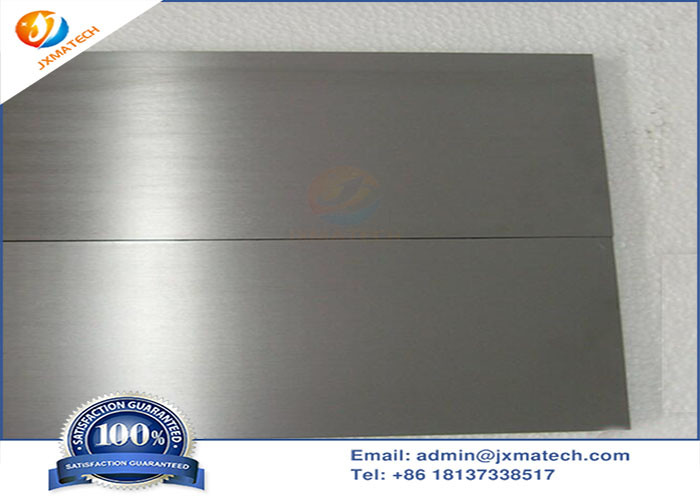

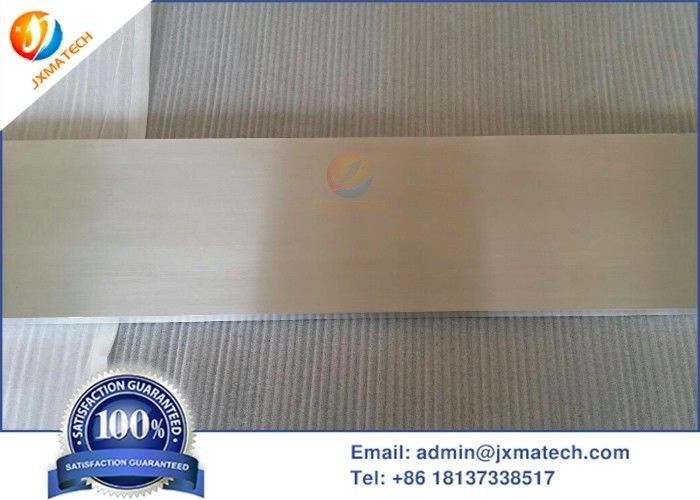

Zirconium Plate Picture:

Industry 702 Zirconium Products Plate 95%~99.5% Purity 0Industry 702 Zirconium Products Plate 95%~99.5% Purity 1



Specifications Of Zirconium Plate

Material Zr702, Zr704, Zr705
Thickness 0.5~50mm, or 0.02"~2"
Width <1000mm>
Length <2000mm>


Composition of our Zirconium materials

  Zr 702 Zr 704 Zr 705 Zircaloy-2 Zircaloy-4
Sn / 1~2% 1~2% 1.2~1.7% 1.2~1.7%
Fe <0> 0.1~0.2% <0> 0.07~0.2% 0.07~0.2%
Cr <0> 0.1~0.2% <0> 0.05~0.15% 0.05~0.15%
Ni / / / 0.03~0.08% <0>
Hf 1~2.5% <4> <4>
Nb / / 2~3%
Zn+Hf ~99.5% ~97.5% ~95.5% ~98% ~98%


Zirconium Sheet and Plate 705702 Physical Properties

Material State Rm(≥)/MPa Rp0.2(Pa A50mm(≥)/%

Zirconium 702

(UNS R60702)

 annealed 379 207 16

Zirconium 704

(UNS R60704)

 annealed 413 241 14

Zirconium 705

(UNS R60705)

 annealed 552 379 16
