M1.5, M2 Din 912 DIN 933 Titanium Alloy Products Hexagon Socket Fastener Nuts Washer

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Titanium Bolt
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: 10~200USD/kg
Packaging Details: Plywood Case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000kgs/M

Detail Information

Material: GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR23, Etc Standard: DIN912/933/7991/7984/6921 Etc
Surface: Polishing, Anodising, Black Oxide, Colouring Process: Hot Rolling / Forge / Machining
Heat Treatment: Solution Annealed Size: M1~M30 Or Customized
Strength Class: 8.8/10.9/12.9 Titanium Threads‎: Titanium Threads‎: ‎METRIC, BSW, BSF, UNC
High Light:

titanium alloy Hexagon Socket Fastener

,

titanium alloy screw Socket Fastener

,

DIN 933 Hexagon Socket Fastener

Product Description

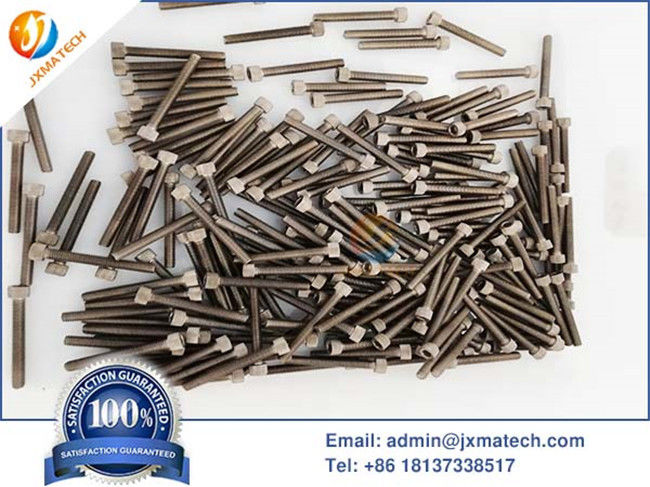

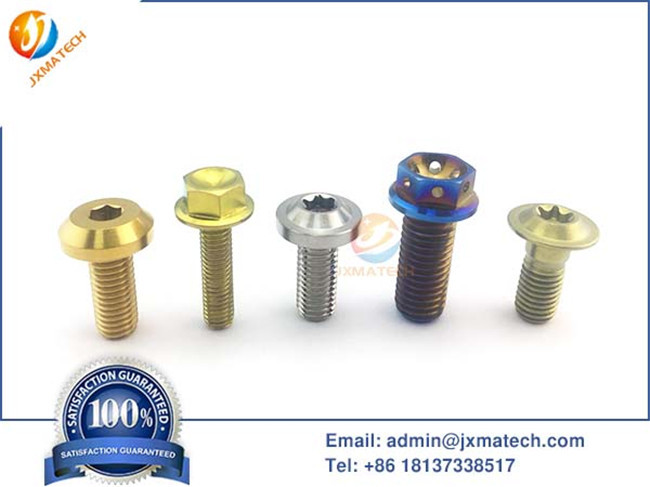

Titanium Bolt Hexagon socket fastener Nuts Washer M1.5, M2 DIN 912 DIN 933

Titanium Bolts specifications: Titanium bolt, titanium hexagon socket, titanium hexagon socket, titanium cross countersunk head, titanium flat head screw, titanium stopper screw . DIN and ISO standard such asDIN 912, DIN 933 , DIN 971 etc. Size: M1, M2 , M3 ~M30. Material Grade: GR1, GR2, GR3,GR4, GR5, GR7, GR9, GR12, GR16, GR17, GR23, Ti-6Al-4V ELI, Ti-3-8-6-4-4, Ti-6-2-4-2, Ti-6-6-2, Ti-5-2.5



  • Description



M1 screw M2 screw M3 screw M5 screw M30 screw

Processing method: Screw anode , processing screw

Grade: Gr1 titanium screw Gr2 titanium screw Gr5 titanium screw Gr23 titanium screw, Tc4 titanium screw

Name: titanium standard hexagonal nut, flange face nut, nylon lock nut, welding nut, cap nut, cutting, eye bolt, nut, wing nut, flat washer, spring washer, tightening, Cotter pin, cylindrical pin, hex bolt, hexagon socket head bolt, stud bolt, round head self-tapping, countersunk head self-tapping, round head nail, countersunk head nail, etc. and non-standard titanium cap), titanium nut , Titanium flat pad, titanium stop, joint screw, titanium hose clamp, titanium spring pad, titanium tube head, titanium plate, titanium blue, titanium screw, titanium hanger, slotted screw anti-corrosion screw





  • Chemical Compositions:
  N C H Fe O Al V Pa Mo Ni Ti
Gr 1 0.03 0.08 0.015 0.20 0.18 / / / / / bal
Gr 2 0.03 0.08 0.015 0.30 0.25 / / / / / bal
Gr 3 0.05 0.08 0.015 0.30 0.35 / / / / / bal
Gr 4 0.05 0.08 0.015 0.50 0.40 / / / / / bal
Gr 5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 / / / bal
Gr 7 0.03 0.08 0.015 0.30 0.25 / / 0.12~0.25 / / bal
Gr 9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
Gr12 0.03 0.08 0.015 0.30 0.25 / / / 0.2~0.4 0.6~0.9 bal




  • Titanium anode
  • Titanium Bar
  • Titanium ball
  • Titanium bolt and nut
  • Titanium flange
  • Titanium tube
  • Titanium sheet
  • Titanium wire
  • Titanium ring
  • Titanium tube sheet
  • Titanium foil
  • Titanium pipe fittings
  • Titanium coil tube
  • Titanium Wire Mesh
