Wear Resistance Ball API Cobalt Chrome Non Ferrous Alloys
Wear Resistance Ball API Cobalt Chrome Non Ferrous Alloys
Wear Resistance Ball API Cobalt Chrome Non Ferrous Alloys Wear Resistance Ball API Cobalt Chrome Non Ferrous Alloys Wear Resistance Ball API Cobalt Chrome Non Ferrous Alloys

Wear Resistance Ball API Cobalt Chrome Non Ferrous Alloys

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Cobalt Chrome Alloy​ Seat And Ball
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Packaging Details: Plywood Case
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000000kgs/M
Contact Now

Detail Information
Product Name: Cobalt Chrome Alloy​ Seat And Ball Material: API Standard Cobalt Alloy Valve Seats And Valve Balls
Properties: Wear And Corrosion Resistance, High Temperature Resistance Density: 8.6-8.8g/cm3
Application: Oil And Gas Industry Valve Pump Color:: Grey And Silver
Length: As Customer′s Request Certification: ISO9001:2018
High Light:

Corrosion Resistance Non Ferrous Alloys

,

Cobalt Chrome Non Ferrous Alloys

Product Description

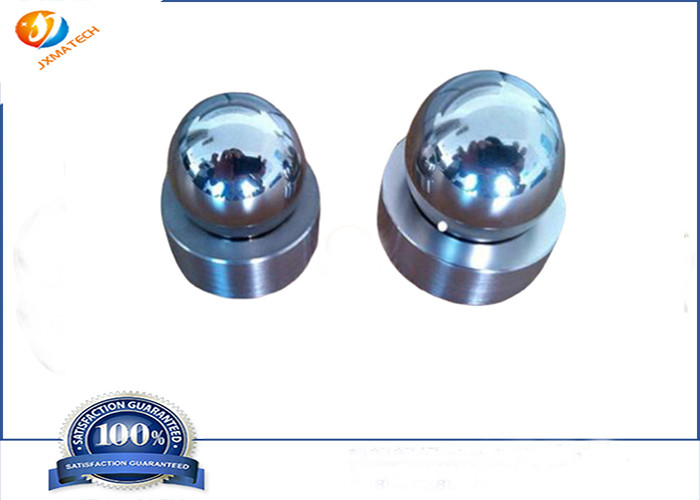

​Cobalt Chrome Alloy​ Seat And Ball



Cobalt Chrome Alloy​ Seat And Ball are designed and manufactured according to API 11AX Specification for Subsurface Sucker Rod Pumps and Fittings(current edition). Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of contact



 Feasures

1. High temperature resistance

The strength keeps stable up to 800℃ and it can even momentarily used at 1200℃.

2. Wear resistance

Due mainly to the unique inherent characteristics of the hard carbide phase dispersed in a

CoCr alloy matrix, it has exceptional wear and galling resistance.

3. Corrosion resistance

This exellent and lovely property allows this kind of material parts to be used in oil&gas, slurry, acid liquid and any other mediums.

4..We use Precision Cast Process to produce the Co alloy parts;

​Cobalt Chrome Alloy​ Seat And Ball Chemical Composition:

Composition (%) C Si Mn Cr Ni S P Mo W Fe Co

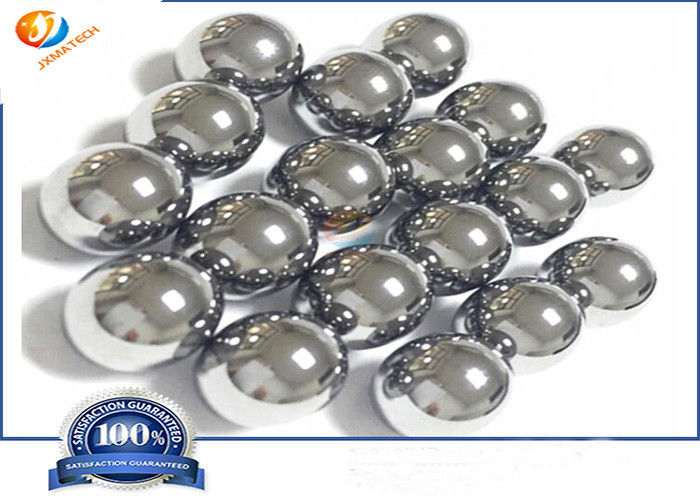

Stellite 20

(Balls)

 2.30-2.65 ≤1.0 ≤1.0 31.0-34.0 ≤2.5 ≤0.04 ≤0.04 ≤1.0 16.0-18.0 ≤2.5 Bal.

CoCr Alloy

(Seats)

 2.20-2.50 ≤1.0 ≤1.0 29.0-34.0 ≤3.0 ≤0.04 ≤0.04 ≤1.0 11.0-14.0 ≤2.5 Bal.



Wear Resistance Ball API Cobalt Chrome Non Ferrous Alloys 0



Wear Resistance Ball API Cobalt Chrome Non Ferrous Alloys 1

The above specifications can not cover your demands? No problem. Just tell us what you want. Our design and production capability can make it completely as your needs.
