80/20 CuW Alloy Tungsten Copper Rods Are Stock

Product Details:
Place of Origin: China
Brand Name: JX
Certification: ISO
Model Number: CuW Alloy
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: according to actual products
Packaging Details: standard packing
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 300kgs month

Detail Information

Size: As Request Quality: ISO9001:2008
Surface: Polishing,burnishing,black Surface Delivery Time: 25days
Packing: Standard Exporting Name: CuW Alloy
High Light:

80/20 CuW Alloy

,

80/20 Tungsten Copper Rods

,

80/20 tungsten copper bar

Product Description

W80Cu20 CuW Alloy Tungsten Copper Rods Are Stock



CuW Alloy is made of fine tungsten and copper powders, refined by first-class soaking and sintering process, can withstand high temperature and high stress of nearly 2000 degrees, has high melting point, high hardness, anti-burning and good anti-adhesion, and the surface finish of electro-erosion products High, high precision, low loss.

Specification:

Surface: Ground, polished

Dia: 2-100mm.

Length: 10-500mm

W/Cu: W(50-90%)/Cu(10-50%)

Character:

1.better heat resistant;

2.better ablate-resistant;

3.high intensity

4.high density ;

5.excellent thermal and electrical conductivity ;

6.easy to be machined

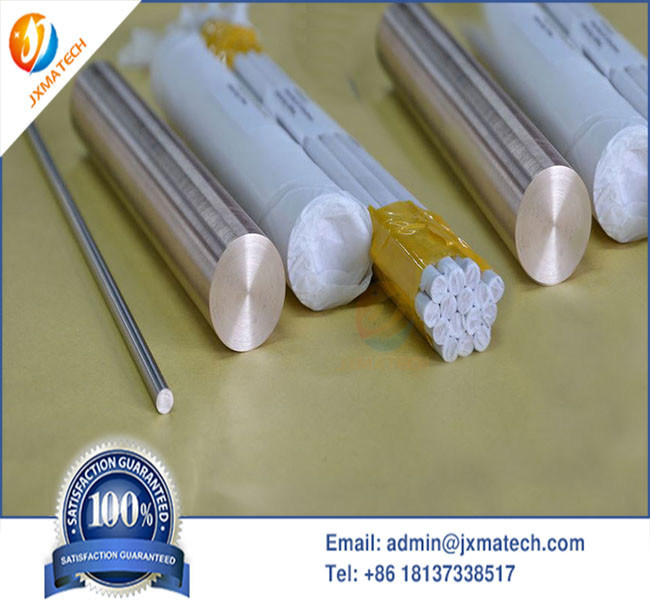

CuW Alloy Picture:
80/20 CuW Alloy Tungsten Copper Rods Are Stock 080/20 CuW Alloy Tungsten Copper Rods Are Stock 180/20 CuW Alloy Tungsten Copper Rods Are Stock 2

CuW Alloy is widely used as the contact and protection ring of high-voltage, ultra-hydraulic switches and circuit breakers, as the material of thick anvil of electric heating pier, automatic submerged arc welding contact tip, plasma cutting machine nozzle, electric welding machine, butt welding machine welding head , Roll welding wheel, sealed gas electrode and spark electrode, spot welding, butt welding materials, etc.

Tungsten-copper alloy combines the advantages of metal tungsten and copper. Among them, tungsten has a high melting point (the melting point of tungsten is 3410°C, the melting point of copper is 1080°C), and the density is high (the density of tungsten is 19.25g/cm, and the density of copper is 8.92/cm3); Copper has excellent electrical and thermal conductivity. Tungsten-copper alloy (general range of composition is WCu7~WCu50) has uniform microstructure, high temperature resistance, high strength, arc ablation resistance, high density; moderate electrical and thermal conductivity, and is widely used in military high temperature resistant materials, Electrical alloys, electrical machining electrodes, and microelectronic materials for high-voltage switches are widely used as parts and components in aerospace, aviation, electronics, electric power, metallurgy, machinery, sports equipment and other industries.
