W70Cu30 14g/cm3 CuW Alloy Rod Tungsten Copper Rod

Product Details:
Place of Origin: China
Brand Name: JX
Certification: ISO
Model Number: Tungsten Copper Alloy Rod
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: according to actual products
Packaging Details: standard packing
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 300kgs month

Detail Information

Size: As Request Quality: ISO9001:2008
Surface: Polishing,burnishing,black Surface Delivery Time: 25days
Packing: Standard Exporting Name: Tungsten Copper Alloy Rod CuW Alloy Rod Tungsten Copper Rod
High Light:

14g/Cm3 CuW Alloy Rod

,

14g/Cm3 Tungsten Copper Rod

,

W70Cu30 Tungsten Copper Rod

Product Description

Tungsten Copper Alloy Rod CuW Alloy Rod Tungsten Copper Rod



Tungsten Copper Alloy Rod contains 6-50% (weight ratio) of copper, and has the advantages of tungsten and copper: high temperature resistance, arc ablation resistance, high strength, high specific gravity, good electrical and thermal conductivity, small thermal expansion, easy cutting and processing, and With the characteristics of sweating and cooling, it is widely used in machinery, electric power, electronics, metallurgy, aerospace and other industries.

Tungsten copper alloys are widely used in:
Arc contacts and vacuum contacts of high and medium voltage switches or circuit breakers
Electrodes for EDM
High temperature resistant materials
Radiator used in electronic equipment
Electrodes for resistance welding
Electronic packaging and heat sink materials
High-power devices such as microwave, laser, radio frequency, optical communication, etc.
High-performance lead frame
Thermal control boards and radiators for military and civilian thermal control devices

Tungsten Copper Alloy Rod contains 6-50% (weight ratio) of copper, and has the advantages of tungsten and copper: high temperature resistance, arc ablation resistance, high strength, high specific gravity, good electrical and thermal conductivity, low thermal expansion, easy cutting and processing, and With the characteristics of sweating and cooling, it is widely used in machinery, electric power, electronics, metallurgy, aerospace and other industries.

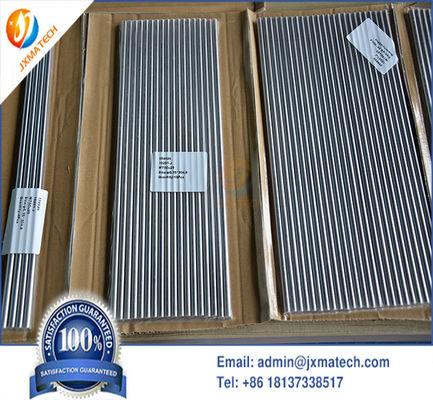

Tungsten Copper Alloy Rod Picture:

W70Cu30 14g/cm3 CuW Alloy Rod Tungsten Copper Rod 0

W70Cu30 14g/cm3 CuW Alloy Rod Tungsten Copper Rod 1W70Cu30 14g/cm3 CuW Alloy Rod Tungsten Copper Rod 2

The physical properties of tungsten copper alloy:
Tungsten Copper Alloy (Tungsten W=70 Copper Cu=30)
Conductivity%IACS≥42
Density=14g/cm3
Softening temperature℃≥700
Tensile strength≥66Mpa
Hardness ≥184HV
Tungsten-copper alloy can withstand high temperature and high stress of nearly 2000 degrees, has the characteristics of high melting point, high hardness, anti-burning and good anti-adhesion. The electro-erosion products have high surface finish, high precision and low loss.

The production process of tungsten copper alloy:
Tungsten copper is an alloy of tungsten and copper. The tungsten-copper alloy is made of fine tungsten and copper powders, through the first-class infiltration sintering process, and refined by the process of isostatic pressing-high temperature sintering tungsten skeleton-infiltration copper.
