Round Kovar Based Alloy Bar 4j29 Expansion Soft

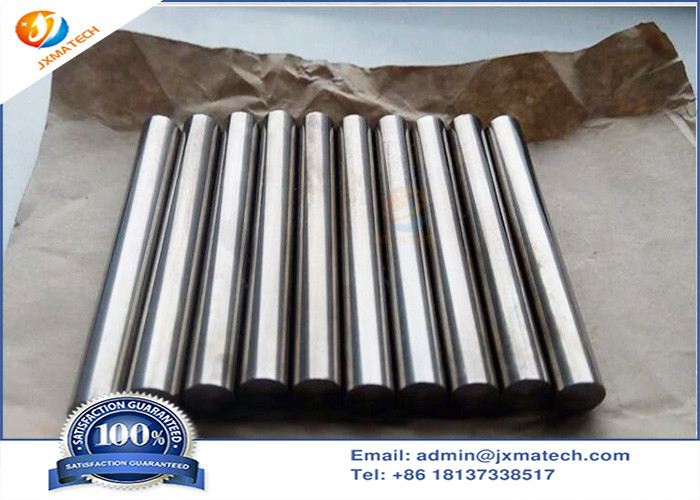

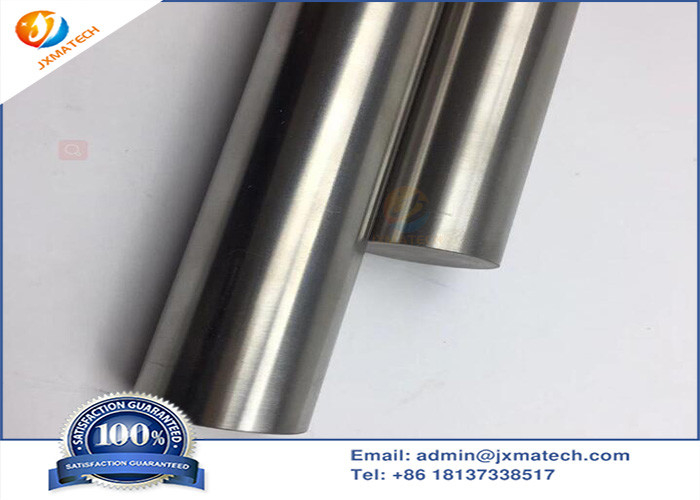

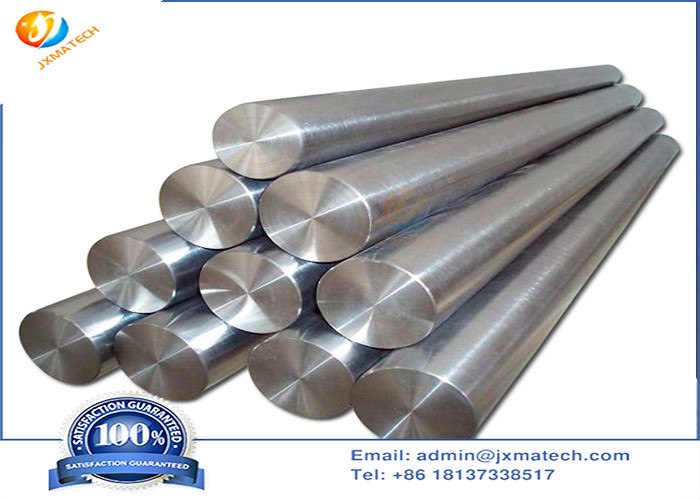

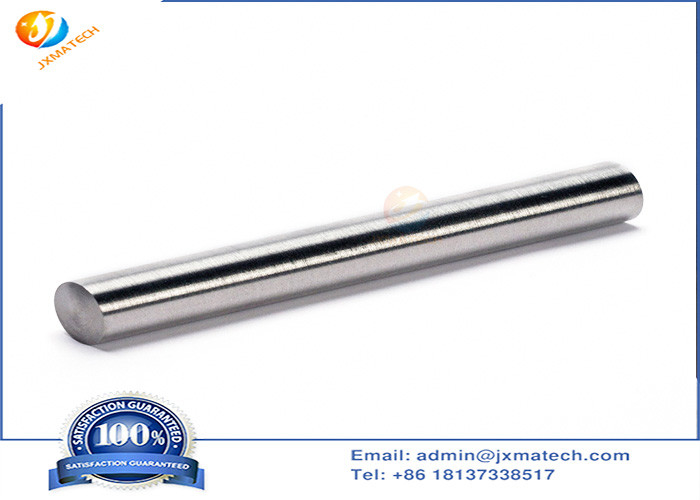

Kovar Alloy Round Bar  Picture:

Heat treatment system
The performance test samples for the expansion coefficient and low temperature microstructure stability specified in the standard are heated to 900ºC±20ºC in a hydrogen atmosphere, kept for 1h, then heated to 1100ºC±20ºC, and kept for 15min, at a temperature of not more than 5ºC/min The speed is cooled to below 200 ºC.

Application overview
The alloy is a typical Fe-Ni-Co hard glass sealing alloy commonly used in the world. It has been used for a long time in the aviation factory with stable performance. It is mainly used for glass sealing of electric vacuum components such as launch tubes, oscillator tubes, ignition tubes, magnetrons, transistors, sealed plugs, relays, integrated circuit lead wires, chassis, shells, brackets, etc. In the application, the selected glass should be matched with the expansion coefficient of the alloy. Strictly test its low temperature tissue stability according to the use temperature. Appropriate heat treatment should be carried out during processing to ensure that the material has good deep drawing properties. When using forgings, their air tightness should be strictly checked.
