High Coefficient Of Thermal Expansion Co50V2 1J22 Permalloy Plate
High Coefficient Of Thermal Expansion Co50V2 1J22 Permalloy Plate
High Coefficient Of Thermal Expansion Co50V2 1J22 Permalloy Plate High Coefficient Of Thermal Expansion Co50V2 1J22 Permalloy Plate High Coefficient Of Thermal Expansion Co50V2 1J22 Permalloy Plate High Coefficient Of Thermal Expansion Co50V2 1J22 Permalloy Plate High Coefficient Of Thermal Expansion Co50V2 1J22 Permalloy Plate

High Coefficient Of Thermal Expansion Co50V2 1J22 Permalloy Plate

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: 1J22 - Permalloy Plate
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, D/P, L/C, D/A, Western Union, MoneyGram
Supply Ability: 2000 kg per month
Contact Now

Detail Information
Material: 1J22 Permalloy Plate Size: Dia 4 - 100mm X L
Density: 8.21 G/cc Tensile Strength: 490 MPa
Hardness: 94 HRB Elongation: 30%
Electrical Resistivity: 426 Microhm-mm Applications: Industrial

Product Description

High Coefficient Of Thermal Expansion Co50V2 1J22 Permalloy Plate

1J22 Permalloy Plate is an iron cobalt soft magnetic alloy containing 50% cobalt, 1.4% ～ 1.8% vanadium and iron. This alloy has the highest magnetic saturation strength (2.4T), extremely high Curie temperature (Tc=980 ℃) and the maximum saturation magnetostriction coefficient (60 × 10-6).



Chemical Composition of 1J22 Permalloy Plate

Element

Min

Max

Carbon

--

0.01

Manganese

--

0.05

Silicon

--

0.05

Cobalt

--

48.75

Vanadium

--

1.90

Iron

Bal



Relative Grade of 1J22 Permalloy Plate

Grade U.K. Germany U.S.A. Russia Standard
1J22 Permendur Vacoflux 50 Supermendur
HiperCo50		 50КФ GB/T15002-1994

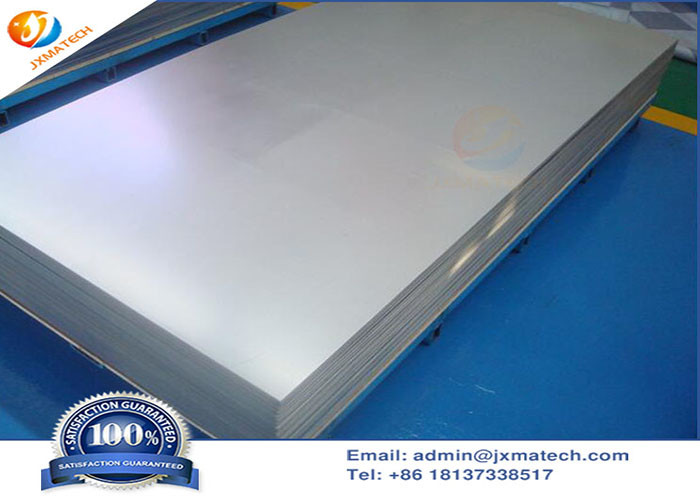

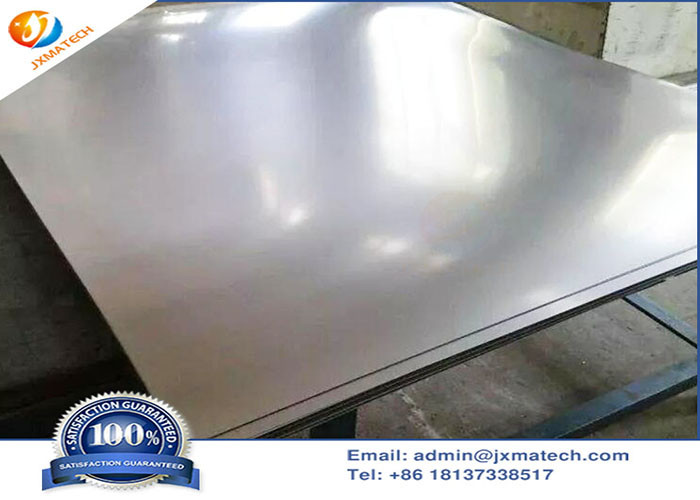

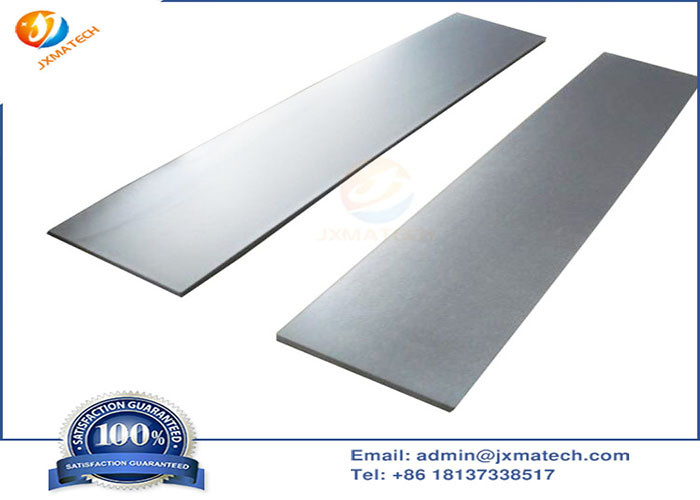

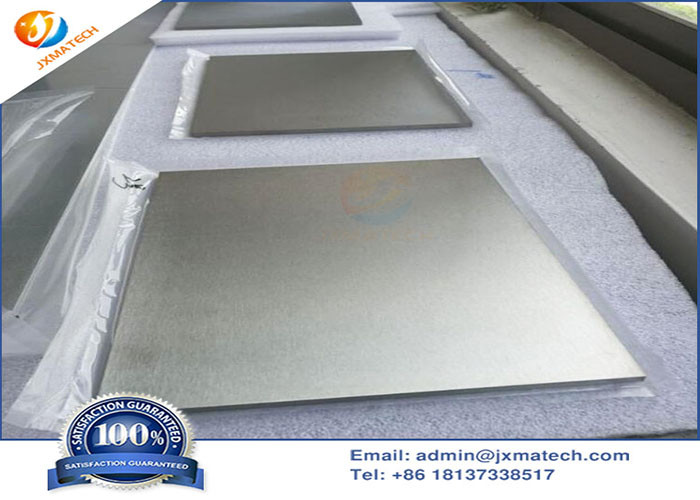

1J22 Permalloy Plate Picture:

High Coefficient Of Thermal Expansion Co50V2 1J22 Permalloy Plate 0High Coefficient Of Thermal Expansion Co50V2 1J22 Permalloy Plate 1

Application of 1J22 Permalloy Plate

Soft magnetic alloy is suitable for transmitting tube, oscillating tube, pilot tube, transistor, sealed plug, relay shell and other electric vacuum devices. It has a certain linear expansion coefficient in the temperature range of 20 ℃ - 450 ℃, and can match with hard glass to seal firmly.
