WCu 80/20 Copper Tungsten Alloy Products Tungsten Copper Rod

Product Details:
Place of Origin: China
Brand Name: JX
Certification: ISO
Model Number: WCu 80/20 Copper Tungsten Alloy Rod Tungsten Copper Rod
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: according to actual products
Packaging Details: standard packing
Delivery Time: 25days
Payment Terms: T/T
Supply Ability: 300kgs month

Detail Information

Size: As Request Shape: As Request
Specification:: ISO9001: 2000 Delivery Time: 25days
Packing: Standard Exporting Name: WCu 80/20 Copper Tungsten Alloy Rod Tungsten Copper Rod
High Light:

WCu 80/20 Tungsten Alloy Products


WCu 80/20 Tungsten Copper Rod


hardness Tungsten Copper Rod

Product Description

WCu 80/20 Copper Tungsten Alloy Rod Tungsten Copper Rod

Tungsten copper parts provided by us are all with these properties.The electrical and thermal properties of the alloy vary with different proportions. Copper increases the thermal conductivity, which plays a huge part when being used in circuit breakers.
Electrical resistivity with an increase in the percentage of tungsten present in the alloy, ranging from 3.16 at 55% tungsten to 6.1 when the alloy contains 90% tungsten.
An increase in tungsten leads to an increase in ultimate tensile strength up until the alloy reaches 80% tungsten and 20% copper with an ultimate tensile strength of 663 MPa.
After this mixture of copper and tungsten, the ultimate tensile strength then begins to decrease fairly rapidly.
Manufacturing Process
Part of the mixed powder sintering process copper infiltration method generally has the following two: tungsten copper plates image Cu powder and 0.5% to 2.5% additives (typically nickel powder) - press molding - sintering - copper infiltration. The process is simple; this method is suitable for manufacturing Cu> 20% tungsten-copper composite.
 Copper Tungsten Alloy Rod Chemical Composition:

Code No.Chemical Composition %Mechanical properties
CUImpurityWDensity (g/cm3 )Hardness HBRES( cm)Conductivity IACS/ %TRS/ Mpa
CuW(55)45± 2.00.5Balance12.301253.549

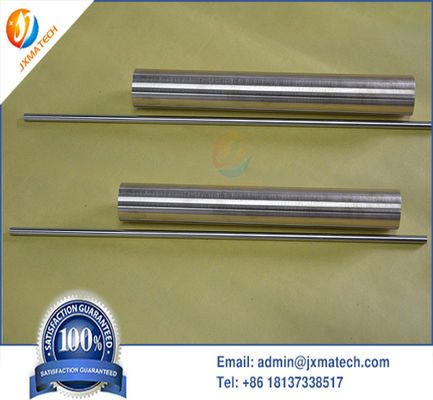

Copper Tungsten Alloy Rod Picture:
WCu 80/20 Copper Tungsten Alloy Products Tungsten Copper Rod 0WCu 80/20 Copper Tungsten Alloy Products Tungsten Copper Rod 1

Various methods to the production of tungsten copper materials, copper distribution along the tungsten grain boundaries, the tungsten skeleton strength is not as good as the high-temperature sintering method, as this method of asking too much of raw materials, ingredients, or the product will contain more impurities and gases. BW powder - +2.5% Cu powder + static acid - was added to the appropriate melt composite adhesive agent (containing 35% polypropylene, 60% paraffin wax, 5% satiric acid) - the cooling granulation injection form - binder removal - heptanes - 3C% / min heating to 500C, 10C/min heating to 900C - transferred to the high-temperature sintering furnace cooling - heating 10C/min to 1030C - to 10C/min heated to 1200-16200C Melting leaching - cooled to room temperature. The manufacturing process of tungsten copper plates are according to these steps, which owns properties of tungsten and copper.
Copper Tungsten Alloy Rod is used in a product or part requires high heat resistance, low thermal expansion and high electrical or thermal conductivity. Tungsten copper is used to fabricate engines and electrical devices. It is also used in the fields of aviation and spaceflight. Electrodes, refractory parts, heat sinks, rocket parts and electrical contacts are all made by copper tungsten alloy. The alloy is also made into sheet metal, tubing and plate metal. Copper tungsten alloy is used to make contacts for both high and medium voltage electrical devices, and for high speed steel devices and switches.
WCu rods picture
WCu rods have been widely used in Spark Erosion and Electrical Discharge Machining (EDM) process. In general, this process is used with graphite, but tungsten has a high melting point.
This allows the CuW electrodes to have a longer service life than the graphite electrodes. This is crucial when the electrodes have been processed with complex machining.
Since the electrodes are susceptible to wear the electrodes provide more geometrical accuracy than the other electrodes.
These properties also let the rods and tubes manufactured for spark erosion be smaller in diameter and longer in length since the material is less likely to chip and warp.
We specialize in manufacturing and offering tungsten related products for more than 20 years, and can provide WCu alloy as bellows:
Copper Tungsten Alloy Electrode
Our copper tungssten alloy electrode is suitable for EDM machining of those materials.
Advantages: low wear, high contour sharpness,good machinability.
Tungsten copper electrode is a good use of high-purity tungsten metal powder and high purity characteristics of the plasticity of copper powder.
Tungsten copper electrodes can be divided into EDM electrode, high-voltage electrode discharge tube and electronic packaging materials.
