K20 / K30 Tungsten Carbide Sheet Metal With High Wear Resistance

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: K20/K30 Tungsten Carbide Sheet Metal
Payment & Shipping Terms:
Minimum Order Quantity: 30 kg
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15-20 days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 kg per month

Detail Information

Product Name: Tungsten Carbide Sheet Metal Grade: K20 /K30
Density: 14.5 G/cc Standard: ASTM B578-2009
Hardness: 96 HAR Elastic Modulus: 465 GPa
Packaging: Export Plywood Cases Application: High-Temperature Part
High Light:

K20 Tungsten Carbide Sheet


96 HAR Tungsten Carbide Sheet


High Temperature Tungsten Carbide Sheet

Product Description

K20/K30 Tungsten Carbide Sheet Metal With High Wear Resistance

Tungsten Carbide SheetAdvantage

  1. Excellent thermal stability.

  2. High temperature deformation resistance.

  3. Good chemical resistance.

  4. Good thermal shock resistance.

  5. High wear resistance, high hardness and impact toughness

  6.. High thermal conductivity.

  7. Excellent oxidation control ability.

  8.Strong high temperature corrosion resistance

Various grades are available according to customer requirements.

We have professional advanced production lines and testing equipment to ensure the high quality of our products.

Precision grinding and high polishing process


Tungsten Carbide Sheet Metal is mainly made of tungsten carbide and cobalt powder mixed by metallurgical methods, after milling, ball milling, pressing and sintering, the main alloy composition is WC and Co, tungsten steel plate for different purposes of WC and cobalt content is not consistent, widely used. Tungsten steel plate is one of the many materials of tungsten steel, because its shape is rectangular plate (or square), so it is called tungsten steel plate.



Grade & Technical Parameters of Tungsten Carbide Sheet Metal

Grade Co% Hardness
Flexural strength
Elastic modulus
Thermal expansion coefficient
JX10 10 91.7 14.4 4300 490 5.4 Copper, aluminum and other thin sheets with thickness less than 0.2mm
JX15 12 92.5 14.1 4500 460 5.8 Copper, aluminum, stainless steel, etc
JX20 13 90.6 14.1 4100 460 5.8 Strong applicability, copper, aluminum and other thin sheets
JX35A 12 89.8 14.2 3400 470 5.7 Q195, SPCC and other cold rolled sheets
JX36 15 89.4 13.8 3900 430 6.3 EI, SPCC and other cold rolled sheets
JX40A 12 88.9 14.2 3300 470 5.7 Q195, SPCC and other cold rolled plates, high-speed stamping dies and multi station progressive dies
JX45A 15 87.9 13.9 3200 440 6.1 Die for silicon steel sheet, cold rolled sheet, hardware and standard parts
JX55 20 86.4 13.5 3100 390 6.8 Silicon steel sheet, upper and lower punches

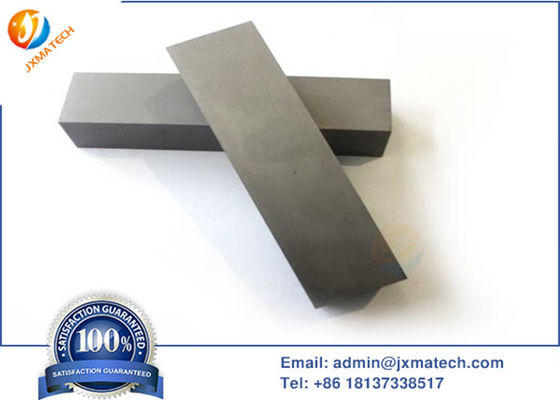

K20 / K30 Tungsten Carbide Sheet Metal With High Wear Resistance 0K20 / K30 Tungsten Carbide Sheet Metal With High Wear Resistance 1

The process flow of Tungsten Carbide Sheet Metal

Powder making → according to the formula requirements → wet grinding → mixing → grinding → drying → screening → adding molding agent → drying → screening after mixing → granulation → pressing → forming → sintering → forming (blank) → inspection → packaging → storage
