99.95 High Purity Molybdenum Products Semiconductor Base Sheets For Power Electronics

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Pure Molybdenum 99.95% type 361
Payment & Shipping Terms:
Minimum Order Quantity: 1kgs
Price: 40~100USD/kg
Packaging Details: Plywood Case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Molybdenum 361 Purity: 99.95% Min
Density: 10.2g/cm3 Standard: ASTM B386, AMS 7817
Surface: Alkali Cleaning, Ground Finished Bright Process: Hot Rolling Or Cold Rolling
Type: Power Metallurgy Thickness: 0.1mm Min
High Light:

molybdenum copper alloy

,

molybdenum wire mesh

Product Description

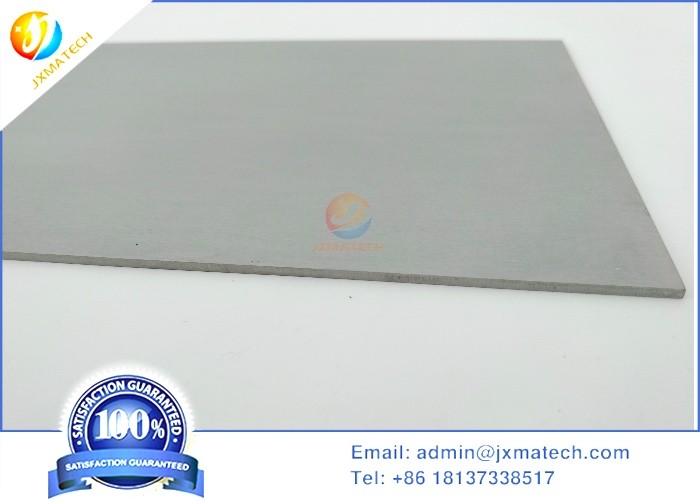

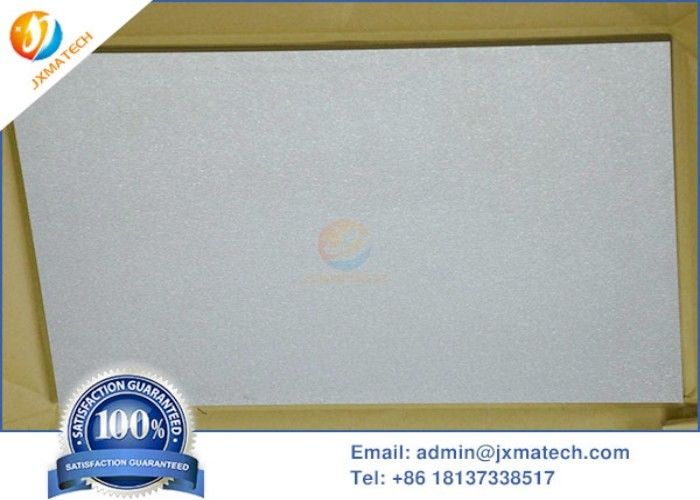

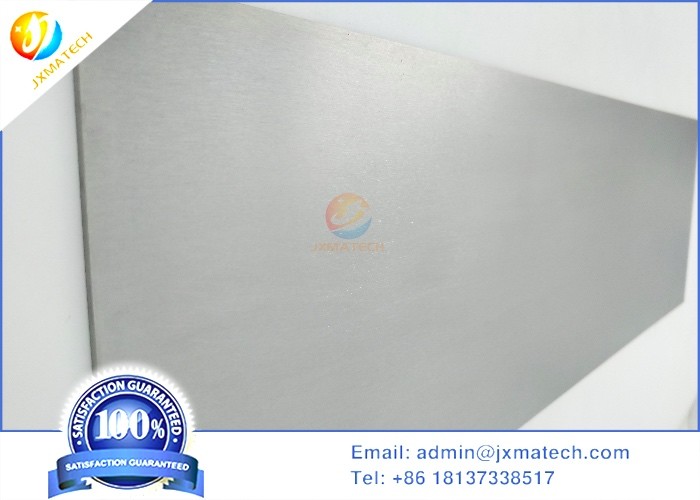

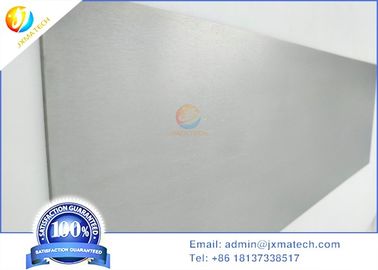

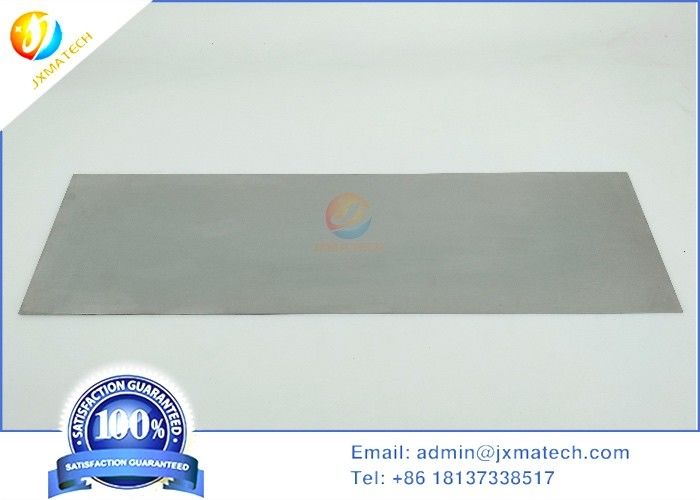

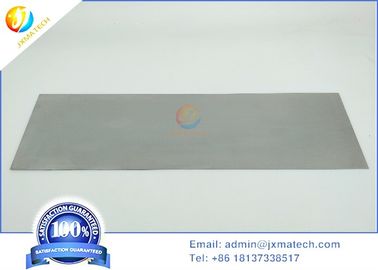

Molybdenum Sheet ASTM B386 type 361, Molybdenum 361 ground finished surface

Molybdenum sheet is widely used in the construction of furnace tooling and parts and as a feed stock for the fabrication of parts for the electronics and semiconductor industries. Standard availability is described below. We can supply molybdenum sheet as per customers' requests.



  • Description

Molybdenum Sheet

Molybdenum Plate, TZM Molybdenum Sheet

Molybdenum sheet is widely used in the construction of furnace tooling and parts and as a feed stock for the fabrication of parts for the electronics and semiconductor industries. Standard availability is described below. We can supply molybdenum sheet as per customers' requests.

Molybdenum sheet is used for fabrication of sintering boats, high temperature furnace heating elements and heat shields.

Surface Condition

Surface can be supplied in a shiny, matte, or as-rolled condition; dependent upon thickness and width parameters.

Heat Treatment

Molybdenum flat products are rolled and annealed to provide the optimum condition for the desired end use.



Place of Origin China
Product Name Molybdenum Sheet
Grade Mo1, Mo Alloy, etc.
Shape Round, square molybdenum sheet
Purity >=99.95% / per your request
Density 10.1 g/cm3
Melting point 2617
Standard ASTM B386, AMS 7817
Condition Sintering, annealing, cold-rolling, hot-rolling
Surface treatment Cold-rolling, bright, polishing, caustic washing
Application
  • lighting industry
  • semiconductor base sheets for power electronics
  • glass melting electrodes
  • hot zones for high-temperature furnaces
  • sputtering targets for coating solar cells and flat screens
MOQ 1 kg



Rolling Molybdenum: Molybdenum Plate, Molybdenum Sheet, Molybdenum Disc, Molybdenum Foil & Strip.

Drawing & swaging Moly: Molybdenum Rod, Molybdenum tube, Molybdenum Wire, Molybdenum Bar
