Creep Resistance Molybdenum Products Molybdenum Lanthanum Plate For Vacuum Furnace

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Molybdenum Lanthanum Alloy
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: 40~100USD/kg
Packaging Details: Plywood Case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Molybdenum Lanthanum Oxide Standard: ASTM B386
Surface: Alkali Cleaning, Ground Finished Bright Technique: Hot Rolling Or Cold Rolling
Density: 10.2g/cm3 La2O3: 0.4%-0.7%
Work Temperature: 2000 °C Melt Point: 2620 °C
High Light:

tzm molybdenum alloy

,

molybdenum copper alloy

Product Description

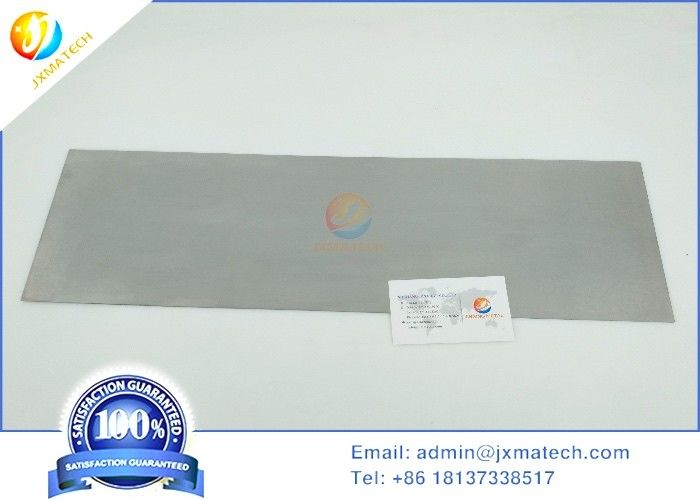

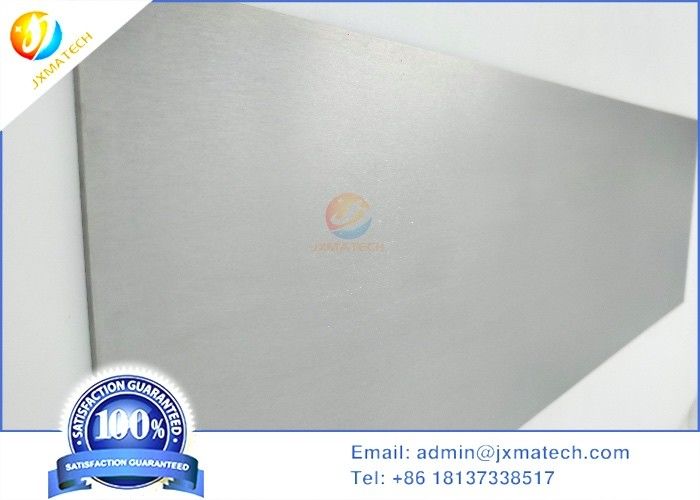

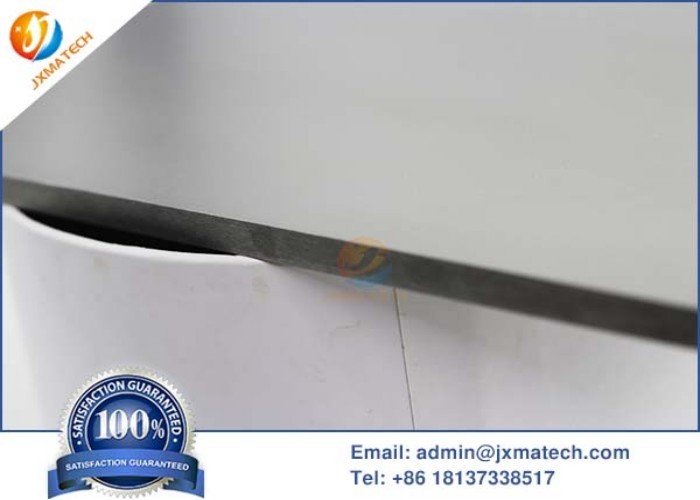

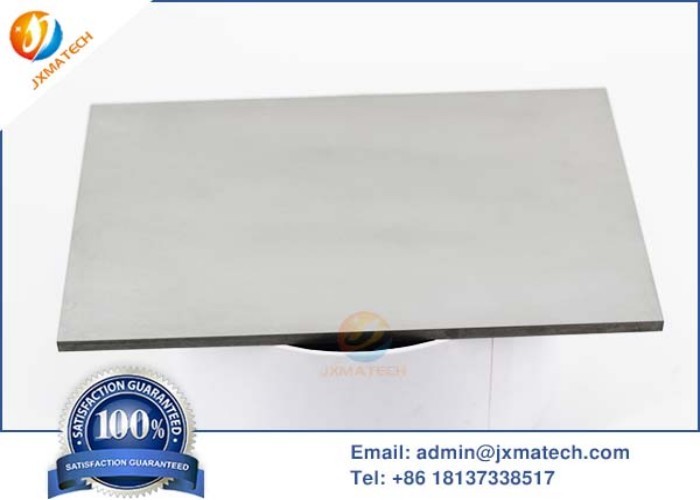

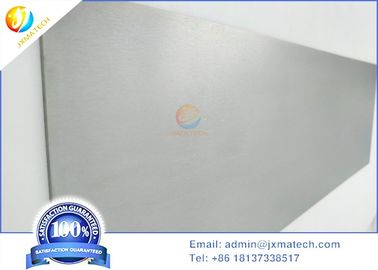

Molybdenum Lanthanum Plate Ground Finished Surface for Vacuum Furnace

Molybdenum Lanthanum Sheet, Molybdenum Lanthanide Recrystallize Plate, is alloy plate of molybdenum and lanthanum. La2O3 is contained in molybdenum lanthanum plate to prevent wrong movement of molybdenum grain and re-crystallization of slow rhythm under high temperature. The density of molybdenum lanthanum plate is over 10.1g/cm3. ContentLa: 0.5-0.7% and Mo: balance.



  • Description

Molybdenum Lanthanum Sheet, molybdenum Lanthanide recrystallize plate

Molybdenum Lanthanum (Mo-La) is an alloy made by adding Lanthanum Oxide into molybdenum. Molybdenum Lanthanum has the properties of higher temperature of recrystallization, better ductility, and excellent wear-resistant. Molybdenum (Mo) is gray-metallic and has the third highest melting point of any element next to tungsten and tantalum. It is found in various oxidation states in minerals but does not occur naturally as a free metal.

Chemical Composition: Mo-La: Generally: La2O3:0.4%-0.7%
Specification: We manufacture our molybdenum Lanthanum products according to customer's drawing.




Content(Wt)
Type Mo purity Single element Other elements
Mo1 ≥99.95% ≤0.01% ≤0.05%
TZM ≥99.95% ≤0.01% ≤0.05%
MHC ≥99.95% ≤0.01% ≤0.05%
M-La ≥99.95% ≤0.01% ≤0.05%



Compared with pure Mo, MLR has the following advantages:

1) better creep resistance

2) higher recrystallization temperature

3) better high-temperature strength

4) better welding properities

5) higher tensile strength



Application:

1) Sintering and heat treatment furnaces.

2) Boats for annealing and sintering process

3) Used in high-temperature furnace construction and metal working.



Creep Resistance Molybdenum Products Molybdenum Lanthanum Plate For Vacuum Furnace 0
