​Gr2 / TA2 Titanium Flat Face Flange ​Titanium Weld Neck Flange

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: ​Titanium Flat Face Flanges Flat Face Weld Neck Flange
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: 15~100USD/kg
Packaging Details: Plywood Case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000kgs/M

Detail Information

Material: ​Titanium Flat Face Flanges Feature: Lightweight, Strong And Corrosion Resistance Features
Materal:: Titanium Gr2/TA2 Process: Cast, Forge, Press
Size: DN10~DN2000, Customized Size Flange Type: WNRF , SORF , BLIND ,SW, PL
Standard: ASME B16.5, EN1092-1 Test: Ultrosonic Test
Pipe Fittings Shape: Elbow, Tee, Reducer, Stub End, Cap, Threadolet, Pipe Fittings Standard: ASME B16.9 And EN10253
High Light:

TA2 Titanium Flat Face Flange


​Gr2 Titanium Flat Face Flange


​Gr2 Titanium Weld Neck Flange

Product Description

​Titanium Flat Face Flanges Flat Face Weld Neck Flange

​Titanium Flat Face Flanges has excellent corrosion resistance and effective strength at low density. A small amount of palladium is added to this alloy to greatly improve the corrosion resistance. Gr 2 titanium alloy flange. Grade 2 titanium flanges have medium strength and excellent cold forming properties. It provides excellent welding performance and has high resistance to oxidation and corrosion. Titanium flange is a chemical element with silver luster transition metal, low density and high strength. These applications such as electrochemical etching and many other specifications are available.

​Titanium Flat Face Flanges Standard Specification

Specifications ASTM B381 / ASME SB381
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Grades Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size 1 / 2” to 18"
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ

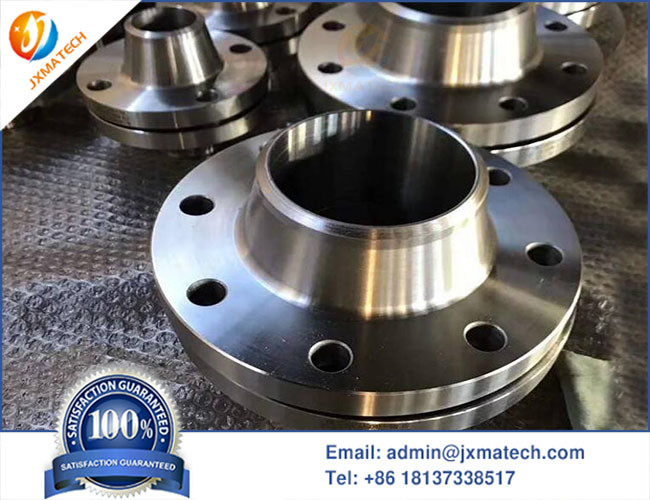

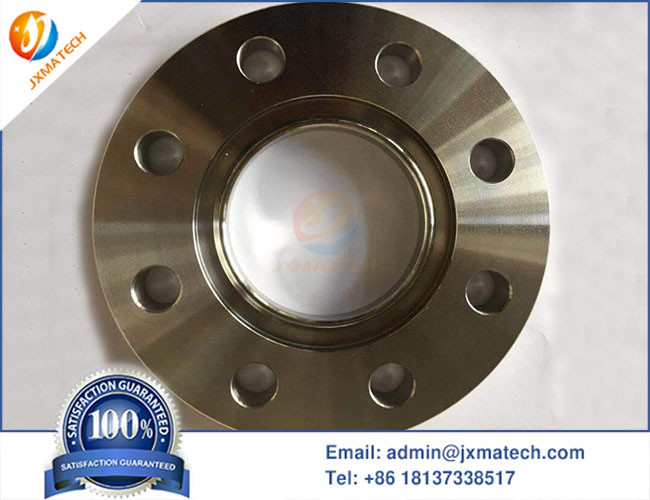

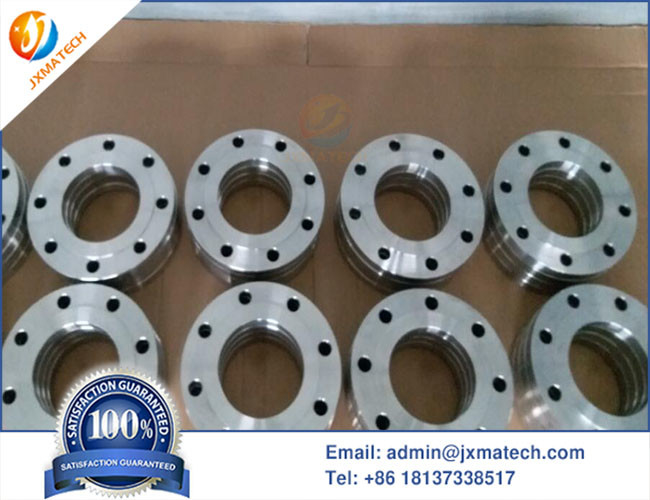

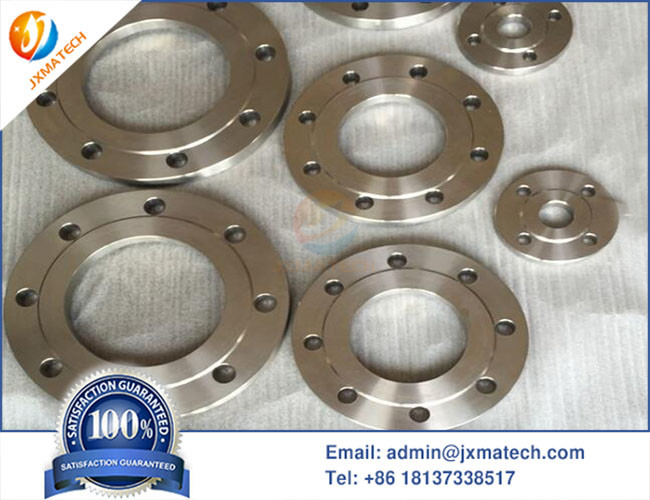

Titanium Flanges Picture:

​Gr2 / TA2 Titanium Flat Face Flange ​Titanium Weld Neck Flange 0​Gr2 / TA2 Titanium Flat Face Flange ​Titanium Weld Neck Flange 1​Gr2 / TA2 Titanium Flat Face Flange ​Titanium Weld Neck Flange 2


For unique evaluations, during this period, we provide a variety of flanges, for example, Gr 2 titanium flange slip, Gr 2 blind flange, titanium titanium Gr 2 welded neck flange, titanium Gr 2 bearing Socket welding flange, titanium Gr 2 eye ring blind flange, titanium Gr 2 threaded/threaded flange, titanium 2 Gr reduction flange, and titanium Gr 2 ring connection flange

​Titanium Flat Face Flanges Quality test:

  •Ultrasonic flaw detection

  Mechanical testing, such as stretch zone

  • Active material identification-PMI test

  • Hardness test

  •Chemical Analysis-Spectral Analysis

We have a team of skilled professionals and experts who are working hard to provide high-quality flanges. By following well-defined manufacturing processes and quality standards, we are manufacturing the highest quality titanium flanges. From the selection of the material to the final shipment of the flange, our experts supervise the entire process to maintain the quality of the flange.
