High Strength Titanium Alloy Products Bar Grade 3 / Grade 4 / Ti6Al4V Eli

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Titanium Bar
Payment & Shipping Terms:
Minimum Order Quantity: 5kgs
Price: 10~200USD/kg
Packaging Details: Plywood Case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000kgs/M

Detail Information

Material: GR1 GR2 GR3 GR4 GR5 GR7 GR9 GR23, Etc Standard: ASTM / AMS / MiL /JIS
Surface: Polished Process: Hot Rolling / Forge
Heat Treatment: Solution Annealed Shape: Round Bar / Square Bar / Hexagonal Bar
Size: Customized Inspection: Ultrasonic Test (UT)
High Light:

titanium alloy rod

,

ams 4911 titanium sheet

Product Description

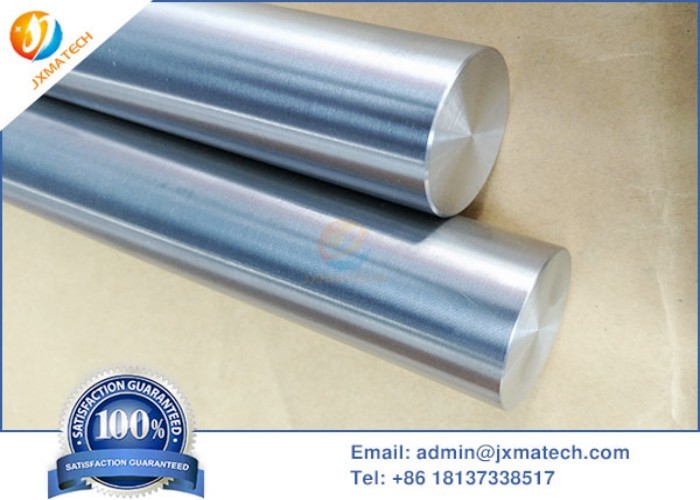

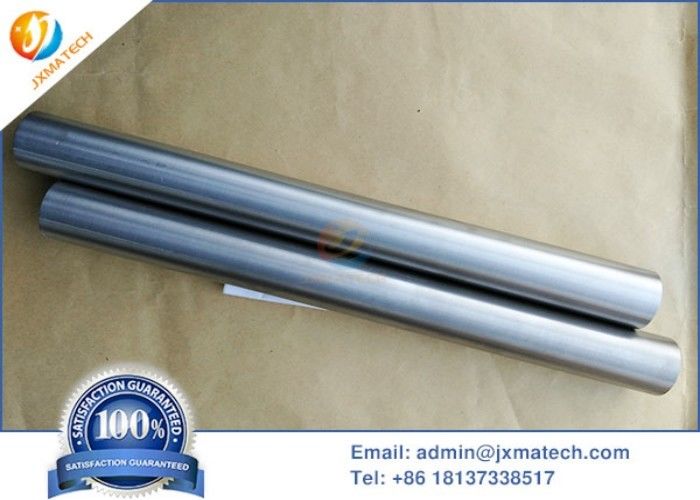

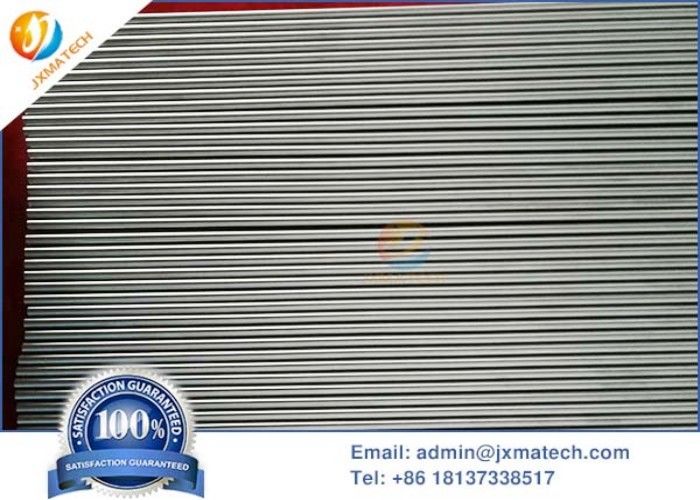

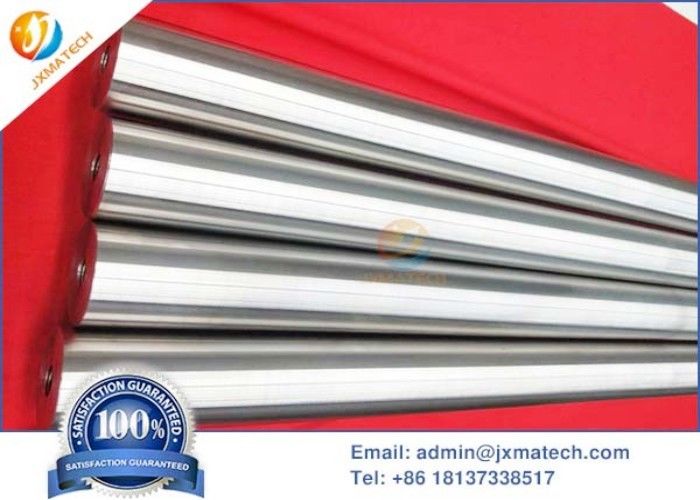

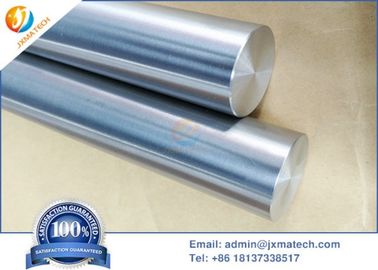

Titanium Bar Grade 3 / Grade 4 / Ti6Al4V Eli Round Bar



Titanium Rod , Titanium Rod Gr4 , Titanium rod Ti6Al4VEli



Medical titanium is used in medical devices, prostheses or auxiliary treatment equipment, characterized by a modulus of elasticity close to natural bone. Titanium metal used to manufacture medical devices, prostheses or auxiliary treatment equipment implanted in the human body.
Medical titanium has excellent corrosion resistance, elastic modulus close to natural bone, and excellent biocompatibility. Medical pure titanium is a single-phase structure and cannot be strengthened by heat treatment.
According to the content of impurity elements carbon, iron, oxygen and so on, it is divided into 1, 2, 3, 4 levels.
It is used as bone plate, bone screw, dental implant, etc. It is also made of artificial skull, artificial heart valve, cardiac pacemaker and titanium alloy for radiotherapy using titanium mesh or titanium plate.



  • Product Name:Titanium Bar
  • Material Titanium
  • Nominal Thickness 0.3mm~60mm
  • Type:  TI-6AL-4V Eli, Ti-6Al-7Nb, Titanium Grade 3 , Titanium Grade 4, Titanium Grade 23
  • Standard: ASTMF67, ASTMF136, ISO-5832-2, ISO-5832-3
  • Shape: Round bar,
  • FinishSand blasted, Pickled, Machined (Turned or center-less grinded)
  • Condition: Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status
  • Application: Meidicals.

Allowable Deviation:



Diameter or Thickness Allowable Deviation
Hot forged rod Hot roll rod Cold rolled rod
>7~15 ±1.0 +0.6, -0.5 ±0.3
>15~25 ±1.2 +0.7, -0.5 ±0.4
>25~40 ±1.5 +1.0, -0.5 ±0.5
>40~60 ±2.0 +1.2, -0.8 ±0.6
>60~90 ±2.5 +1.5, -1.0 ±0.8
>90~120 ±3.0 +2.0, -1.0 ±1.0
>120~160 ±4.0 —— ±1.5
>160~200 ±5.0 —— ±1.8
>200~230 ±6.0 —— ±2.0

 Medical use tolerance : h7, h8, h9 and +/-0.05mm in Diameter
