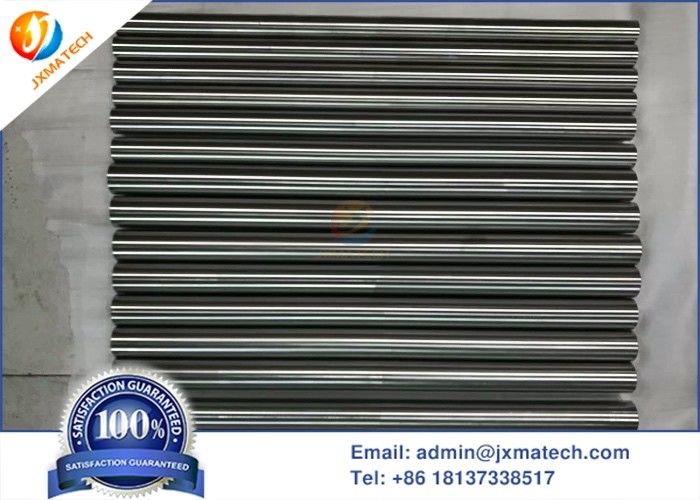

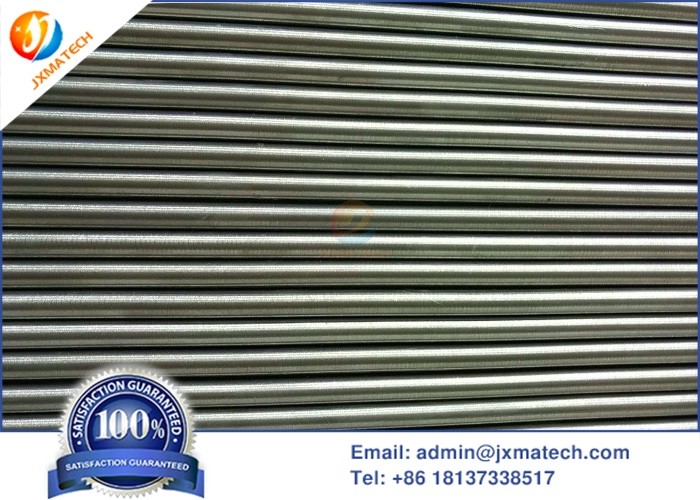

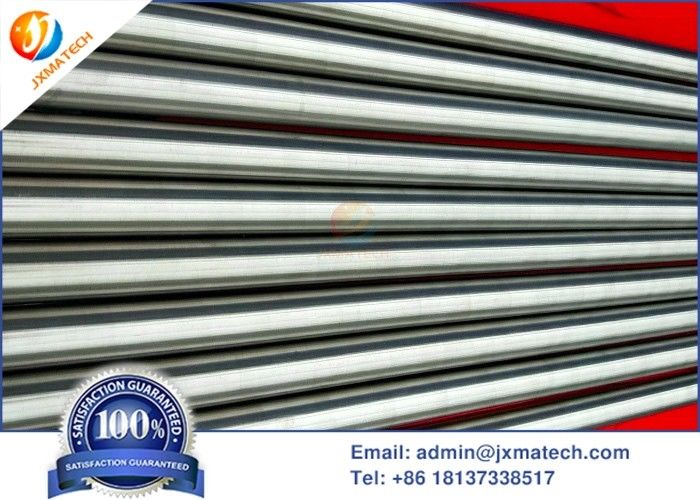

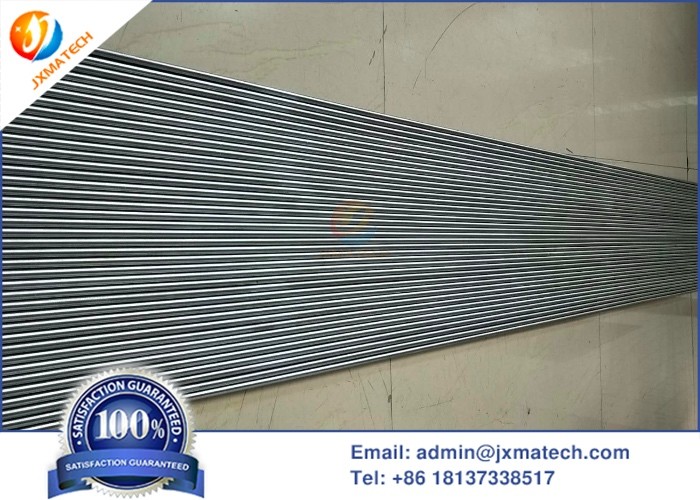

Zr 702 Zirconium Bar Good Malleability With Solution Annealed Heat Treatment

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zirconium
Payment & Shipping Terms:
Minimum Order Quantity: 5kgs
Price: 30~150USD/kg
Packaging Details: Plywood case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Zr 700 , Zr 702 , Zr 704 , Zr 705 Standard: ASTM B550
Process: Swage Forge, Forge, Hot Rolling Heat Treatment: Solution Annealed
Surface: Polished Surface Density: 6.51g/cm3
Shape: Square Bar, Round Bar, Hexagonal Bar, Size: Dia.: 3mm - 400mm
High Light:

zirconium welding rod

,

zirconium welding electrodes

Product Description

Zirconium Bar  (Zr) 702 For Aircraft, Aerospace, Chemicals.

JINXING MATECH is committed to the research and development, production and processing of zirconium plates, zirconium pipes, zirconium rods, zirconium rods, zirconium wires, zirconium targets, zirconium flanges, zirconium forgings, zirconium coils, zirconium heat exchangers, zirconium equipment, etc. , International and modern processing equipment.



Zirconium products, such as these rods, have many uses in medical equipment, Zirconium (Zr) 702, 705 UNS R60702 60705 Rod can be made according to standard ASTM B550/B550M-07 . And UNS R60700 rod can be made by ASTM 351;





Process: forging, rolling, lapping, polishing.​



Grade Element composition (%) <
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.20 -- 0.005 0.025 0.05 -- 0.16
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18





Mechanical Properties:

R60702 R60705

Tensile strength,min,ksi[Mpa]55{380}80{550}

Yield strength,min,ksi[Mpa]30{205}55{390}

Elongation in 2 in.or 50mm,min,%1616

Standard:

ASTM B550/B550M-07(2012)
