Oxidation Resistant Alloy 52 Wire Diameter 3.2mm For Telecommunications Industry

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Alloy 52 welding wire
Payment & Shipping Terms:
Minimum Order Quantity: 10kg
Price: 15~100USD/kg
Packaging Details: Plywood case
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10tons/M

Detail Information

Material: Alloy 52 Pernifer 502, NILO 50, Glass Seal 521 Density: 8.3g/cm3
Size: Diameter 2.4mm/ 3.2mm Or Customized Melt Range: 1370-1427 ℃
Hardness: 80HRB Tensile Strength: 552 Mpa Min
Yield Strength: 276 Mpa Min Elongation: 35% Min
High Light:

ni based superalloys


ni based alloys

Product Description

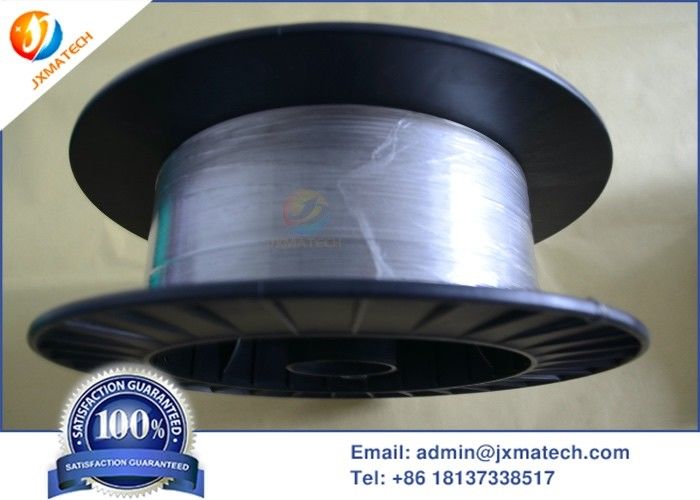

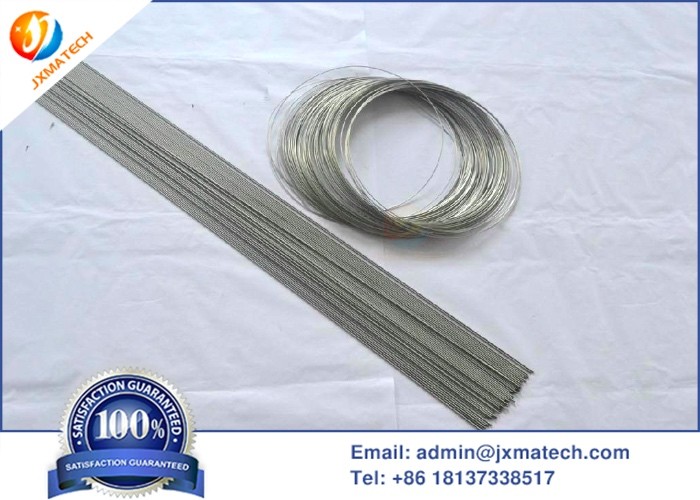

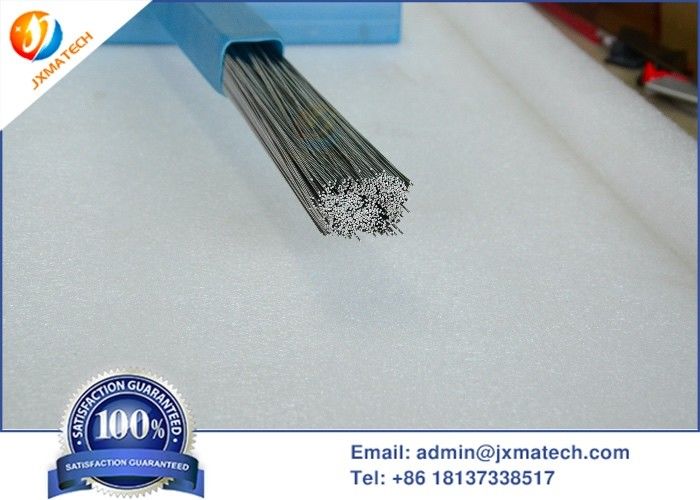

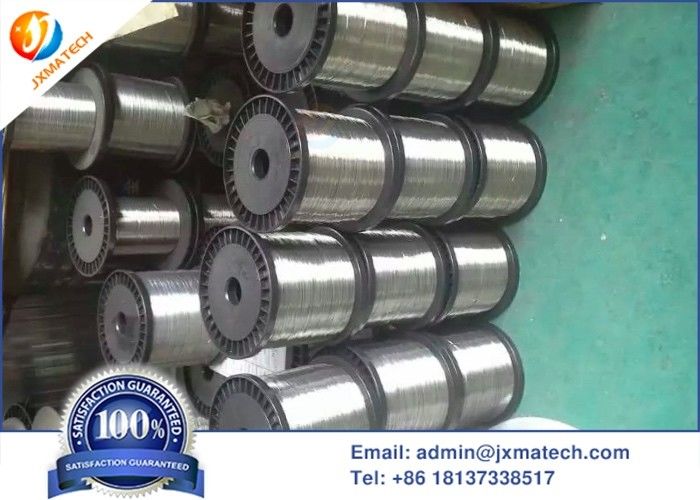

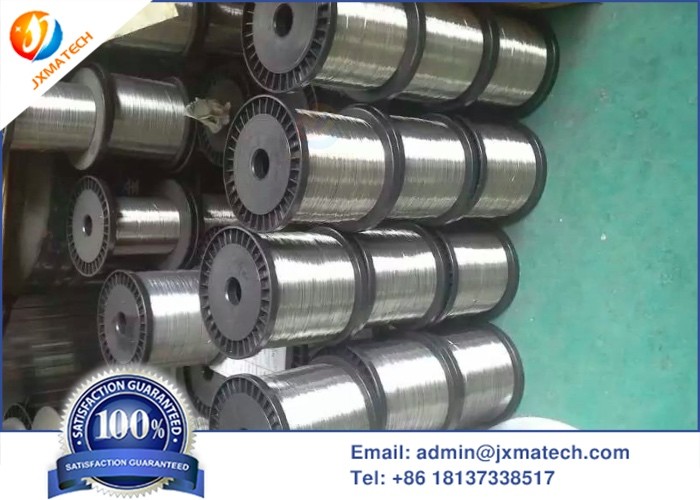

Alloy 52 welding wire filler rod Diameter 3.2mm for Alloy 52/152 Weldments

Alloy 52 welding wire / N14052 Alloy 52 contains 52% nickel and 48% iron and is widely used in the telecommunications industry. It also finds application in a wide variety of electronic applications, especially for glass seals. Also known as: Pernifer 502, NILO 50, Glass Seal 521 UNS K95050 N14052 ASTM F30

Alloy 600/182/82 welds are being replaced in many PWR systems with alloy 690/52/152 welds primarily for improved SCC resistance.


The Ductility-Dip Crack (DDC) existed in the nickel base alloy weldment during the high heat input GTAW cladding processwhere Alloy 52 is used as filler metal. This study is focused on the formation mechanism of DDC and its influencing factor. The formation temperature range is known asthe Ductility-Dip Temperature Range (DTR). The Failure Map of Alloy 52 was constructed by changing the temperature and strain parameter.The DDC test method wasdesignedthat stress is to be hold during the test. Grain boundary will rupture due to the DDCas the specimen temperature is raised to DTR.The Failure Map of strain versus temperature showed the trend of drop first and followed by rise as the temperature increase in DTR. A minimum of 2% for strain threshold value happenedat 900°Cwhich is the most DDC sensitive temperature. It can be speculated that the ductility of Alloy 52 were inadequate at 900°C when loaded.


Complicating this replacement is the known susceptibility of these high-Cr weld metals tosolidification and/or ductility dip cracking. Considerable expertise has been developed to minimize such problems for alloy 52/152 welds, however little is known about the distribution of aswelded cracks in service and concerns remain.



At present, in order to repair the damage of components or pipeline welding parts in nuclear power plants, in addition to replacing the materials with better corrosion resistance, such as Alloy 690 / 52 / 152 (4-7) and other nickel based materials with higher chromium content, the cladding method can also be used for protection; the cladding method is mainly to use alloy outside the welding and corrosion aging pipelines 52 / 152 and other high chromium electrodes can be directly covered or welded in the pipe. On the one hand, they can prevent new cracks from forming inside, and on the other hand, they can prevent the original cracks from growing outward and causing leakage of boiler water


Chemical composition:

Chemical Wt%


Ni Cr C Fe Mn Ti Cu Al Nb Mo Si
Standard 60 30 0.03 8.4 0.7 0.6 0.01 0.64 0.02 0.01 0.17


Alloy 52/152 Weldments Examined:


Alloy 52 and 152 U-groove Weld
Mockups for Kewaunee Reactor (MHI)
Alloy 52M/82 Inlay Mockup (Ringhals)
Alloy 52M/182 Overlay Mockup
Alloy 52/304SS Overlay Mockup


Alloy 52 has the following properties:

1. Good stress corrosion cracking resistance

2. Good resistance to spot corrosion and crevice corrosion

3. Good oxidation resistance and non oxidation thermal acid performance

4. It has good mechanical properties at room temperature and high temperature up to 550 ℃

5. Certification of pressure vessel with manufacturing temperature up to 450 ℃


Alloy Type Trade Name UNS No. Standard Forms
Rod Strip Wire Sheet
Ni29Co17 Kovar K94610 ASTM F15 yes yes yes yes
FeNi36 Invar 36 K93603 ASTM 1684 yes yes yes yes
FeNi32Co5 Super-invar 32-5 K93500 ASTM F1684 yes yes yes yes
FeNi33Co17 Ni33Co17 YB/T5234-94 yes yes yes yes
FeNi27Co25 Ceramvar F1466 ASTM F1466 yes yes yes yes
Fe28Cr Alloy 27 K92801 ASTM F256 yes yes yes
Fe42Ni6Cr Alloy 426 K94760 ASTM F31 yes yes yes
Fe42Ni Alloy 42 K94100 ASTM F30 yes yes yes yes
Fe45Ni Alloy45 YB/5235-2005 yes yes yes
Fe46Ni Alloy46 K94600 ASTM F30 yes yes yes yes
Fe50Ni Alloy52 K95050 ASTM F30 yes yes yes yes
