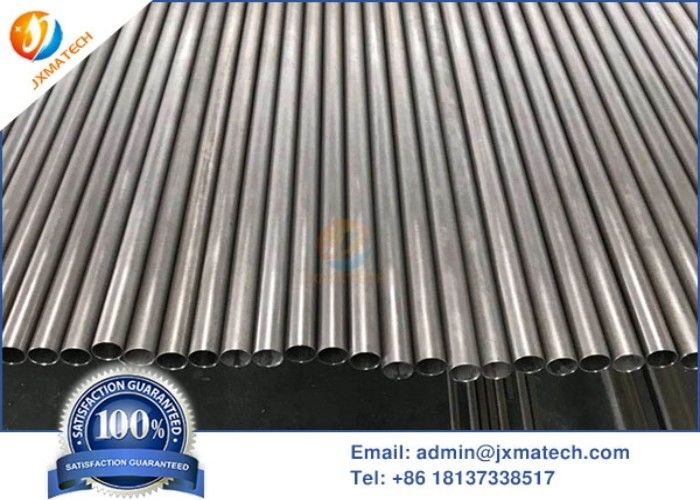

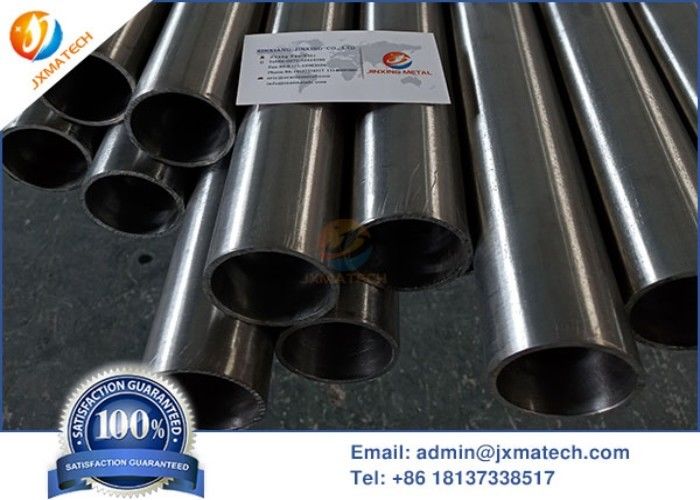

ASTM B523 / ASTM B658 Zr702 Zirconium Pipe For Chemical Processing

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zr702, Zr704. Zr705
Payment & Shipping Terms:
Minimum Order Quantity: 50kgs
Price: 50~100USD/kg
Packaging Details: Plywood case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000kgs/M

Detail Information

Material: Grade R60702 , R60704, R60705 Surface: Pickled Or Polished Surface
Process: Drill And Rolling Application: Aerospace, Chemical And Heatexchanger
Standard: ASTM , AMS , ASME Type: Seamless Or Welded
Inspection: Eddy-Current And Ultrasonic Testing Size: Customized
High Light:

composite coiled tubing

,

seamless welded pipe

Product Description

Zirconium Tube Zr702 ASTM B523 / ASTM B658 Grade R60702 / R60704 / R60705

Seamless and Welded Zirconium and Zirconium Alloy Tubes

zirconium tube ASTM B658 ASTM B523 , material Zr702 , Zr705 for aircraft, aerospace, chemical and heatexchanger high quality Zirconium tube pipe.





Compostion:

Grade Element composition (%) <
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.20 -- 0.005 0.025 0.05 -- 0.16
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18





Machanical Properties:



Material State Rm (≥)/MPa Rp0.2 (≥)/MPa A50mm (≥)/%

Zirconium 702

(UNS R60702)

Annealed 379 207 16

Zirconium 704

(UNS R60704)

Annealed 413 241 14

Zirconium 705

(UNS R60705)

Annealed 552 379 16





Testing :

  • Ultrasonic Test (UT)
  • Eddy Current Test(ET)
  • Pneumatic Test
  • Microstructure Test
  • Visual Surface Inspection
  • Hydraulic Test
  • Dimensional Inspection

Used in enamel reactor, steam heating in glass fiber reinforced plastic reactor and circulating water cooling. The one-shot molding process uses a single-sided welding double-sided forming process to ensure the quality



According to the heat exchange area and pressure, there are usually size:

57×3,57×2.5,45×2.5,38×2.5,38×2,32×2.5,30×1.5,25×2,25×1.5mm etc., can be produced according to user requirements. In addition, we can also provide a variety of shaped pipe fittings, such as serpentine tubes, U-shaped tubes, etc.

Features: It has strong corrosion resistance, good thermal conductivity and long service life.





Corrosion resistance of zirconium tube:

Zirconium is a reactive metal with a strong affinity for oxygen. When zirconium is in an oxidizing medium, the surface spontaneously forms a protective oxide film having a very good adhesion. This oxide film has a very high self-healing ability in the presence of oxygen, and can protect the zirconium substrate from corrosion at 300C. Therefore zirconium is a corrosive metal. Its chemical stability is similar to that of precious metals and silver, and is superior to nickel and alloys, and also stronger than high-grade stainless steel and its alloys. In general, the corrosion resistance of zirconium in acid is slightly inferior to that of bismuth, and the corrosion resistance in alkali is better than that of cerium zirconium. One advantage is the corrosion resistance of reducing acid, that is, in sulfuric acid, hydrochloric acid, etc. The acid has excellent corrosion resistance, which is precisely the deficiency of titanium in corrosion resistance. Zirconium is very resistant to corrosion in most inorganic acids, organic acids, alkaline solutions, salt solutions and certain molten salts. However, it is not resistant to corrosion in a few media such as hydrofluoric acid, ferric chloride, copper chloride, aqua regia, concentrated sulfuric acid, and wet chlorine. It also has corrosion resistance to high temperature and high pressure water, steam and liquid metals.



ASTM B523 / ASTM B658 Zr702 Zirconium Pipe For Chemical Processing 0
