Electropolishing Molybdenum Lanthanum Wire Microstructures For Automotive Lamps

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Lanthanum Doped Molybdenum
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: 40~100USD/kg
Packaging Details: Plywood Case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Molybdenum Lanthanum Oxide Standard: ASTM B387
Surface: Black, Electropolishing Technique: Forge, Drawing
Density: 10.2g/cm3 La2O3: 0.4%-0.7%
Work Temperature: 2000 °C Melt Point: 2620 °C
High Light:

tzm molybdenum alloy

,

molybdenum wire mesh

Product Description

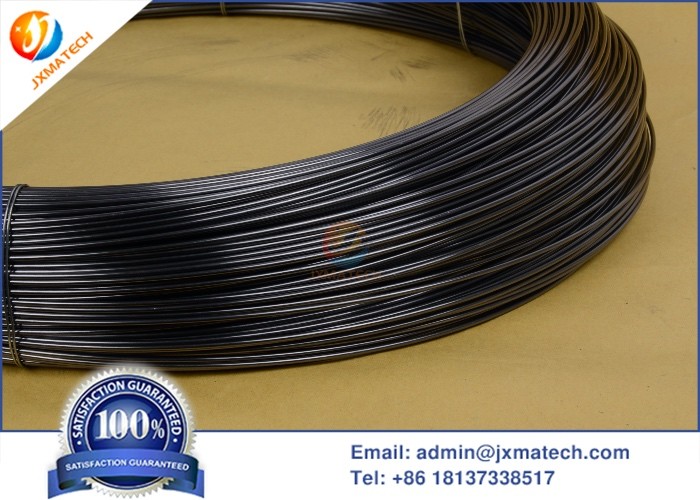

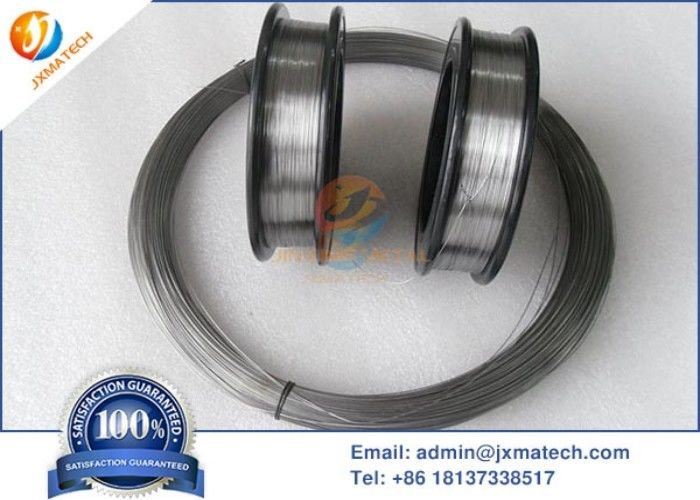

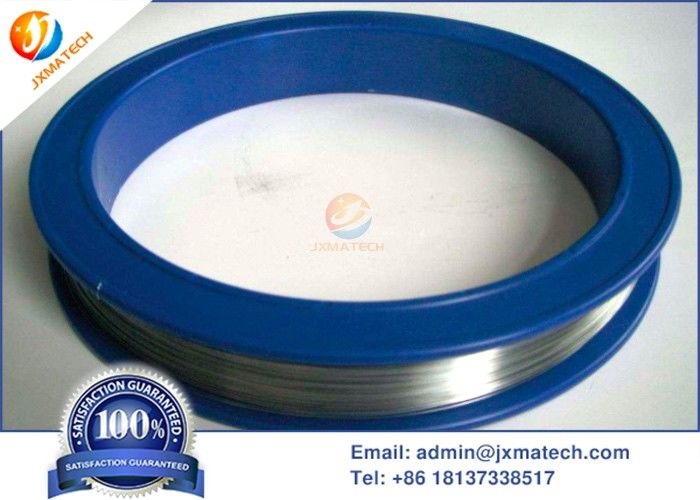

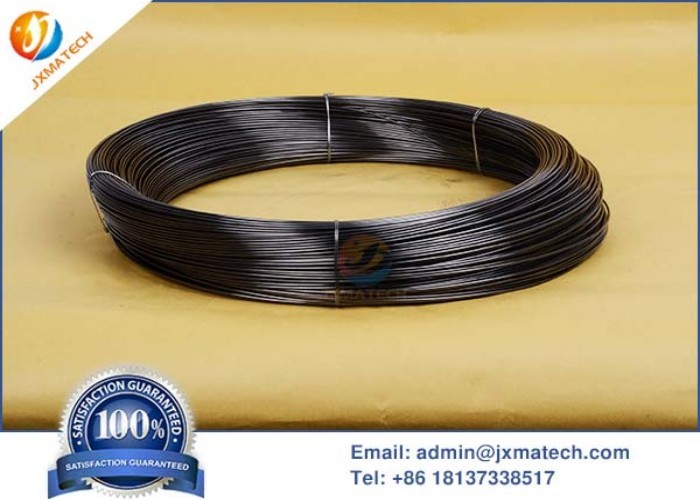

Molybdenum Lanthanum Wire Electropolishing Diameter 0.5mm ,0.8mm, 1.0mm

Molybdenum Lanthanum Wire, Lanthanum Doped Molybdenum Wire for Automotive Lamps and High Temp Vacuum Furnace . molybdenum and lanthanum. La2O3 is contained in molybdenum lanthanum plate to prevent wrong movement of molybdenum grain and re-crystallization of slow rhythm under high temperature. The density of molybdenum lanthanum plate is over 10.1g/cm3. ContentLa: 0.4-0.7% and Mo: balance.

  • Description

Molybdenum Lanthanum Wire ,

Microstructures, tensile strength, elongation and flexibility before and after annealing have been studied for 06 mm diameter MoLa wire made by powder metallurgy and pressure working, as compared with the same size of Mo1 wire. The results show that the recrystalling temperature of MoLa wire is 1 800, which is 600 higher than that of Mo1 wire. After complete recrystallization, MoLa wire has an interlocking grain structure. The tensile strength, plasticity and tonghness of MoLa wire is higher than those of Mo1 wire after high temperature annealing and/or recrystallization annealing.



Chemical Composition: Mo-La: Generally: La2O3:0.4%-0.7%
Specification: We manufacture our molybdenum Lanthanum products according to customer's drawing.



Size Customized
Material Mo-La Alloy
Standard ASTM B387 & ASTM B386
Purity Mo≥99.95%
Density 9.8~10.2 g/cc
Surface Rolling surface, Chemical cleaned, Polished,Grinding



Compared with pure Mo, MLR has the following advantages:

1) better creep resistance

2) higher recrystallization temperature

3) better high-temperature strength

4) better welding properities

5) higher tensile strength



Application:

1) Sintering and heat treatment furnaces.

2) Boats for annealing and sintering process

3) Used in high-temperature furnace construction and metal working.
