Pure Iridium Wire For Sparking, Sensor Material Iso 9001 Certification

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Iridium Rod
Payment & Shipping Terms:
Minimum Order Quantity: 5grams
Price: 40~150USD/grams
Packaging Details: Carton case
Delivery Time: 5~15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000kgs/M

Detail Information

Material: Pure Iridium Density: 22.56g/cm3
Surface: Drawing Surface Or Polished CAS #: 7439-88-5
Dia,: 0.15mm/0.3mm/0.5mm/0.8mm/1.0mm Purity: 99.95% Min
High Light:

iridium foil

,

iridium rod

Product Description

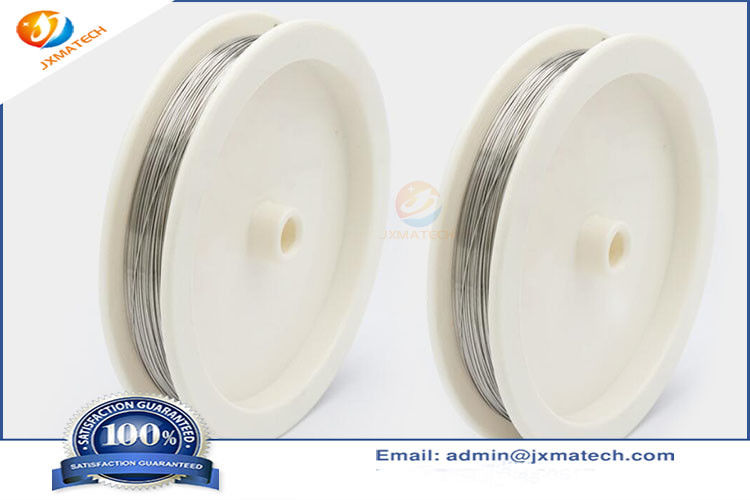

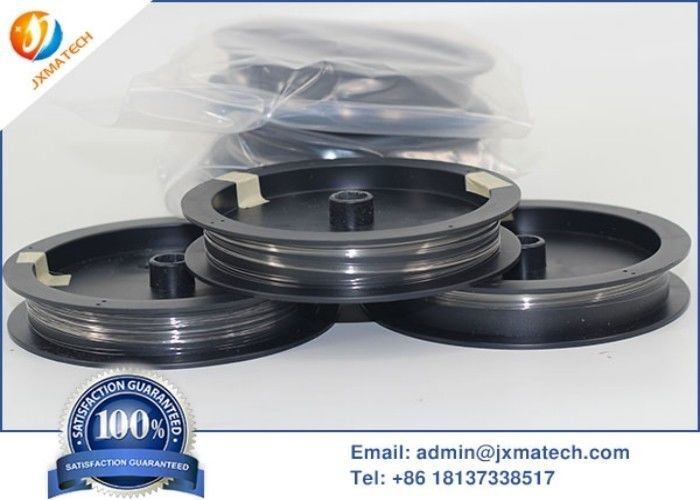

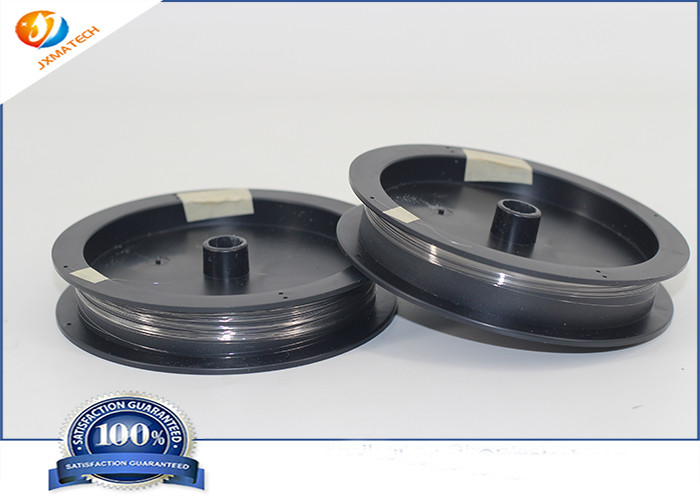

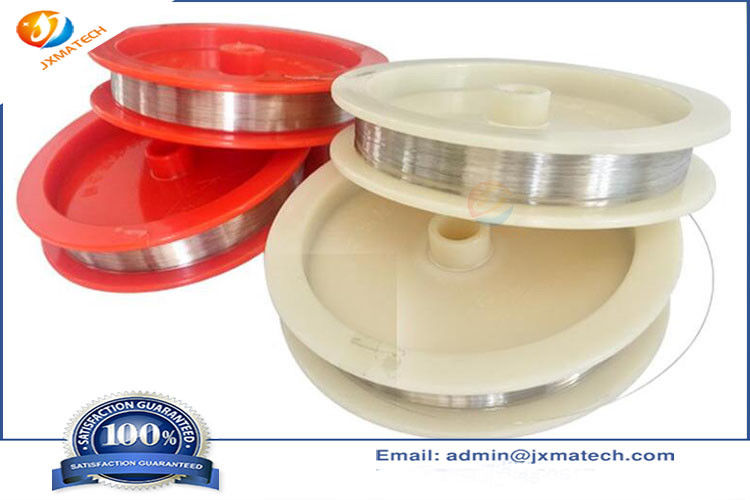

Iridium Wire Purity 99.95% min

Iridium wire diameter 0.1mm, 0.15mm ,0.3mm , 0.5mm, 1.0mm mainly used in sparking, sensor , aircraft, chemical, crystal, machinery and lighting electrode material etc



  • Description

Iridium rod
purity: 99.95% min
diameter: Min0.003inch, 0.005inch, 0.006inch, 0.007inch, 0.01inch, 0.02inch, Etc

Stock size: 0.15mm, 0.3mm, 0.5mm, 0.8mm, 1.0mm , 1.5mm
mainly used in sparking, aircraft, chemical, crystal, machinery and lighting electrode material etc

  • Iridium wire
  • Iridium rod
  • Iridium crucible
  • Iridium tube
  • Iridium sphere end
  • Iridium sheet
  • Irdiium foil
  • Iridium ribbon

Diameter 0.15 mm of irdium wire can be produced by powder metallurgy and melt casting-pressure processing. Filament is used as a high temperature oxidation resistant thermocouple material and filament material. Ir-W thermocouple E2200°C=44.19mv, in the range of 1000~2000°C, the relationship between thermoelectric potential and temperature is almost straight, but can only be used in neutral atmosphere or vacuum.



Chemical Composition PPM
Ag Au Ca Cr Fe Mn Pt Ru Se Ti
2 2 9 4 10 <2 10 33 4 2
Al Boron Bi MO Cd Ni Pb Si Zn As
<2 <2 <2 <2 2 2 20 20 <2 <2
Co Cu Mg Os Pd Rh Sb Sn Te V
<2 <1 2 4 4 23 <2 6 <2 2
Zr
2
