Zr702 Zirconium Pipe Fittings UNS R60702 In Corrosive Fluid Pipeline ASTM B523
|Place of Origin:||CHINA|
|Model Number:||Zr702 Zirconium Seamless Tubing|
Payment & Shipping Terms:
|Minimum Order Quantity:||50 kg|
|Packaging Details:||plywood cases|
|Delivery Time:||15-20 days|
|Payment Terms:||L/C, T/T, D/P, Western Union|
|Supply Ability:||2000 kg per month|
|Product Name:||Zirconium Seamless Tubing||Type:||Zr-702|
|Tensile Strength:||>205 MPa||Elongation:||>17%|
|UNS Number:||R60702 /705||Usage:||Heat Exchanging|

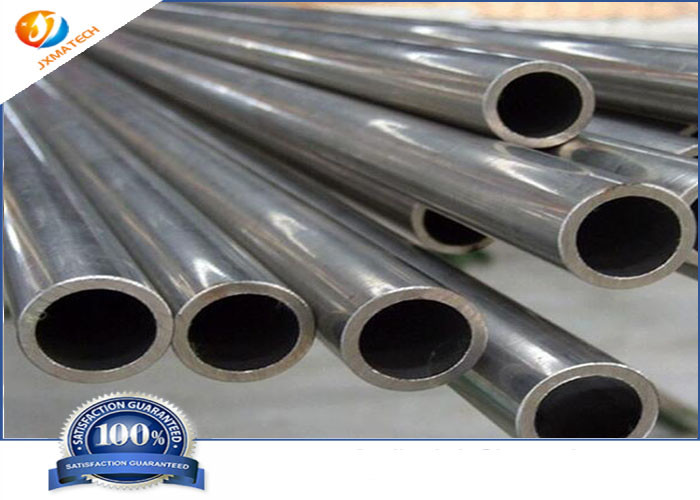

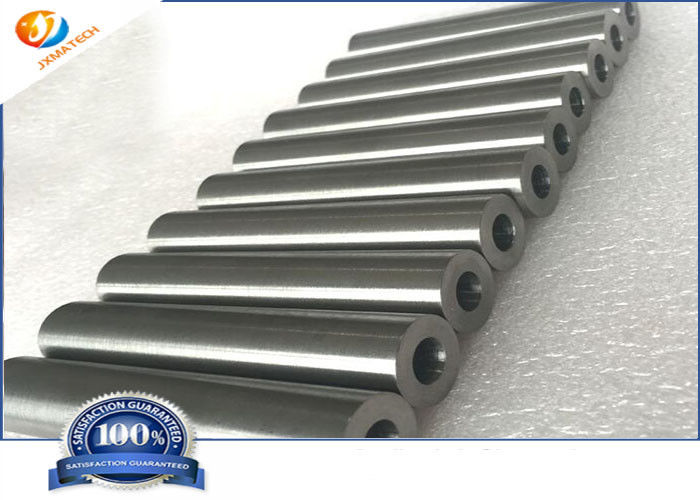

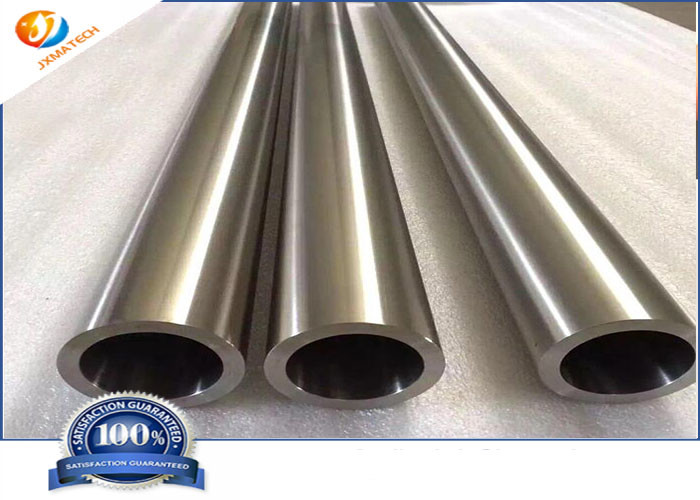

UNS R60702 Seamless Zirconium Tubing,
Zr702 Seamless Zirconium Tubing,
Heat Exchanger Seamless Zirconium Tubing
Zirconium Seamless Tubing is a type of metal with strong corrosion resistance, which is suitable for equipment with chemical corrosion resistance. Its acid resistance is better than that of titanium and other steels, and similar to that of tantalum. Zirconium is also stable in alkaline solution. It is widely used in tube heat exchanger, coil-heat exchanger, serpentine tube heat exchanger, condenser, evaporator, pipe and other heat exchange equipment.
Density: 6.51 g/cc
Melting point: 1852°C
Thermal conductivity: 22 W/(m °C)
Elastic bending modulus: 99.6 GPa
Thermal expansions: 5.4x10 /°C
Zirconium Seamless Tubing APPLICATIONS
The processing specification has a sensitive influence on the performance of the product. In particular, the cold processing and heat treatment process before the finished product should be controlled to meet the requirements of use.

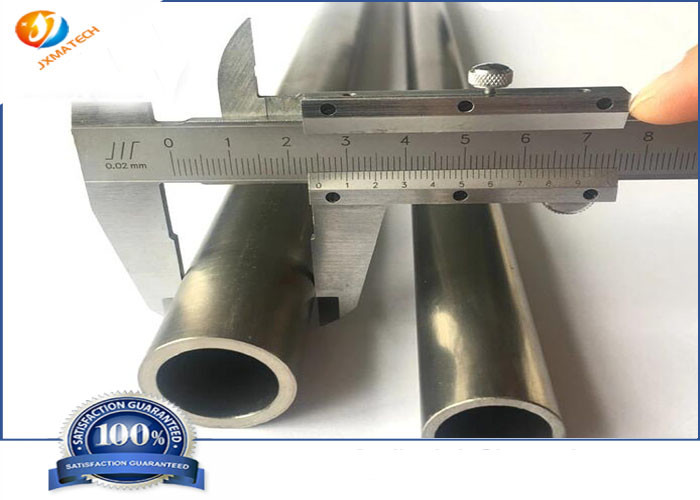

The dimensional accuracy and surface quality of the pipe are required to be high. Therefore, the process equipment should have good precision, and the design and manufacture of the die should be advanced and reasonable.
