High Purity Zirconium Disc Zr702 Target
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | jx |
| Certification: | ASTMB551 |
| Model Number: | Zirconium Plate 8.0 mm thick *200mm*200mm Zr Plate Zirconium Sheet |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10kgs |
| Price: | 10-100USD/kg |
| Packaging Details: | plywood cases |
| Delivery Time: | 10days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10ton month |
|
Detail Information |
|||
| Shape:: | Foil,sheet, Plate | Property:: | Superior Corrosion Resistance |
|---|---|---|---|
| Feature:: | Low Density&High Specification Strength | Certificate:: | ISO 9001:2008 ,MTC |
| Item Name:: | Zirconium Plate 8.0 Mm Thick *200mm*200mm Zr Plate Zirconium Sheet | Color:: | Natural |
| Highlight: | 8.0mm Thick Zirconium Sheet,200mm*200mm Zirconium Sheet,Polished Zr Zirconium Sheet |
||
Product Description
Zirconium Plate 8.0 mm thick *200mm*200mm Zr Plate Zirconium Sheet
Name:Zr Plate Zirconium Sheet
Brand: R60702, R60704, R60705, Zr1
Standard: ASTM B551 GB/T 21183-2007
Purity: Zr 99.6% or higher
Density: Visual sensitivity 6.51 g/cm3
Melting point: 1800℃
Supply status: polished surface, polished surface, machined surface
Size range: 0.025minX500maxX L (can be customized according to customer requirements)
Production process: zirconium sponge-forging-rolling-polishing-finished zirconium plate.
Application of Zr Plate Zirconium Sheet
Common board applications include:
*Special metal manufacturing
*Chemical storage tanks and towers
*Marine environment, including ship hardware
*Heat exchanger tube sheet
*Used to extract and process the pipes, pipes, fittings and fixtures of the factory
Chemical composition:
| Grade | Chemical composition(wt/%≤) | |||||||||
| Zr+Hf≥ | Hf | Fe+Cr | Sn | H | N | C | Nb | O | Standard | |
| R60702 | 99.2 | 4.5 | 0.2(Max) | - | 0.005 | 0.025 | 0.05 | - | 0.16 | ASTM B551/B551M-02(2002) |
| R60703 | 98 | 4.5 | - | - | - | 0.025 | - | - | - | |
| R60704 | 97.5 | 4.5 | 0.2-0.4 | 1.0-2.0 | 0.005 | 0.025 | 0.05 | - | 0.18 | |
| R60705 | 95.5 | 4.5 | 0.2(Max) | - | 0.005 | 0.025 | 0.05 | 2.0-3.0 | 0.18 | |
| R60706 | 95.5 | 4.5 | 0.2(Max) | - | 0.005 | 0.025 | 0.05 | 2.0-3.0 | 0.16 |

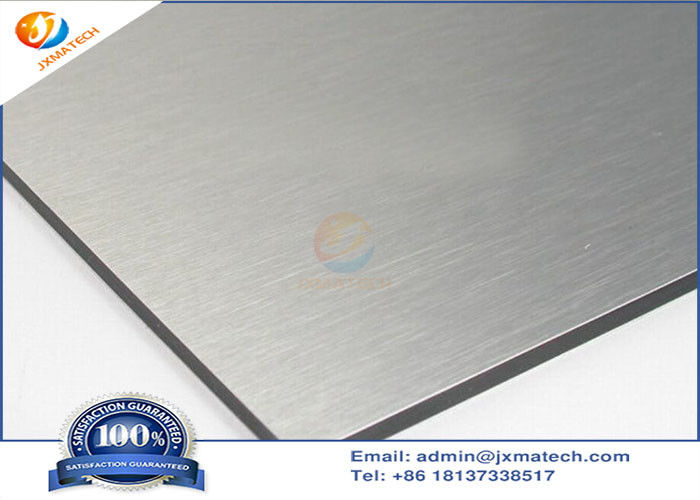

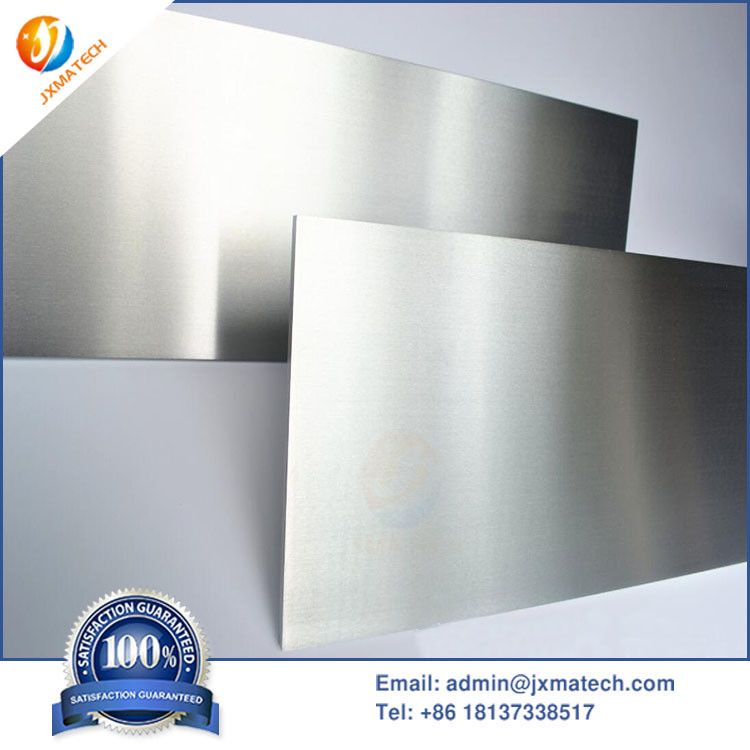

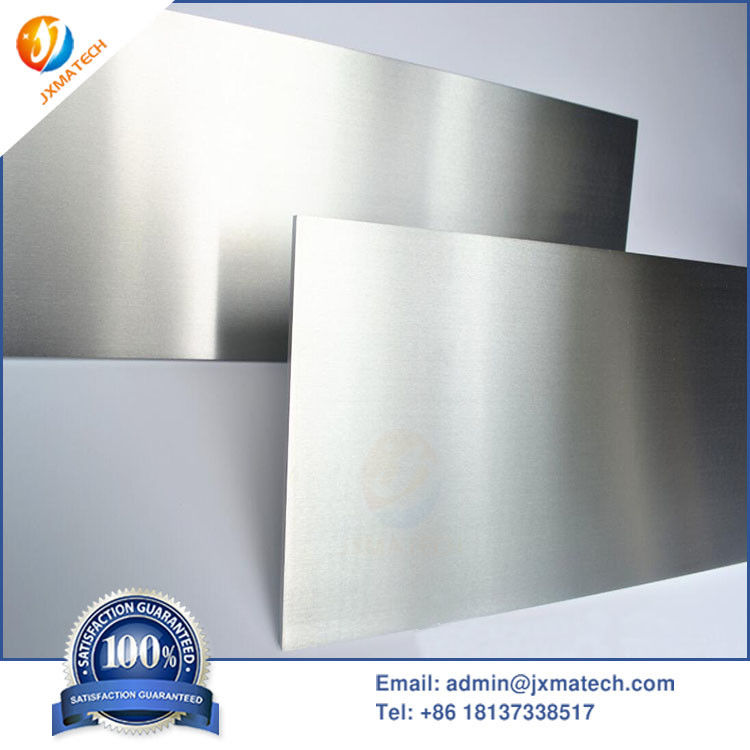

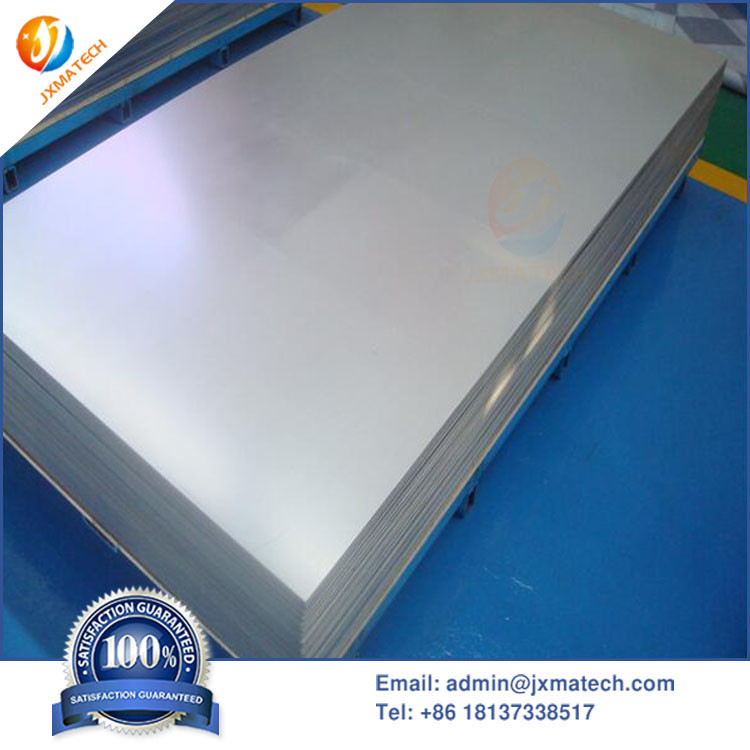

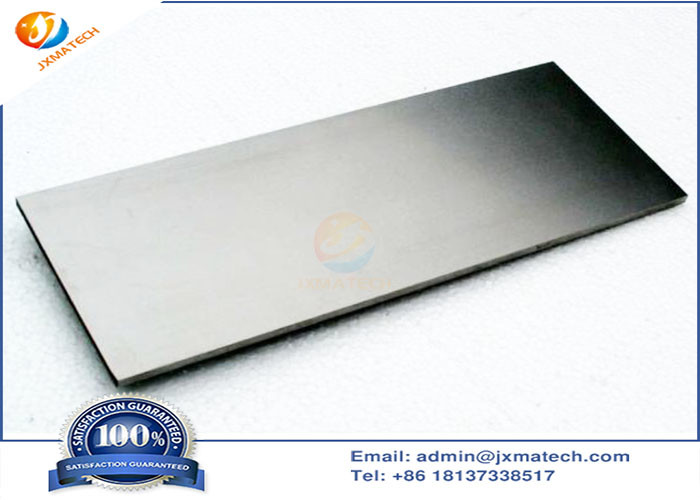

Zr Plate Zirconium Sheet Picture:
Specifications Of Zirconium Plate
| Material | Zr702, Zr704, Zr705 |
| Thickness | 0.5~50mm, or 0.02"~2" |
| Width | <1000mm> |
| Length | <2000mm> |
Composition of our Zirconium materials
| Zr 702 | Zr 704 | Zr 705 | Zircaloy-2 | Zircaloy-4 | |
| Sn | / | 1~2% | 1~2% | 1.2~1.7% | 1.2~1.7% |
| Fe | <0> | 0.1~0.2% | <0> | 0.07~0.2% | 0.07~0.2% |
| Cr | <0> | 0.1~0.2% | <0> | 0.05~0.15% | 0.05~0.15% |
| Ni | / | / | / | 0.03~0.08% | <0> |
| Hf | 1~2.5% | <4> | <4> | ||
| Nb | / | / | 2~3% | ||
| Zn+Hf | ~99.5% | ~97.5% | ~95.5% | ~98% | ~98% |
Zirconium Sheet and Plate 705702 Physical Properties
| Material | State | Rm(≥)/MPa | Rp0.2(Pa | A50mm(≥)/% |
|
Zirconium 702 (UNS R60702) |
annealed | 379 | 207 | 16 |
|
Zirconium 704 (UNS R60704) |
annealed | 413 | 241 | 14 |
|
Zirconium 705 (UNS R60705) |
annealed | 552 | 379 | 16 |
