2mm Zirconium Metal Sheet Pure Zr 702 Sheet Polished

Product Details:
Place of Origin: China
Brand Name: Jx-Zr Sheet
Certification: ASTM B550
Model Number: R60702
Payment & Shipping Terms:
Minimum Order Quantity: 10kgs
Price: USD
Packaging Details: Stadnard
Delivery Time: 10-30days
Supply Ability: 1t

Detail Information

Name: Zr Sheet Thickness: 0.5~50mm, Or 0.02"~2"
Width: <1000mm> Length: <2000mm>
State: Annealed Material: Zr702, Zr704, Zr705
High Light:

2mm Zirconium Metal Sheet

,

Polished Zirconium Metal Sheet

,

Pure Zr 702 Sheet

Product Description

Zirconium Metal Sheet 2mm Pure Zr 702 Sheet Polished

The Zirconium Metal Sheet is a solid solution of zirconium or other metals. Zirconium has a very low thermal neutron absorption cross section, high hardness, ductility and corrosion resistance. The main use of zirconium alloys is in the field of nuclear technology, such as fuel rods in nuclear reactors.

Specifications for Zirconium Metal Sheet

Item Name Zirconium Sheet / Zirconium plate
Material R60702, R60705
Size 0.3mm-50mm T x 100-1000mm W x 100-2000mm L
Specification ASTM B551/551M-07
Surface Pickled, Sandblasted, Shiny

Zirconium Metal Sheet Chemical Composition:

Grade Zr+Hf Hf Fe+Cr Sn H N C O Nb
R60702 99.2% <4.5% <0.20% - <0.005% <0.015% <0.030% <0.15% -
R60704 97.5% <4.5% 0.2-0.4% 1.0-2.0% <0.005% <0.015% <0.030% <0.16% -
R60705 95.5% <4.5% <0.2% - <0.005% <0.015% <0.050% <0.16% 2.0-3.0%

Our also provides other zirconium and zirconium alloy products, such as Zirconium tube, Zirconium foil, Zirconium rod, Zirconium wire, Zirconium flange, zirconium Pellets, Zirconium Ring, Zirconium Spring, Zirconium plate, Zirconium bar, Zirconium Crucible, Zirconium Flange, Zirconium sputtering targets, Zirconium pipe fittings, other machined and tailor-made zirconium parts, etc.

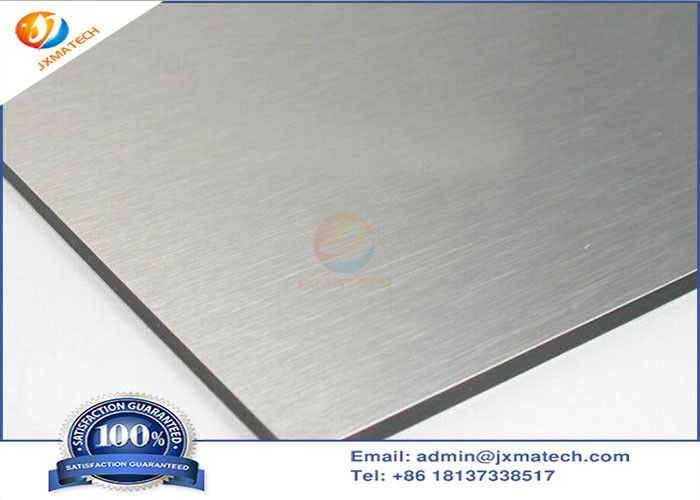

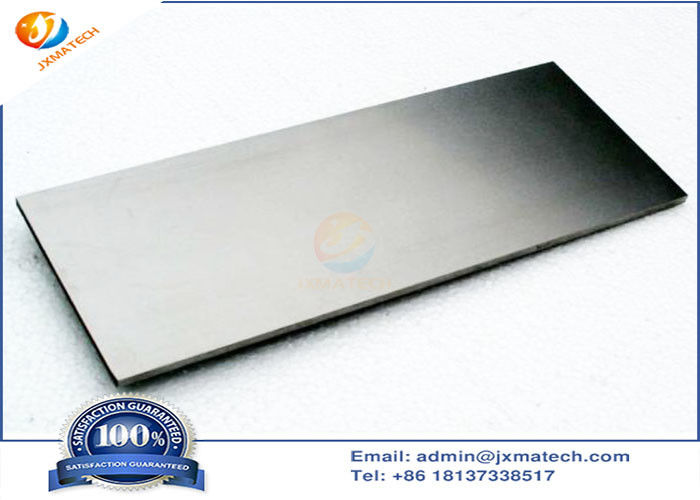

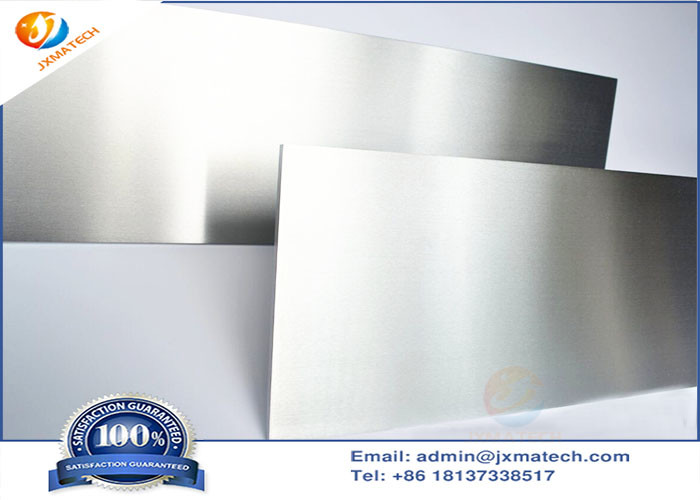

Zirconium Metal Sheet Picture:



2mm Zirconium Metal Sheet Pure Zr 702 Sheet Polished 0

2mm Zirconium Metal Sheet Pure Zr 702 Sheet Polished 1

Our company's Zr Sheet and strip production line: has large-scale zirconium and zirconium alloy plate rolling technology, plate shape and size precision control technology, plate heat treatment technology, plate surface quality control technology. The cold and hot rolling mills adopt advanced technologies such as hydraulic AGC and positive and negative roll bending, which have the advantages of high rigidity, large rolling force and large torque; With advanced automatic control system, matching thickness gauge, pressure gauge, roll gap gauge, etc., the online high-precision control of plate and strip production can be realized.



We have rolling technology, shape and dimension precision control technology, plate heat treatment technology and plate surface quality control technology for large size titanium and titanium alloy, zirconium and zirconium alloy rare metal plate and strip. The cold and hot rolling mills adopt advanced technologies such as hydraulic AGC and positive and negative roll bending, which have the advantages of high rigidity, large rolling force and large torque; With advanced automatic control system, matching thickness gauge, pressure gauge, roll gap gauge, etc., the online high-precision control of plate and strip production can be realized.



The Zr Sheet and strip production line includes a hot rolling production line and a cold rolling production line, mainly producing rare and refractory metals, non-ferrous metals, carbon steel, stainless steel and clad plates. It has an annual production capacity of 10000 tons of titanium and titanium alloy plate and strip, 20000 tons of composite plate and 200000 tons of steel plate. The product has high dimensional accuracy, good shape and surface quality, stable organization and performance, and can be produced according to customer requirements.
