Annealed Oxidation Resistant Zirconium Plate For Electrodes Components

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zr702, Zr700, Zr704. Zr705
Payment & Shipping Terms:
Minimum Order Quantity: 5KGS
Price: 50~100USD/kg
Packaging Details: Plywood case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000kgs/M

Detail Information

Material: Grade R60702 , R60704, R60705 Surface: Pickled Or Ground Surface
Thickness: 0.1mm Min Type: Hot Rolling Or Cold Rolling
Application: Chemical Industry And General Industry Size: Customized
Shape: Zirconium Plate, Zirconium Sheet, Zirconium Foil Standard: ASTM , AMS , ASME
High Light:

zirconium sheet

,

strips and foils

Product Description

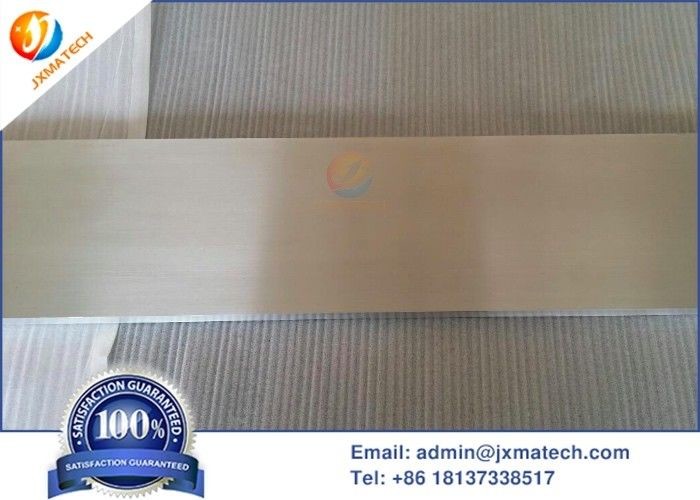

Zirconium Plate

Zirconium 702 alloy,Zr 702, UNS R60702 , Zirconium 705 alloy,Zr 705, UNS R60705 ,Standard: ASTM B551/B551M-12 . Can be used in the construction of chemical columns,vessels and reactors,heat exchangers,porous filters,anode basket and electrode in plating solution and etching agent.

  • Description

Zirconium Sheet and Plate

Zirconium plates are our main products.They are available in varying thicknesses and can be ordered to different sizes and specifications. We have been working closely with our air and sea freight forwarder, FEDEX,UPS and DHL to speed up the delivery.

Wherever you are,you can be rest assured that we will deliver the material to your hand at the speed you are satisfied with.

Our superior quality,quick delivery and good price will meet your specific requirements and help you to fulfil your needs.

Welcome to send your enquiry or your question to us online or by email.

We will answer you immediately or within 24 hours.





Grades:

UNS R60702 , R60705

Thickness: 0.025mm min



Mechanical Properties:

R60702

Tensile strength,min,ksi[Mpa]  55[380]

Yield strength,min,ksi[Mpa]     30[205]

Elongation in 2 in.or 50mm,min,%16



Standard:

ASTM B551/B551M-12





Grade Element composition (%) <
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.20 -- 0.005 0.025 0.05 -- 0.16
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18



Applications:

Can be used in the construction of chemical columns,vessels and reactors, heat exchangers,porous filters,anode basket and electrode in plating solution and etching agent.
