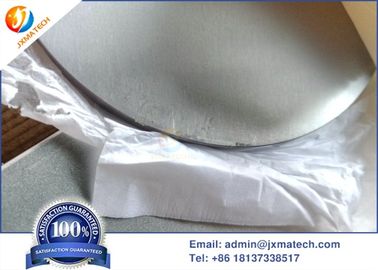

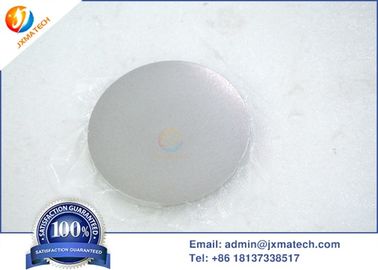

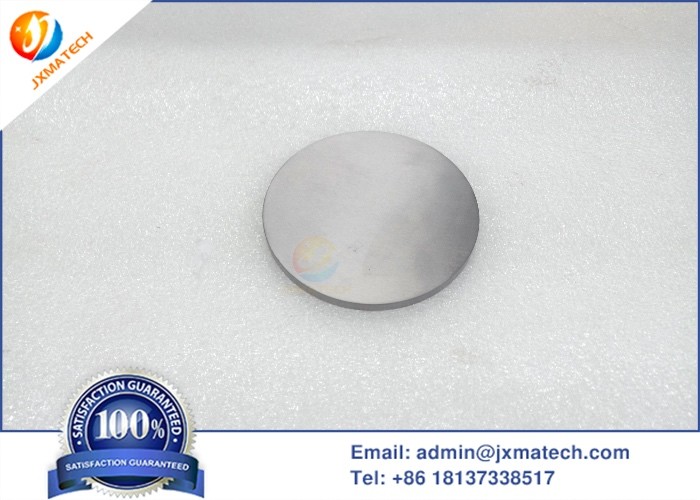

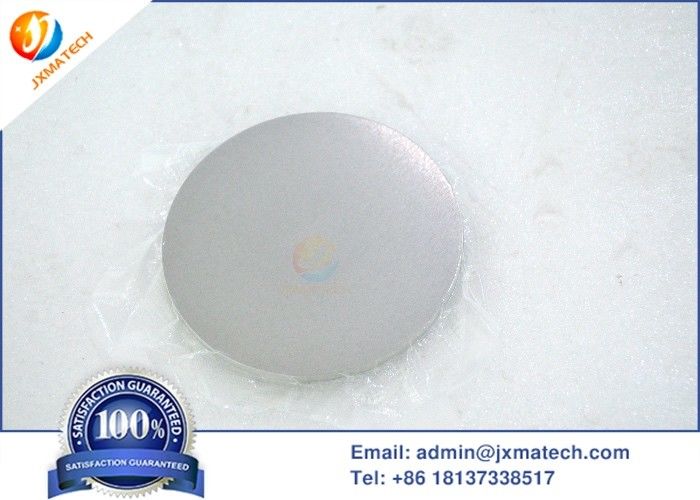

Ground Finished Surface Round Zirconium Disc ZR 702 For Chemical Industry

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zr702, Zr700, Zr704. Zr705
Payment & Shipping Terms:
Minimum Order Quantity: 5KGS
Price: 50~100USD/kg
Packaging Details: Plywood case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000kgs/M

Detail Information

Material: Grade R60702 , R60704, R60705 Surface: Ground Finished Surface
Thickness: Thick 3mm, 6mm, 12,7mm~50mm Type: Forge
Application: Chemical Industry And General Industry Size: Customized
Shape: Zirconium Disc, Zirconium Round Plate Standard: ASTM , AMS , ASME
High Light:

zirconium sheet

,

strips and foils

Product Description

Zirconium Round Disc ASTM B551 Zirconium 702 Thickness 6mm, 10mm customized

Zirconium 702 alloy,Zr 702, UNS R60702 , Zirconium 705 alloy,Zr 705, UNS R60705 ,Standard: ASTM B551/B551M-12 . Can be used in the construction of chemical columns,vessels and reactors,heat exchangers,porous filters,anode basket and electrode in plating solution and etching agent.

  • Description

Zirconium Round Disc

Zirconium and zirconium alloys have excellent corrosion resistance. As cladding and storage materials, zirconium and zirconium alloys are widely used in petroleum or chemical industry, as well as in nuclear industry. In this experiment, the corrosion resistance of ZR-3 alloy is studied by the corrosion polarization curve when the temperature changes. The corrosion potential of ZR-3 alloy at 600 ℃ is - 390mv, and the corrosion current density is - 4.0ma/cm 2. It has superior corrosion resistance.



The purity of zirconium is 99.9, the density is 6.00, and the highest temperature is 2200 ℃. It is mainly characterized by good thermal stability

Zirconium material trademark; (zr60702 zr60705 UNS standard) (Zr-1 ZR-3 zr-5 national standard general industrial standard)



Zirconium standard: ASTM b550 ASTM b550-07 GB / 8769-88





Grade Element composition (%) <
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.20 -- 0.005 0.025 0.05 -- 0.16
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18



Zirconium and Zirconium alloys have good dimensional stability, radiation resistance and corrosion resistance, so they have important application prospects in aerospace, navigation, nuclear reactor, biomedical and other fields, Improving the mechanical properties of zirconium and its alloys is the key to its successful application in structural parts. In this paper, the development of zirconium and its alloys in the fields of nuclear industry, chemical industry, medical treatment, aviation and navigation is briefly summarized. In addition, the design and preparation of new high-strength and tough zirconium alloys have obtained zirconium alloys that can be used in special fields such as space exploration, deep sea exploration and high-speed railway, The strengthening mechanism of new high strength and toughness zirconium alloy and its application in nuclear power, chemical industry and aviation are described in detail



Ground Finished Surface Round Zirconium Disc ZR 702 For Chemical Industry 0
