Pure Nickel Capillary Tube
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JINXING |
| Certification: | ISO 9001 |
| Model Number: | Hastelloy G30 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50KGS |
| Price: | 15~100USD/kg |
| Packaging Details: | Plywood Case |
| Delivery Time: | 25 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 100000kgs/M |
|
Detail Information |
|||
| Material: | UNS N06030 , DIN W. Nr. 2.4603 | Surface: | Pickled , Polished |
|---|---|---|---|
| Density: | 8.22g/cm3 | Melting Point: | 1371ºC |
| Heat Treatment: | Solution Annealed, Aged | Size: | Customized |
| Process: | Drill, Hot Rolling, Forge | Standard: | ASTM, AMS |
| Highlight: | ni based superalloys,ni based alloys |
||
Product Description

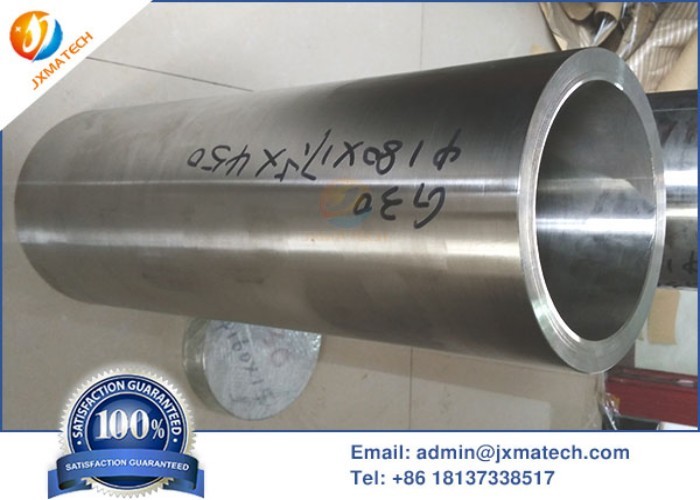

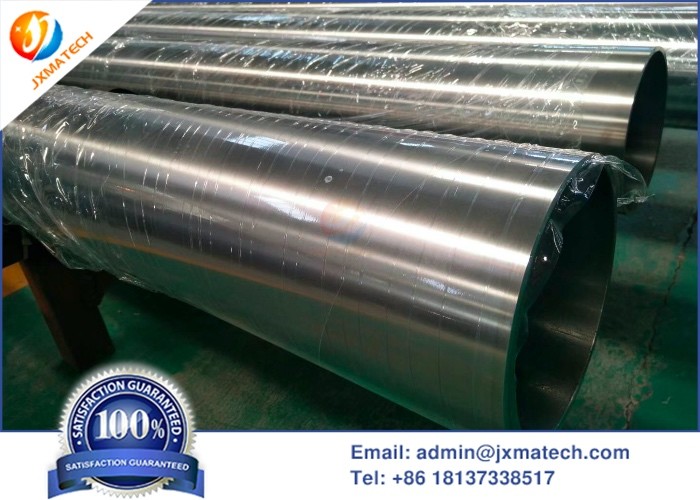

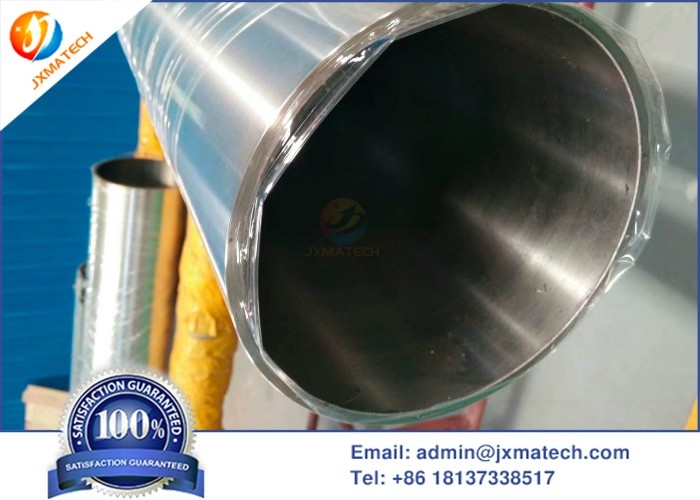

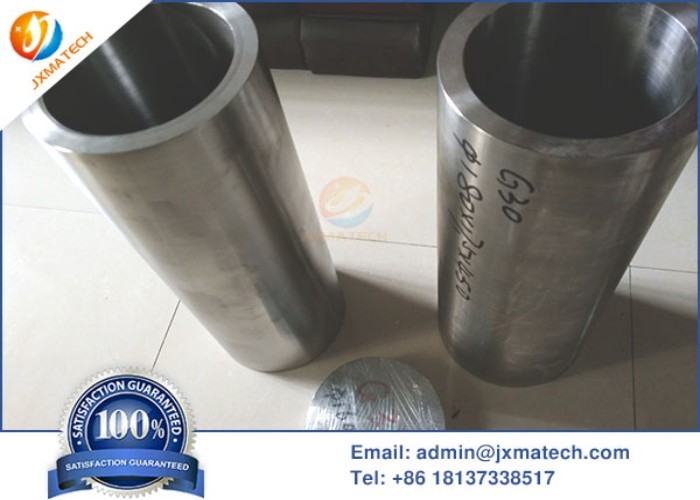

Hastelloy G30 pipe / UNS N06030 / DIN W. Nr. 2.4603 ASTM B622 , ASTM B619, ASTM B775 , ASTM B626, ASTM B751 . Hastelloy G30 is a high chromium content nickel-based alloy. It has superior corrosion resistance to commercial phosphoric acid and many highly oxidizing acid media in mixed environments such as nitric acid/hydrochloric acid, nitric acid/hydrofluoric acid and sulfuric acid, compared to mos
Hastelloy G30 Pipe Chemical composition :
| % | Ni | Cr | Fe | Mo | W | Co | C | Mn | Si | P | S | Cu | Nb+Ta |
| min | balance | 28 | 13 | 4 | 1.5 | 1 | 0.3 | ||||||
| max | 31.5 | 17 | 6 | 4 | 5 | 0.03 | 1.5 | 0.8 | 0.04 | 0.02 | 2.4 | 1.5 |
| Density | 8.22 g/cm3 |
| Melting range | 1370-1400℃ |
HASTELLOY® G-30® alloy is available in the form of plates, sheets, strips, billets, bars, wires, pipes, tubes, and covered electrodes. Applications include P2 O5 evaporator tubes and nitric acid-based, metal pickling hardware.
