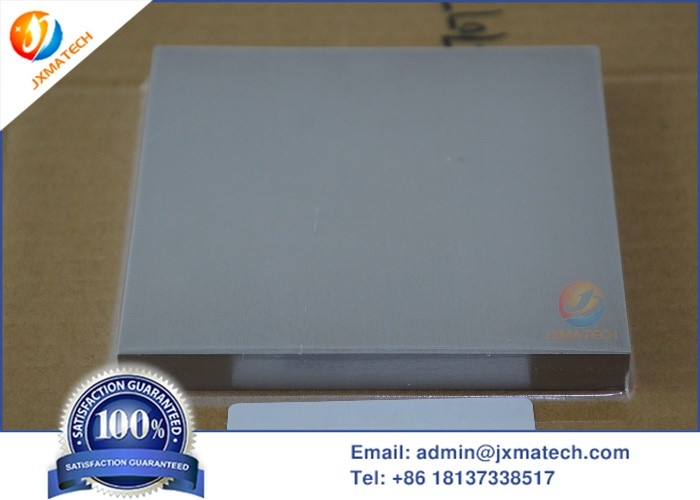

Low Density Molybdenum Copper Alloy Plate For Electronic Components

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Molybdenum Copper Alloy
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: 30~150USD/kg
Packaging Details: Plywood Case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Molybdenum Copper Alloy Standard: ASTM, AMS
Size: Customized Type: MoCu15~MoCu50
Surface: Mirror Bright Density: 9.54~10g/cm3
High Light:

tzm molybdenum alloy

,

molybdenum copper alloy

Product Description

Molybdenum Copper Plate Mo60Cu40 / Mo70Cu30 / Mo80Cu20 heat sink sealing

Molybdenum Copper Plates can be processed with the content (Mo85Cu15 , Mo80Cu20 , Mo70Cu30 , Mo60Cu40 , Mo50Cu50) MoCu 85/15 Molybdenum-Copper Composite Material , MoCu 70/30 Molybdenum-Copper Composite Material , MoCu 65/35 Molybdenum-Copper Composite Material , Molybdenum-Copper Composite AMC 7525



Description



Molybdenum Copper Plate is used to manufacture military high-power microelectronic devices as heat sink sealing materials and molybdenum-copper alloy sheets for sealing and structural materials of aluminum oxide ceramics. It is also suitable for manufacturing high thermal conductivity expansion sealing heat in civil high-power microelectronic devices. Sedimentary molybdenum copper alloy plate



Type Mo Wt% Cu Wt% g/cm3 W/(M.K)
(10-6/K)
Mo85Cu15 85± 1 Balance 10 160 - 180 6.8
Mo80Cu20 801 Balance 9.9 170 - 190 7.7
Mo70Cu30 701 Balance 9.8 180 - 200 9.1
Mo60Cu40 601 Balance 9.66 210 - 250 10.3
Mo50Cu50 50 ±0.2 Balance 9.54 230 - 270 11.5

Material Notes: Characteristics:
  • High thermal conductivity
  • Low thermal expansion
  • Low density
Applications:
  • Electronic components - passive cooling elements
  • Automotive industry - carrier plates for IGBT modules in electric drives

Related

  • Molybdenum Copper Wafer substrate

  • Molybdenum Copper Heat sink

  • Molybdenum Copper Rod
