Zr704 Zr705 Zirconium Sheet Astm B551 Standard For Vessels And Reactors

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zirconium Sheet
Payment & Shipping Terms:
Minimum Order Quantity: 5KGS
Price: 50~150USD/kg
Packaging Details: Plywood case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000kgs/M

Detail Information

Material: Grade R60702 , R60704, R60705 Surface: Pickled Or Ground Surface
Thickness: 0.1mm Min Type: Hot Rolling Or Cold Rolling
Application: Chemical Industry And General Industry Size: Customized
Shape: Zirconium Plate, Zirconium Sheet, Zirconium Foil Standard: ASTM , AMS , ASME
High Light:

strips and foils

,

zirconium round plate

Product Description

Zirconium Sheet ASTM B551 Zirconium 702 , Zr704 , Zr705, Grade R60702 , R60705

  • Description

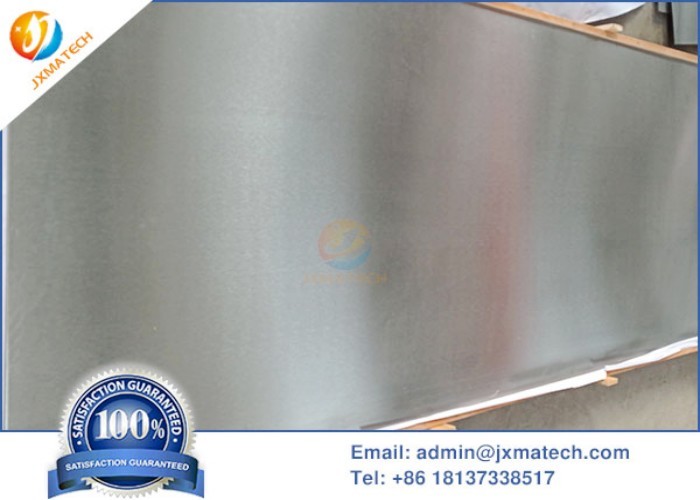

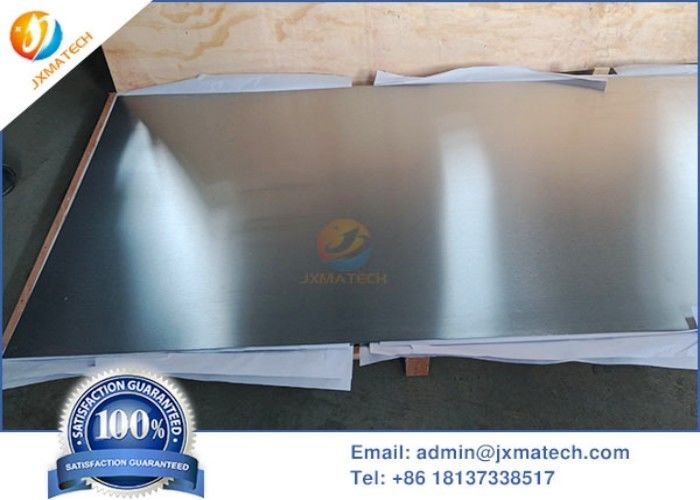

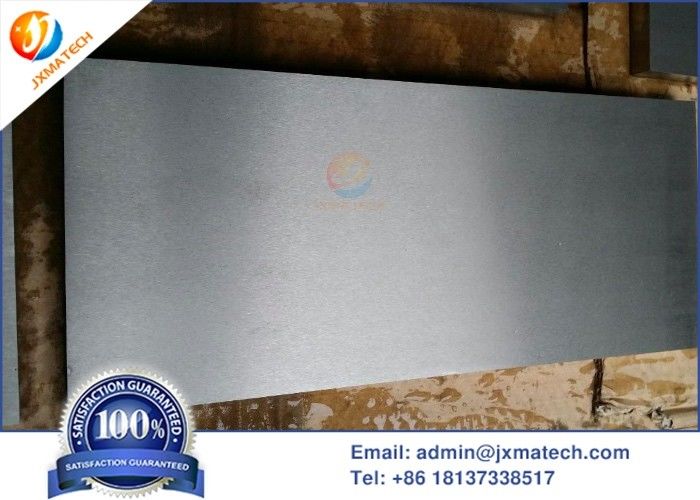

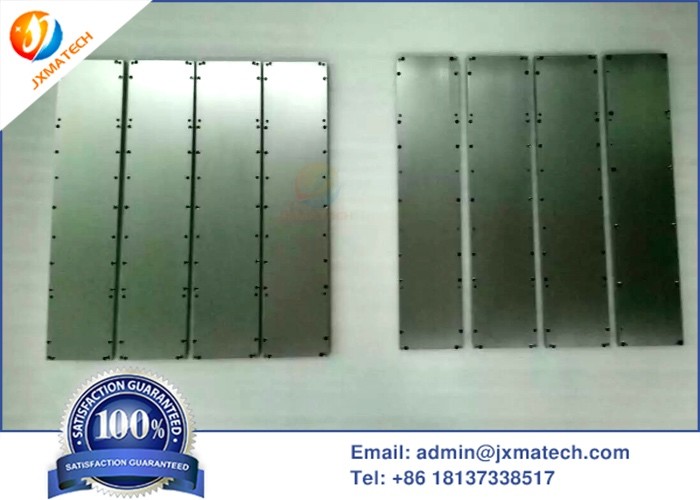

Zirconium Sheet and Plate

Zirconium sheets are our main products. Zirconium is used in services too severe for stainless steels, nickel alloys, and titanium or where a significant improvement in service life can be achieved by choosing zirconium instead of less expensive metals or plastics. When zirconium is chosen for an application, the high cost and expected serviceability require the chemical composition, mechanical properties, and overall casting quality be precisely controlled. Our past record shows that Flowserve meets these criteria so the full benefits of using zirconium can be realized.



Zirconium is superior to stainless steels, nickel alloys, and titanium in organic acids. This alloy is considered for these applications at high temperatures where its marked superiority results in a distinct economic advantage. Zirconium has poor resistance to concentrated sulfuric acid, hydrofluoric acid, concentrated phosphoric acid, ferric chloride, cupric chloride, wet chlorine, and other oxidizing chloride environments.



Zirconium 702 alloy, Zr 702, UNS R60702 , Zirconium 705 alloy,Zr 705, UNS R60705 ,Standard: ASTM B551/B551M-12 . Can be used in the construction of chemical columns,vessels and reactors,heat exchangers,porous filters,anode basket, sputtering target and electrode in plating solution and etching agent.





Grades:

UNS R60702 , R60705

Sizes:

Thickness : 0.02 to 2.0 " (0.5mm to 50.0mm).

Width : up to 98.4"(2500mm).

Length : up to 236.2" (6000mm).



Mechanical Properties:

R60702

Tensile strength,min,ksi[Mpa]  55[380]

Yield strength,min,ksi[Mpa]     30[205]

Elongation in 2 in.or 50mm,min,%16



Standard:

ASTM B551/B551M-12





Grade Element composition (%) <
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.20 -- 0.005 0.025 0.05 -- 0.16
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
