Zr 702 Zirconium Plate With Good Flatness Surface And Erosion Resistance

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zirconium 702 Sheet
Payment & Shipping Terms:
Minimum Order Quantity: 5KGS
Price: 50~150USD/kg
Packaging Details: Plywood case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000kgs/M

Detail Information

Material: Grade R60702 , R60704, R60705 Surface: Pickled Surface, Sand Blasting Surface, Polished
Thickness: 0.1mm Min Type: Hot Rolling Or Cold Rolling
Application: Chemical Industry And General Industry Size: Customized
Shape: Zirconium 702 Plate, Zirconium Sheet, Zirconium Foil Standard: ASTM , AMS , ASME
High Light:

zirconium sheet

,

zirconium round plate

Product Description

Zirconium 702 Sheet for Boiler and Pressure vessel, Heat exchangers

  • Description

Zirconium 702 Sheet and Plate

Throughout the process industries, Zirconium Pressure Vessels are praised as very cost effective methods of resisting damaging corrosive leaks in process. Zirconium is the most corrosion resistant metal in common use today. It is inert to practically all organic and inorganic compounds. It has good thermal conductivity and erosion resistance. It forms easily, is highly workable and weldable, and an ideal material for corrosion resistant Zirconium Vessel fabrication





Zirconium 702 alloy, Zr 702, UNS R60702 , Zirconium 705 alloy,Zr 705, UNS R60705 ,Standard: ASTM B551/B551M-12 . Can be used in the construction of chemical columns,vessels and reactors,heat exchangers,porous filters,anode basket, sputtering target and electrode in plating solution and etching agent.



Benefits of Zirconium Pressure Vessels used Zirconium 702 Sheet

Zirconium Vessels should be considered for any application where corrosion is a factor and the long term benefits of reduced downtime, increased life expectancy and profitability are important.

Zirconium may solve many of the problems inherent in many other materials of construction. It is not brittle and will not crack.

Zirconium Vessels feature fully-welded designs and will not leak like lesser materials.

Zirconium Vessels:

  • Are cost competitive
  • Eliminate of downtime due to equipment failure
  • Provide superior corrosion resistance
  • Accommodate high steam pressures
  • Fully welded metal designs
  • Eliminate process leaks

Grades:

UNS R60702 , R60705

Sizes:

Thickness : 0.02 to 2.0 " (0.5mm to 50.0mm).

Width : up to 98.4"(2500mm).

Length : up to 236.2" (6000mm).



Mechanical Properties:

R60702

Tensile strength,min,ksi[Mpa]  55[380]

Yield strength,min,ksi[Mpa]     30[205]

Elongation in 2 in.or 50mm,min,%16



Standard:

ASTM B551/B551M-12





Grade Element composition (%) <
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.20 -- 0.005 0.025 0.05 -- 0.16
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18

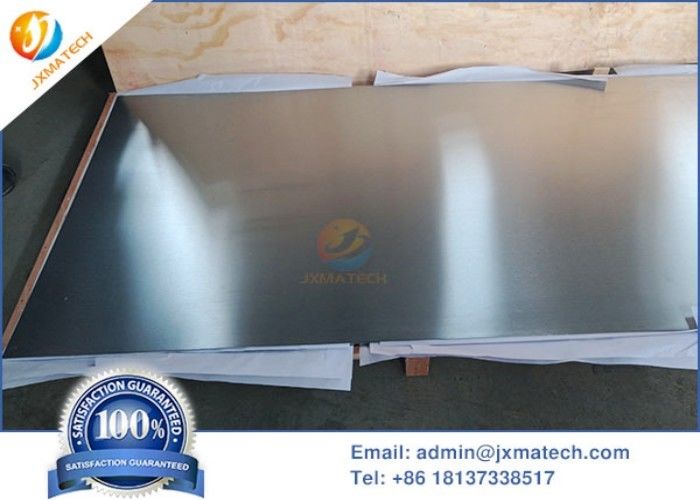

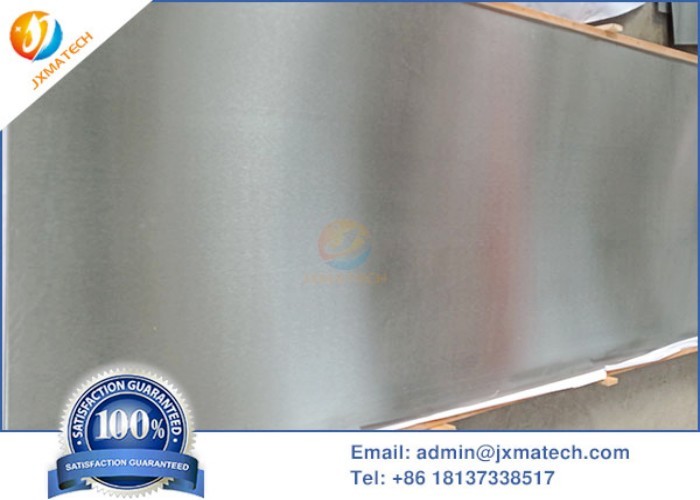

Zr 702 Zirconium Plate With Good Flatness Surface And Erosion Resistance 0Zr 702 Zirconium Plate With Good Flatness Surface And Erosion Resistance 1
