Buttweld Titanium Pipe Fittings Tees Stub Ends Reducers Tees Pipe Fittings
|Place of Origin:||CHINA|
|Model Number:||Hastelloy Flange|
Payment & Shipping Terms:
|Minimum Order Quantity:||30kgs|
|Packaging Details:||Plywood case|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union|
|Material:||Hastelloy Flange||Standard:||ASME B16.5, B 16.47 EN-1092-1|
|Surface:||Pickled , Polished||Process:||Forge, Drawing|
|Density:||8.89g/cm3||Melting Range:||2415- 2500|
pipe flanges and fittings,
reducing tee pipe fitting

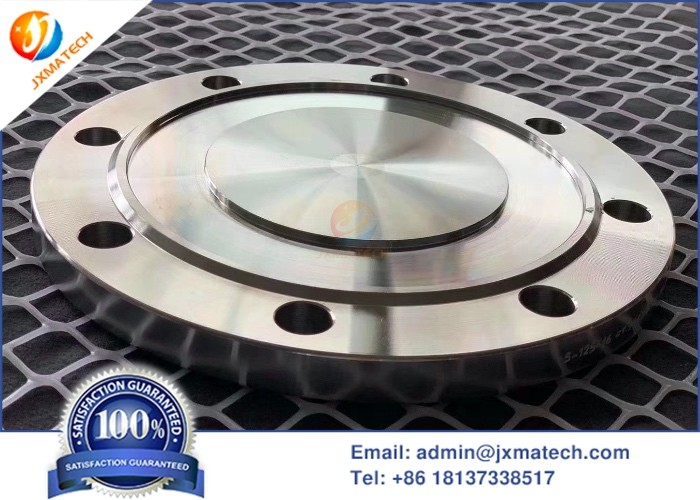

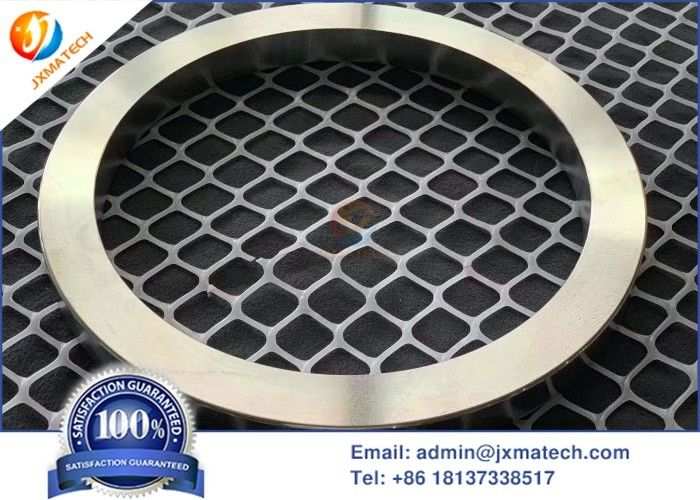

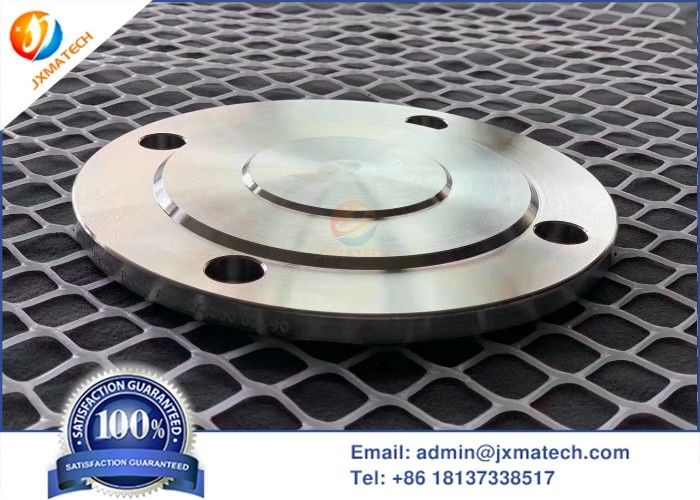

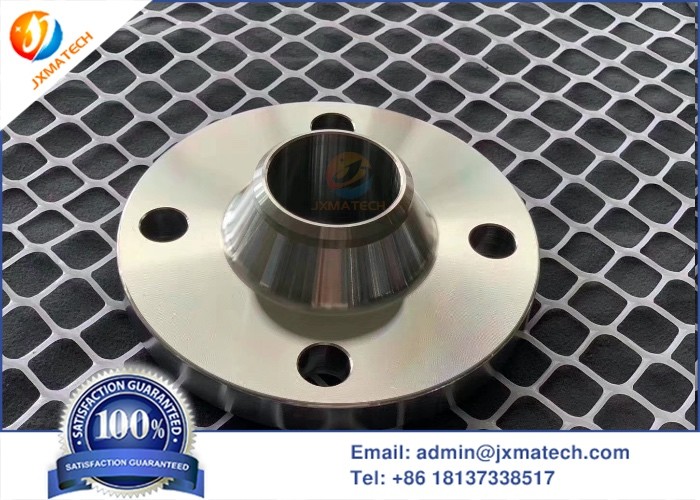

Hastelloy Welding neck flanges (WN FLANGES) ,Hastelloy Slip-on flanges (SO FLANGES), Hastelloy Plate flanges (PL FLANGES) ,Hastelloy Threaded flanges (THR FLANGES), Hastelloy Lap joint flanges (LJ FLANGES) ,Hastelloy Tongue and groove flanges (T FLANGES/ G FLANGES) , Hastelloy Blind flanges (BL FLANGES) ,Hastelloy Socket weld flanges (SW FLANGES)
Hastelloy flanges that are provided in ANSI, DIN, JIS, BS and ASME standards
Specifications : ASTM B564 / ASME SB564
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092-1, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2NB TO 60NB
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Grades : Hastelloy C276, C22, C4, C2000, B2, B3, X Flanges
|Plate, sheet and strip||ASTM B575|
|Seamless pipe and tube||ASTM B622|
|Welded pipe||ASTM B619, ASTM B775|
|Welded tube||ASTM B626, ASTM B751|
|Welding fitting||ASTM B366|
|Forged or rolled pipe flange and forged fitting||ASTM B462|
|Billet and bar for reforging||ASTM B472|
Hastelloy grades include the following:
Hastelloy B-2 nickel molybdenum alloy has excellent corrosion resistance in reductive environment, upgraded version of Hastelloy B-3, B-2, and excellent corrosion resistance for hydrochloric acid at any temperature and concentration.
Hastelloy C-4 has good thermal stability and good toughness and corrosion resistance at 650-1040 ℃.
Hastelloy C-22 has better resistance to uniform corrosion in oxidizing medium than C-4 and C-276, and is locally resistant
Excellent corrosion resistance Hastelloy C-276 has good resistance to oxidation and medium reduction corrosion, and excellent stress corrosion resistance. Hastelloy C-2000 is the most comprehensive corrosion-resistant alloy with excellent uniform corrosion resistance in both oxidation and reduction environments.
The upgraded products of Hastelloy G-35 G-30 have better corrosion resistance and thermal stability. Hastelloy G-30 nickel base alloy with high chromium content has excellent performance in phosphoric acid and other strong oxidizing mixed acid medium.
Hastelloy x is characterized by comprehensive high strength, oxidation resistance and easy processing. Each of the above brands has specific chemical composition, mechanical properties and their own advantages. It is impossible to generalize the characteristics of Hastelloy alloy.
Hastelloy alloy is mainly divided into B, C and G series. It is mainly used in iron-based Cr Ni or Cr Ni Mo stainless steel, non-metallic materials and other occasions where strong corrosive media cannot be used.
In order to improve the corrosion resistance, cold and hot working properties of Hastelloy, three major improvements have been made in Hastelloy. The development process is as follows:
Series B: B → B-2 (00ni70mo28) → B-3
C series: C → C-276 (00cr16mo16w4) → C-4 (00cr16mo16) → C-22 (00cr22mo13w3) → C-2000 (00cr20mo16)
G Series: G → G-3 (00cr22ni48mo7cu) → G-30 (00cr30ni48mo7cu)
The most widely used materials are n10665 (b-2), N10276 (C-276), n06022 (C-22), n06455 (C-4) and n06985 (G-3)
