Platinum Sheet Noble Metal Alloys High Purity Used For Indicator Electrode 0.15mm

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Platinum Sheet
Payment & Shipping Terms:
Minimum Order Quantity: 5g
Price: 30~150USD/g
Packaging Details: Carton case
Delivery Time: 5~15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000kgs/M

Detail Information

Material: Pure Platinum 99.95%, 99.99% ,99.9995% Purity: 99.95%, 99.99% ,99.9995%
Surface: Bright Density: 21.45 G/cm³
Melt Point: 1772°C Process: Rolling
High Light:

platinum sheet electrode


silver palladium alloy

Product Description

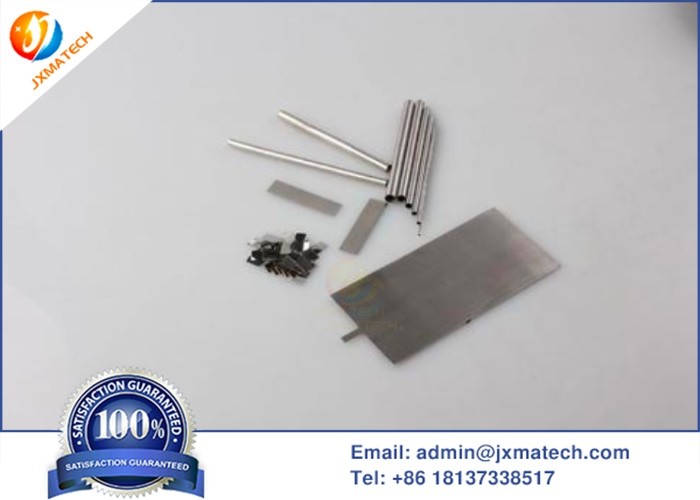

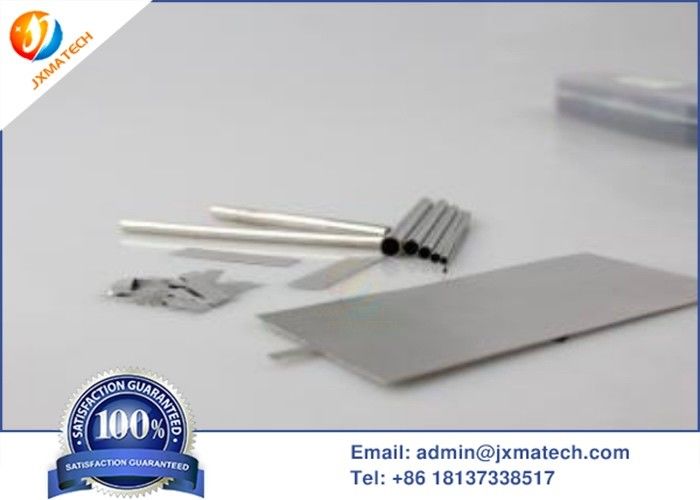

Platinum Sheet Purity 99.95%~99.9995% used for Indicator electrode 0.15mm


Brief introduction of platinum electrode

1. Product Name: Platinum Sheet Electrode

2. Product model: pt213 ~ pt262;

3. Product type: platinum sheet electrode;

4. Product features: electrode size can be made according to customer requirements;

5. Inner core material: platinum; outer shell material: polytetrafluoroethylene;

6. Platinum Purity: over 99.99%;

7. Main uses of platinum electrode: platinum electrode is an indicator electrode for measuring the redox potential. After matching with tungsten electrode or calomel electrode, it can be titrated at the potential reflected by redox. The electrode end is made of platinum, an inert precious metal. It is an indispensable indicator electrode in the determination of redox potential, potentiometric titration and polarography. It is also an important original electrode of chemically modified electrode. It is widely used in water quality monitoring, environmental ecology, soil sediment, metal corrosion research and chemical industry.

1. Characteristics of 8213 platinum sheet electrode: 213 platinum sheet electrode is sealed in glass tube with bright platinum sheet, on which there are outgoing terminals. The exposed area of platinum sheet is about 2 × 6 mm, and the total length of electrode is 140 mm.

8. Remarks: the following are customized platinum sheet electrodes, etc

a) Platinum electrode (large area platinum electrode)

b) Platinum sheet 10 * 10 * 0.15mm

c) Platinum sheet 10 * 20 * 0.15mm

d) Platinum sheet 10 * 30 * 0.15mm

e) Platinum sheet 20 * 20 * 0.15mm


Gold alloy (AU), silver alloy (Ag), platinum alloy (PT), palladium alloy (PD), rhodium alloy (RH), iridium alloy (IR) and other conventional brush wire materials of various specifications and properties.

In order to improve the product cost performance of the customer's slide ring system, our company has launched a series of precious metal composite brush wire products. The composite brush wire has high conductivity, good thermal conductivity, high melting point, small resistance temperature coefficient; it has the characteristics of oxidation resistance, vulcanization resistance, corrosion resistance gas, etc.; it has the advantages of adjustable hardness, high elasticity, wear resistance, etc.; it has good fusion welding performance, arc corrosion resistance and burn resistance. On the premise of meeting the requirements of customers, the purchasing cost of raw materials of customers can be greatly reduced, and the cost of wire brushing materials can be saved by 30% - 70%


Platinum can be used in automotive catalytic converters, jewelry, including investment, electrodes, anticancer drugs, oxygen sensors, spark plugs and turbo engines.


Platinum Pt (99.95%, 99.99% ,99.9995% max purity)
Pt-Ir (Certain tube dimensions are not possible to fabricate)
Pt-Au-Rh etc





resistance ratio


temperature coefficient of resistance α Application Standard
Pt1 0.02~1.00 ≥1.39254   standard platinum resistance thermometer
Pt2 0.02~1.00   0.003850±0.000004 Grade A allowance platinum resistance thermometer
Pt3 0.02~1.00   0.003850±0.000010 Grade B allowance platinum resistance thermometer
Pt4 ≥0.30~1.00   ≥0.003920 Standard The industrial platinum resistance thermometer,S,R type cathod
Pt5 ≥0.03~1.00   ≥0.003840 The industrial platinum resistance thermometer
