ASME E1114 Diameter 0.45mm 22.56g/cm3 1493MPa Iridium Wire

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Iridium Wire
Payment & Shipping Terms:
Minimum Order Quantity: 5grams
Packaging Details: Carton case
Delivery Time: 5~15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000kgs/M

Detail Information

Material: Pure Iridium Density: 22.56g/cm3
Surface: Drawing Surface Or Polished Tensile Strength: 1493 MPa
Dia,: 0.15mm/0.3mm/0.5mm/0.8mm/1.0mm Purity: 99.95% Min
High Light:

1493MPa Iridium Wire


ASME E1114 Iridium Wire


0.45mm Iridium cable

Product Description

Hot Selling High Quality Iridium Wire Price Made in China

 Iridium Wire is a thin wire-like iridium metal. The resistivity of the iridium wire is 6.03×10-2Ωmm2/m, the tensile strength is 1493MPa, and the elongation is 10%-20%. The iridium wire can be used as high-temperature oxidation-resistant thermocouple material and filament material.Iridium wire is the most corrosion-resistant wire known and is often used for the manufacture and repair of filaments and heaters and electrical applications.Iridium wire diameter 0.1mm, 0.15mm ,0.3mm , 0.5mm, 1.0mm mainly used in sparking, sensor , aircraft, chemical, crystal, machinery and lighting electrode material etc


Diameter: approx. 0.45mm

Length: approx. 10mm

Purity: LR ≥99.95%

Silver white metallic luster.

Highly stable chemical properties.

Good tensile performance.

Hardness (HV): 460

 Standard: ISO9001:2008, ASME E1114

Packaging: plastic spool/reel packing

 Application Field: lighting industries, space Industries, electronics

 MOQ: 10 grams

Item Platinum/Iridium - Wire(Pt90/Ir10) Function Medical research and lab.
Melting point 1800 Hardness - Brinell 130-190
Tensile strength 380-620 Density 21.56
Thermal Conductivity 0.716 W/cm/K 298.2 K Electrical Resistivity 10.6 microhm-cm 20°C

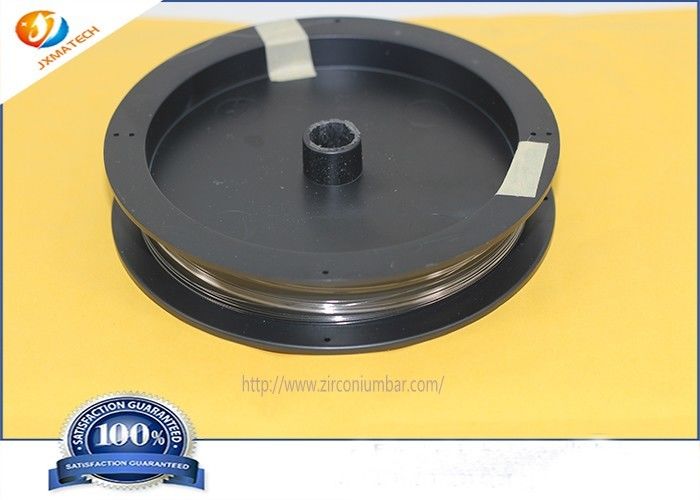

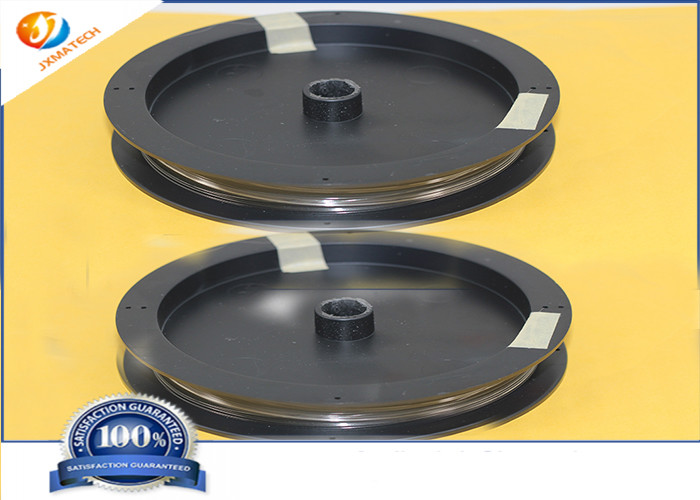

Iridium Wire Picture:

'ASME E1114 Diameter 0.45mm 22.56g/cm3 1493MPa Iridium Wire 0ASME E1114 Diameter 0.45mm 22.56g/cm3 1493MPa Iridium Wire 1
