Polished 0.15mm 1493MPa 22.56g/Cm3 Platinum Iridium Wire

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Platinum Iridium Wire Manufacturer
Payment & Shipping Terms:
Minimum Order Quantity: 5grams
Packaging Details: Carton case
Delivery Time: 5~15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000kgs/M

Detail Information

Material: Platinum Iridium Wire Manufacturer Density: 22.56g/cm3
Surface: Drawing Surface Or Polished Tensile Strength: 1493 MPa
Dia,: 0.15mm/0.3mm/0.5mm/0.8mm/1.0mm Purity: 99.95% Min
High Light:

22.56g/Cm3 Platinum Iridium Wire


1493MPa Platinum Iridium Wire


0.15mm Iridium Wire

Product Description

Platinum Iridium Wire Manufacturer


The Platinum Iridium Wire  has been used in "non-standard" thermocouples, electrical contacts and for electrodes in medical research. The alloy is harder and mechanically stronger than Platinum.

Platinum Iridium Wire Applications

Owing to its high resistance to corrosion and good ductility, Platinum Iridium Wire has seen numerous applications in the field of electrical contact. The high hardness and low contact resistance of the 10 and 20 percent iridium alloys make them particularly suitable for low current, low-pressure applications where dust contamination prejudices the performance of softer materials.

Platinum-iridium alloys are commonly used as electrodes for pacemakers and defibrillators, catheters and stents. 90% platinum – 10% iridium or 80% platinum – 20% iridium alloys are ideal for these applications.

We also provide 75% platinum – 25% iridium and 70% platinum – 30% iridium for manufactures of springs and brain coils for implant applications.

Grade Impurities % max
Pt Pd Rh Zr Ru Au Ag Al Bi Cr Cu
>99.98% 0.0005 0.0005 0.001 0.0002 0.0005 0.0005 0.0005 0.0005 0.0005 0.00053
Zn Fe Ni Pb Mg Mn Sn Mo Si Sb Ca
0.001 0.00095 0.0005 0.0005 0.0005 0.0005 0.00056 0.001 0.001 0.002 0.003

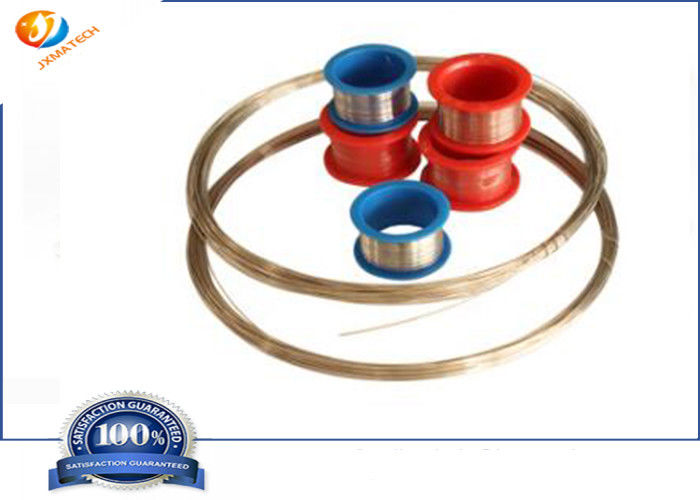

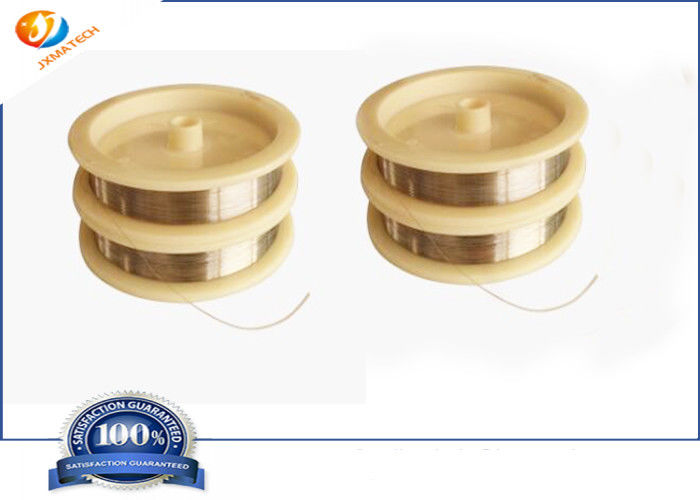

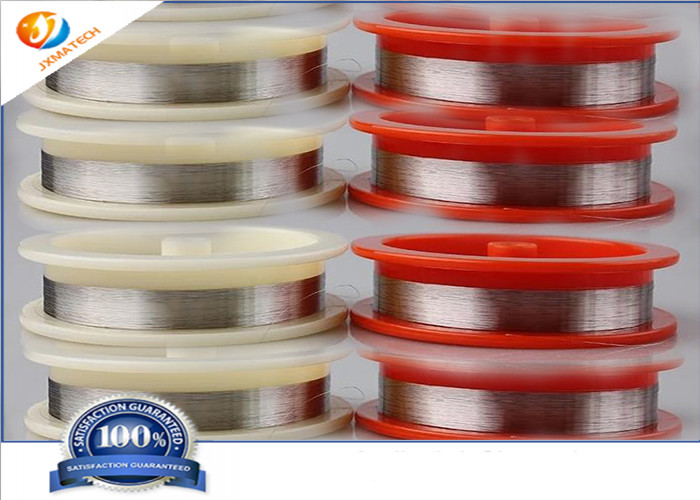

Platinum Iridium Wire Picture;

Polished 0.15mm 1493MPa 22.56g/Cm3 Platinum Iridium Wire 0




'Polished 0.15mm 1493MPa 22.56g/Cm3 Platinum Iridium Wire 1Polished 0.15mm 1493MPa 22.56g/Cm3 Platinum Iridium Wire 2
