Oxygen Sensor Forging Zr1 Welded Annealed Zirconium Pipe

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Zirconium Pipe Seamless Zr702
Payment & Shipping Terms:
Minimum Order Quantity: 50kgs
Packaging Details: Plywood case
Delivery Time: 25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000kgs/M

Detail Information

Material: Zirconium, Zr-0,Zr-1,Zr-2,Zr-3,Zr-4,Zr-5,R60702, R60704, R60705 Surface: Pickled Or Polished Surface
Shape:: Tube Pipe Application: Industrial,nuclear Reaction
Finishes Designate:: Seamless, Welded,Annealed Name: Zirconium 702 Alloy Tubes
Inspection: Eddy-Current And Ultrasonic Testing Purity:: 99.6%
High Light:

Welded Annealed Zirconium Pipe

,

Zr1 Zirconium Pipe

,

Oxygen Sensor Zirconium Pipe

Product Description

Zirconium pipe price

1. Product name: Zirconium Tubes for Oxygen sensor

2. Brand name: R60702, Zr1

3. Surface: bright

4. Purity: ≥99.6%

5. Density: 6.51g /cm3

6. Melting point: 1852℃

7. specifications: according to customer requirements customized production.

8. Production process: forging, rolling.

9. Application: mainly used in atomic energy industry, high temperature and high pressure as corrosion resistant chemical materials.

10. Packing method: packed in wooden cases with plastic baffles, with attachments such as material certificate and packing list, the weight of each case shall not exceed 100kg.

11. Delivery method: express or logistics (negotiable)

12. Late service: in case of quality problems within the warranty period, the supplier shall assume all responsibilities (within the normal range of use).




Grade

Element composition(%)<


Zr+Hf

Hf

Fe+Cr

Sn

H

N

C

Nb

O


R60702

99.2

4.5

0.20

--

0.005

0.025

0.05

--

0.16

R60703

98

4.5

--

--

--0.005

0.025

--

--

--

R60704

97.5

4.5

0.20~0.40

1.0~2.0

0.005

0.025

0.05

--

0.18

R60705

95.5

4.5

0.2

--

0.005

0.025

0.05

2.0~3.0

0.18

R60706

95.5

4.5

0.2

--

0.005

0.025

0.05

2.0~3.0

0.18

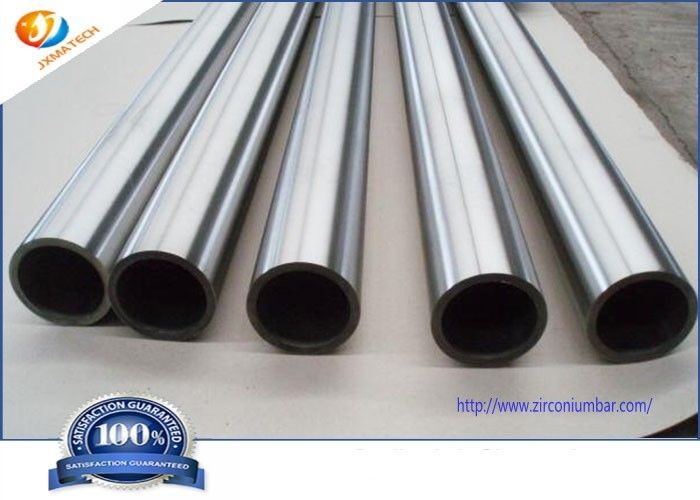

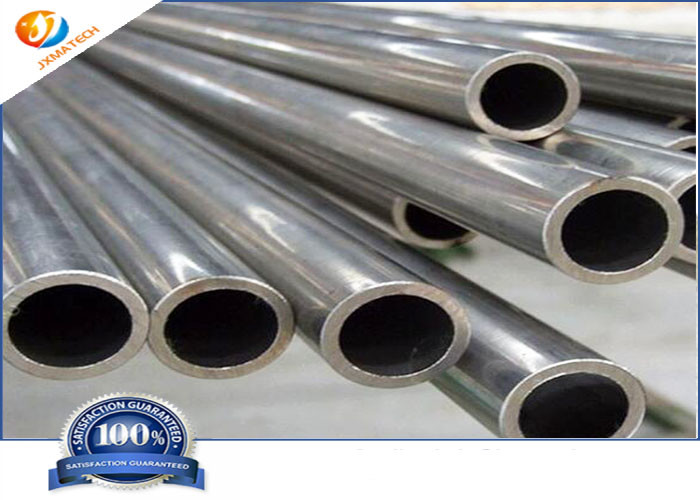

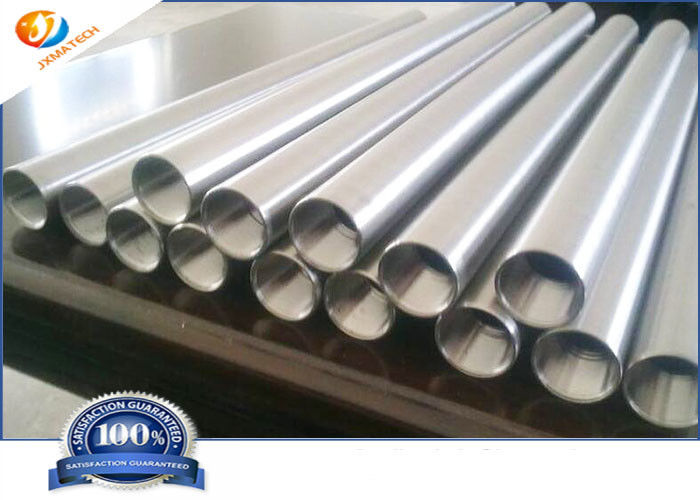

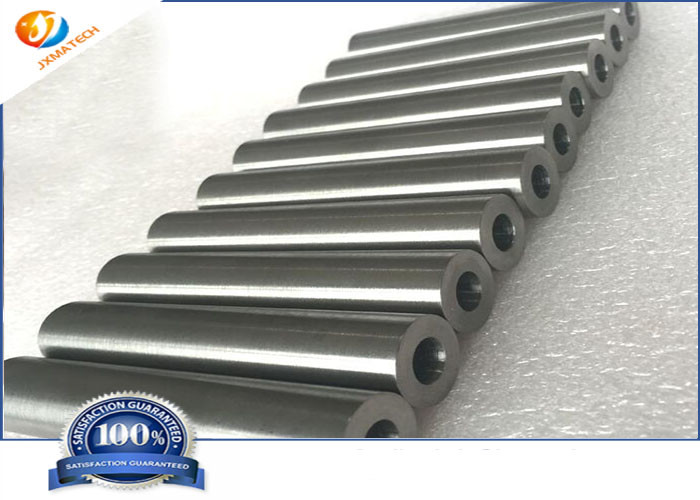

Zirconium pipe Picture:

Oxygen Sensor Forging Zr1 Welded Annealed Zirconium Pipe 0Oxygen Sensor Forging Zr1 Welded Annealed Zirconium Pipe 1

Oxygen Sensor Forging Zr1 Welded Annealed Zirconium Pipe 2
