High Conductivity Molybdenum Copper Alloy For Heat Sink

Product Details:
Place of Origin: China
Brand Name: JINXING
Certification: ISO 9001
Model Number: Molybdenum Copper Alloy
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Packaging Details: Plywood Case
Delivery Time: 10~25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M

Detail Information

Material: Molybdenum Copper Alloy Standard: ASTM, AMS
Size: Customized Type: MoCu15~MoCu50
Surface: Mirror Bright Density: 9.54~10g/cm3
High Light:

High Conductivity Molybdenum Copper Alloy


Heat Sink Molybdenum Copper Alloy


ASTM Molybdenum Copper Alloy

Product Description

High Conductivity Molybdenum Copper Alloy Sheet for Heat Sink

MoCu alloy is a kind of pseudo-alloy that is composed of Molybdenum and Copper. It consists of Molybdenum and Copper's characteristics, having high thermal conductivity, low thermal expansion coefficient, non-magnetic, low gas content, ideal vacuum performance, good machinability, special high-temperature performance.


Commodity Name Molybdenum Copper Alloy Sheet
Grade Mo85Cu15, Mo80Cu20, Mo70Cu30, Mo60Cu40, Mo50Cu50
Density 9.54-10g/cc
Property High strength, good thermal and electrical conductivity, good high temperature resistance etc.
Specification 114x114x2.5mm
Production technique Powder Metallurgy
Related products Rod, sheet, plate, disk
Usage Vaccum contact, heat sink, Optoelectronic packages, Microwave packages, laser packages etc.

Application of Molybdenum Copper Alloy Sheet

· Heat Sinks and Spreaders

· Microwave Carriers

· Microelectronic Package Bases and Housings

· Ceramic Substrate Carriers

· Laser Diode Mounts

· Surface Mount Package Conductors

· Microprocessor Lids


  • Molybdenum Copper Wafer substrate

  • Molybdenum Copper Heat sink

  • Molybdenum Copper Rod

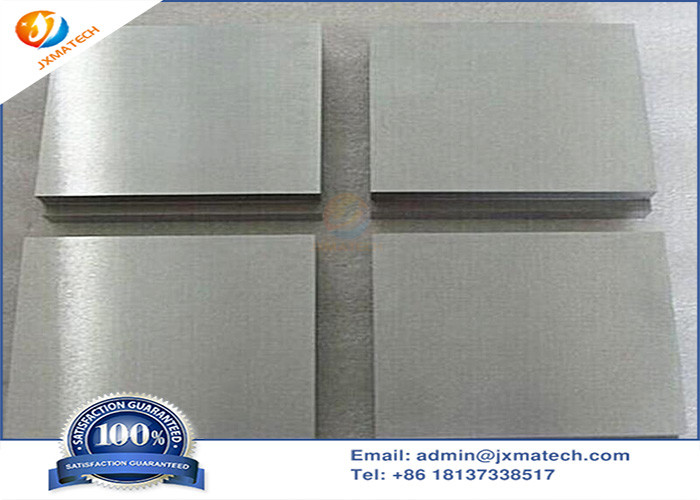

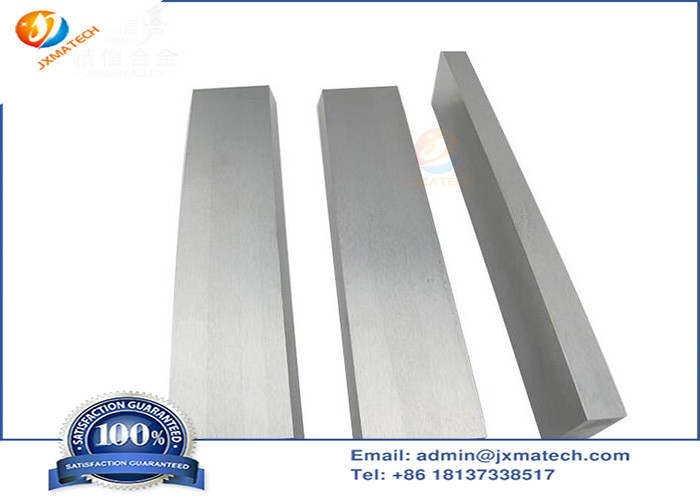

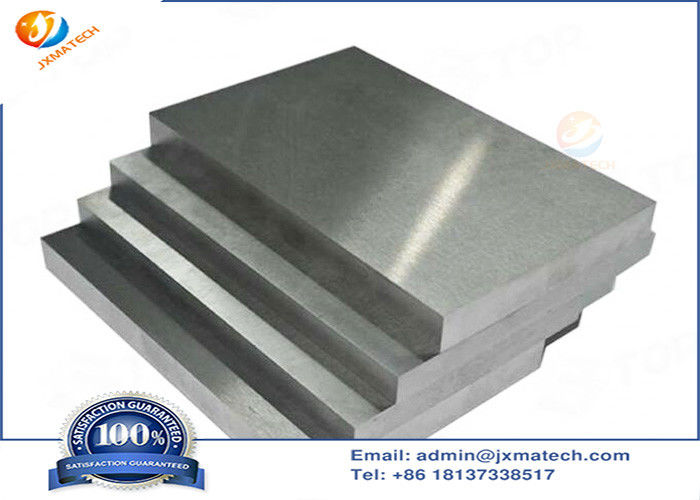

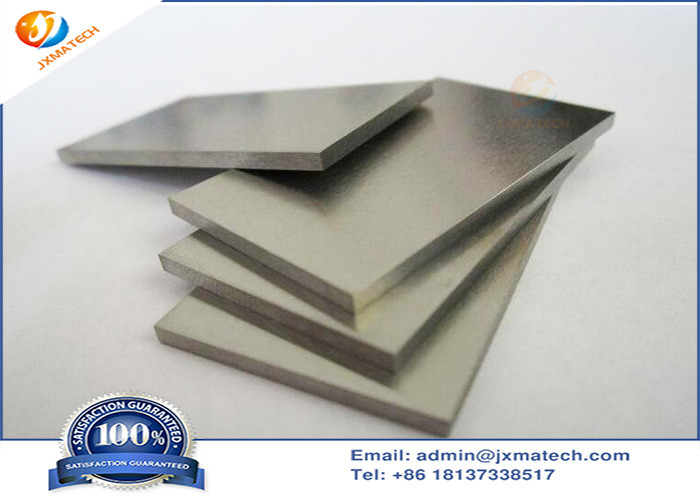

  • Molybdenum Copper Alloy Sheet Picture:
