Experimental Electrode Platinum Iridium Wire 1493MPa

Product Details:
Place of Origin: CHINA
Brand Name: JINXING
Certification: ISO 9001
Model Number: Iridium Wire
Payment & Shipping Terms:
Minimum Order Quantity: 5grams
Packaging Details: Carton case
Delivery Time: 5~15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000kgs/M

Detail Information

Material: Pure Iridium Density: 22.56g/cm3
Surface: Drawing Surface Or Polished Tensile Strength: 1493 MPa
Dia,: 0.15mm/0.3mm/0.5mm/0.8mm/1.0mm Purity: 99.95% Min
High Light:

Electrode Platinum Iridium Wire

,

Experimental Platinum Iridium Wire

,

1493MPa Platinum Iridium Wire

Product Description

Platinum Iridium Wire, Platinum Iridium Alloy Wire, Platinum 90% Iridium 10%, Experimental Electrode Material.

Advanced Refractory Metals is a leading supplier of iridium products. We offer competitive pricing and great lead times on all our materials, and we're capable of supplying custom materials per any specs/drawings you provide us with.

iridium wire and iridium rod in multiple diameters and custom manufacturing is available.

Platinum Iridium Alloy Wire Description

The alloy has been used in "nonstandard" thermocouples, electrical contacts and for electrodes in medical research. The alloy is harder and mechanically stronger than Platinum.

This wire features a 90% Platinum and 10% Iridium composition and is widely used in the assembly of microelectrode probes. Iridium, a Platinum group metal, is very dense and hard, imparting added strength to the wire.

Diameter :0.3mm

Length: 3000mm

Technical Data for Platinum/Iridium wire

Electrical Properties

Electrical resistivity ( µOhmcm ): 25

Temperature coefficient ( K-1 ): 0.0013

Mechanical Properties

Elongation at break ( % ) <25

Hardness - Brinell 130-190

Tensile strength ( MPa )380-620

Physical Properties

Density ( g cm-3 )21.56

Melting point ( C )1800

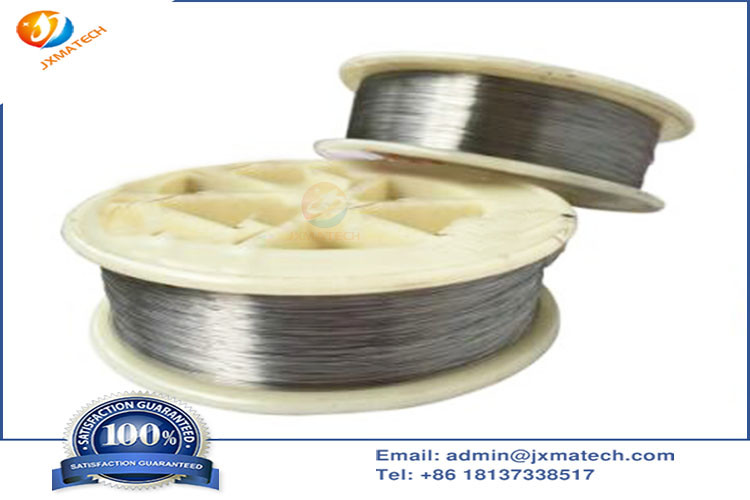

Platinum Iridium Alloy Wire Picture:

'Experimental Electrode Platinum Iridium Wire 1493MPa 0Experimental Electrode Platinum Iridium Wire 1493MPa 1
